Buy TRU COMPONENTS 701880 GQ16F-10E/J/G/12V Tamper-proof pushbutton 48 V DC 2 A 1 x Off/(On) momentary Green IP65 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

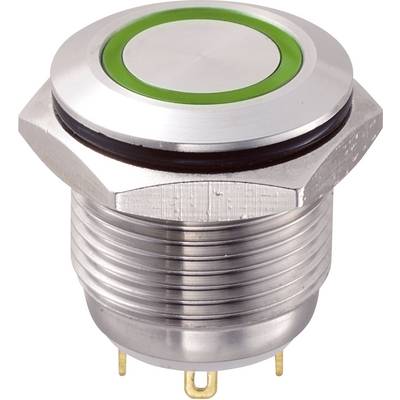

Round switch with green ring on silver casing, suitable for mounting in electrical devices, top view.

Round switch with green ring on silver casing, suitable for mounting in electrical devices, top view.

Technical drawing of a switch with LED contacts. Top: Top view and side view with dimensions. Bottom: Contact colours marked.

1/2

TRU COMPONENTS

Product type

Tamper-proof pushbutton

Lighting type

Circular lighting

Switch position

1 x Off/(On)

Contact type

1 maker

Connection

Soldering

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

646 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9.06 / piece)

€ 14.99

-40 %

€ 9.06

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS 701880 GQ16F-10E/J/G/12V Tamper-proof pushbutton 48 V DC 2 A 1 x Off/(On) momentary Green IP65 1 pc(s)

IP65 protection

Our service for you

Technical specifications

Product type: Tamper-proof pushbutton

Switch/button features: Planar

Casing/button colour: Stainless steel

Functions: momentary

Lighting type: Circular lighting

Colour: Green

Bulb type: LED (monochrome)

Key type: Flush

Switch position: 1 x Off/(On)

Contact type: 1 maker

Material: Stainless steel

Contact material: Silver alloy

Connection: Soldering

Switching voltage: 48 V DC

Switching current (max.): 2 A

Forward current I(F): 20 mA

Min. temperature: -20 °C

Forward voltage U(F): 2.8 V

Max. temperature: +55 °C

Recess diameter: 16 mm

: IP65

Content: 1 pc(s)

RoHS-compliant: Yes

Board thickness (max.): 10 mm

Type: GQ16F-10E/J/G/12V

Material (details): Stainless steel

Recess diameter (details): 16 mm

Switch contact: Silver alloy

Switching current: 2 A

Type: GQ16F-10E/J/G/12V

Connection: Soldering pins

Temperature range: -20 - +55 °C

Documents & Downloads

Datasheet

Datasheet 701880 TRU COMPONENTS 701880 GQ16F-10E/J/G/12V Tamper-proof pushbutton 48 V DC 2 A 1 x Off/(On) momentary Green IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 701880 TRU COMPONENTS 701880 GQ16F-10E/J/G/12V Tamper-proof pushbutton 48 V DC 2 A 1 x Off/(On) momentary Green IP65 1 pc(s)

Scope of delivery

Button
Gasket
Resistor for 12 V
This text is machine translated.

Hints

2 years warranty.

Description

Scope of delivery

Button
Gasket
Resistor for 12 V
This text is machine translated.

Hints

2 years warranty.
