Buy TRU COMPONENTS Car blade-type fuse holder Blade-type fuse (standard) 30 A 3.31 mm² 1 pc(s)

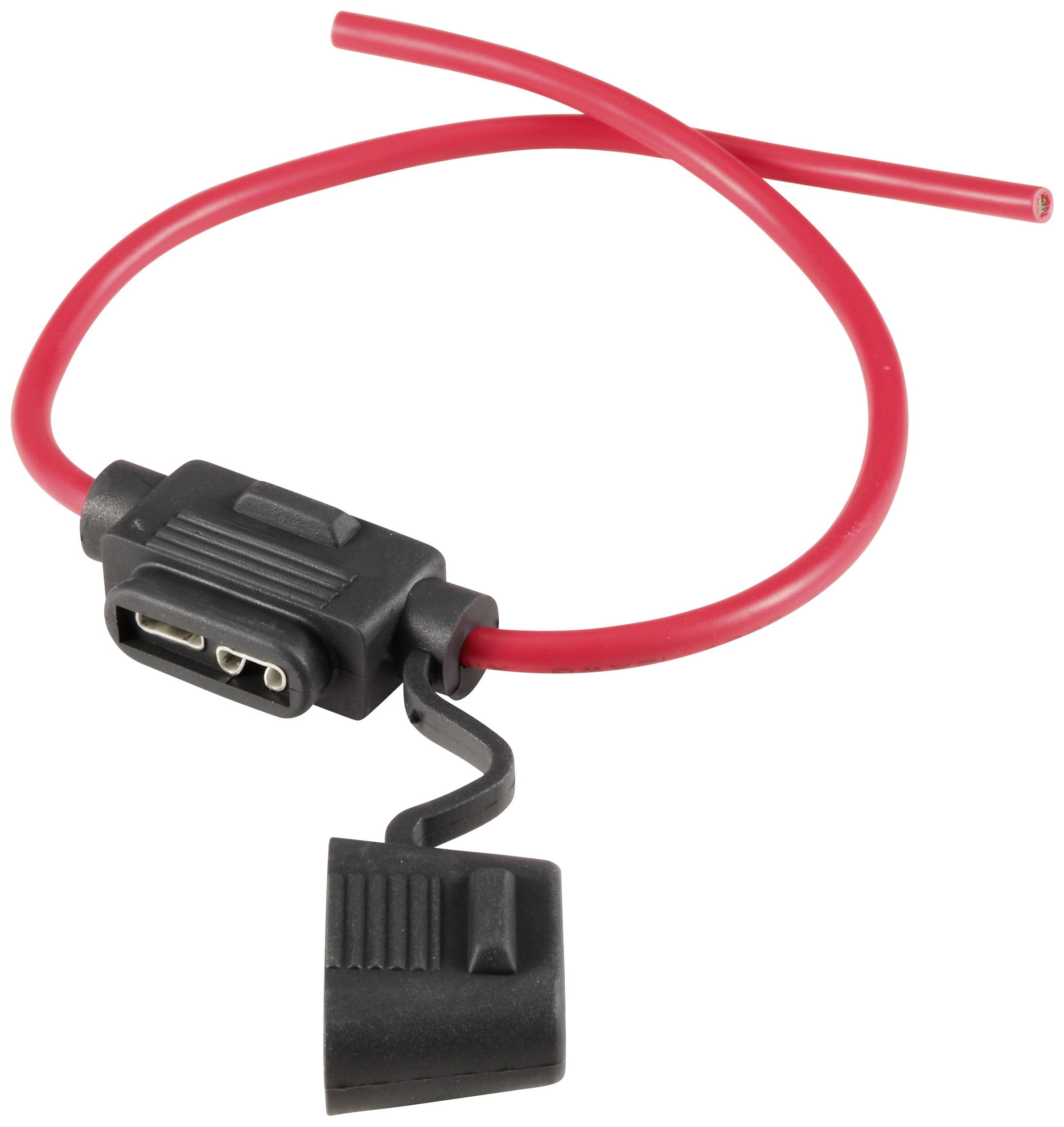

Black connector housing with red cable and plastic cap. Suitable for electrical connections in vehicles or devices.

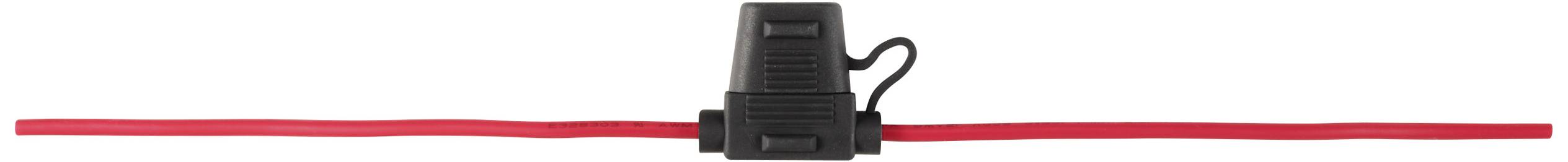

A black central protection cover with a mounting bracket on a red wire. The cover has grooves and is connected at a right angle to the wire.

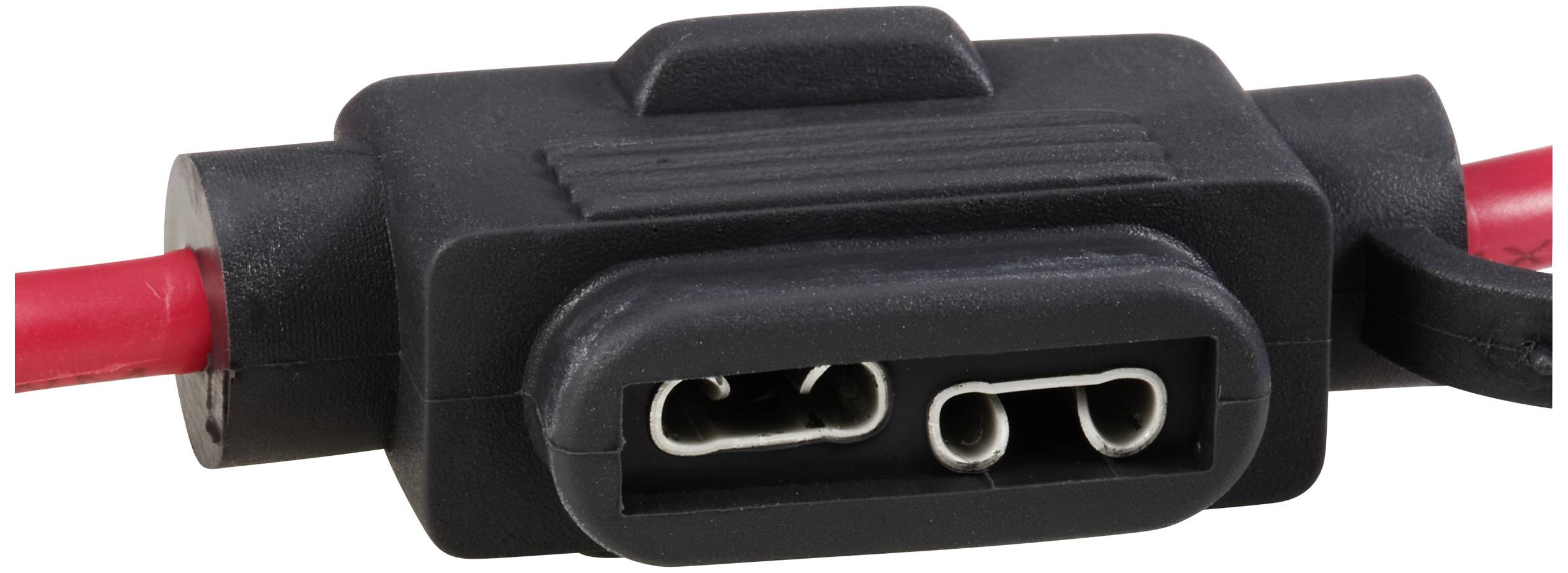

Black electrical connector with two metallic contacts, connected to a red cable, close-up.

1/3

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

1553 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€ 4.61

plus VAT.

Report legal concerns

Highlights & Details

TRU In Line Fuse Holder - For ATP Fuse, Rubber TPV

Suitable for ATP fuse
IP67 waterproof rating
UL94 V-0 flammability rating
Cable length: 12AWG UL1015 150 mm x2 red

Technical specifications

Rated current: 30 A Max
Nominal current: 30 A Max
nominal voltage: 32 VDC
max. cross section: 12AWG(3.31 mm2)
Mounting type: Panel mount, Inline or wire mount
Number of inputs: 1
Number of outputs: 1

Nominal current: 30 A

Nominal current - rounded value: 30 A

Dim: (L x W x H) 40 x 20 x 11 mm

Height: 11 mm

Length: 40 mm

Width: 20 mm

Suitable for: Blade-type fuse (standard)

Mounting type: In-line
Panel-fit
Wire

Nominal voltage: 32 V DC

max. cross section: 3.31 mm²

No. of inputs: 1 x

No. of outputs: 1 x

Plastic free packaging: Plastic-free packaging

Product type: Car blade-type fuse holder

Documents & Downloads

Datasheet

Datasheet 3208867 TRU COMPONENTS Car blade-type fuse holder Blade-type fuse (standard) 30 A 3.31 mm² 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3208867 TRU COMPONENTS Car blade-type fuse holder Blade-type fuse (standard) 30 A 3.31 mm² 1 pc(s)

Description

inLine fuse holder for ATP-fuses
Suitable for car electric, motor cycles, recreational boats and other low-voltage applications.
Excellent elasticity, ideal solution when flexibility and resilience are required

This text is machine translated.

Features

In-line fuse holder for ATP type fuse
Suitable for automotive electrical systems, motorcycles, marine and other low-voltage applications.
Excellent elasticity, ideal for applications requiring flexibility and resilience
