Name: TRU COMPONENTS LAS1-AGQ-11/S Pushbutton switch 250 V AC 3 A 1 x On/(On) momentary IP65 1 pc(s)
Brand: TRU COMPONENTS
SKU: 1272979
Availability: InStock

A round, chrome-plated push button with a metal casing and connections for electronic circuits.

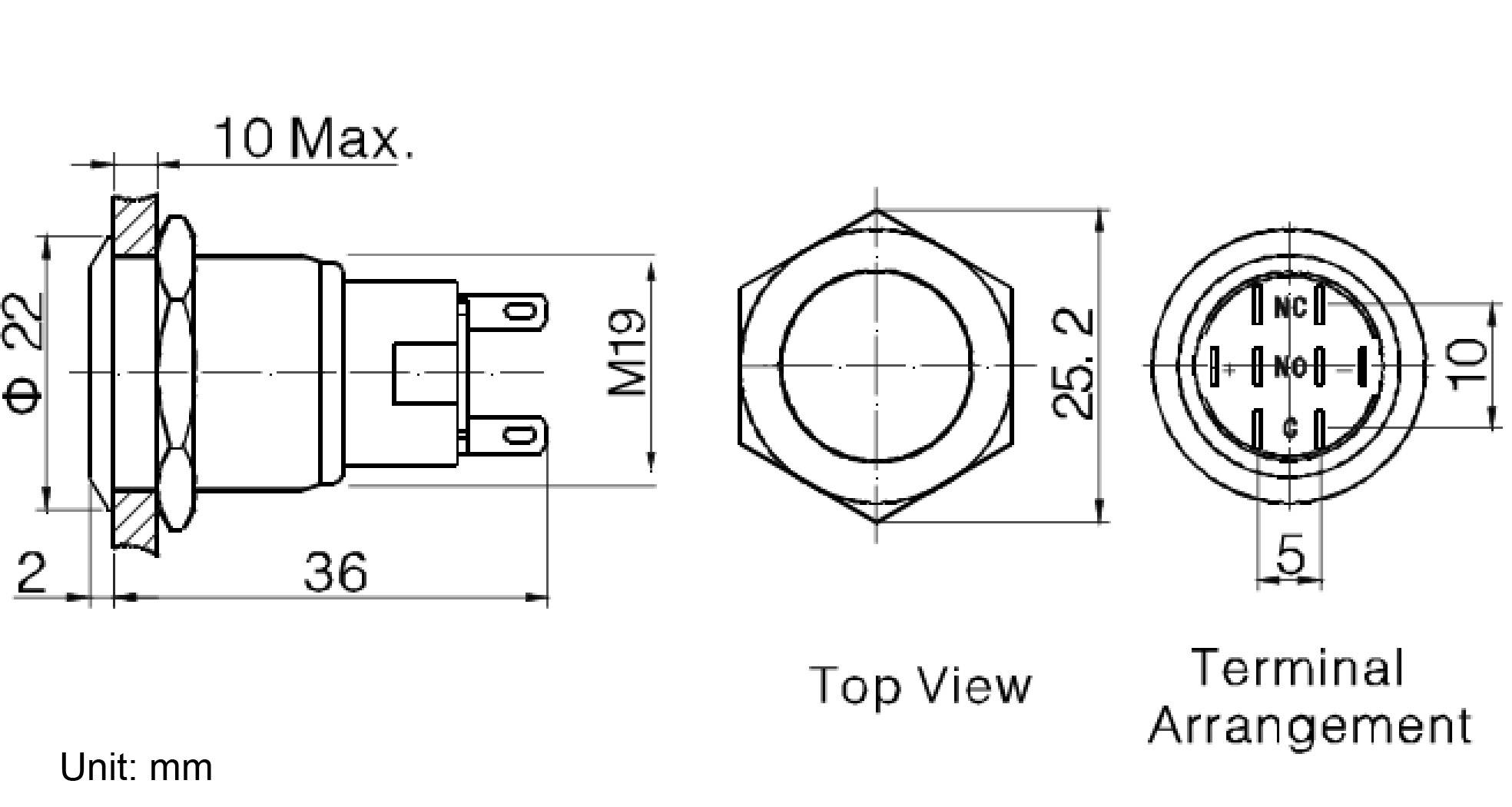

Diagram of an electrical switch: left side view with dimensions, top view from above, right connection arrangement (NO, NC, C). Unit of measurement mm.

1/2

Image similar

Product type

Pushbutton switch

Lighting type

None

Switch position

1 x On/(On)

Contact type

1 breaker

1 maker

Connection

Type C CEE 7/16 plug 2.8 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

464 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.09 / piece)

€ 11.09

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Pushbutton switch

Switch/button features: Planar

Casing/button colour: Steel

Functions: momentary

Lighting type: None

Switch position: 1 x On/(On)

Print motif: None

Contact type: 1 breaker
1 maker

Material: Steel

Connection: Type C CEE 7/16 plug 2.8 mm

Switching voltage: 250 V AC

Switching current (max.): 3 A

Min. temperature: -20 °C

Shape: Round

Max. temperature: +55 °C

Button diameter: 22 mm

Durability: 1 000 000 cycles

Recess diameter: 19 mm

Electrical lifespan: 50000 cycles

: IP65

Content: 1 pc(s)

RoHS-compliant: Yes

Board thickness (max.): 10 mm

Type: LAS1-AGQ-11/S

Documents & Downloads

Datasheet

Datasheet 1272979 TRU COMPONENTS LAS1-AGQ-11/S Pushbutton switch 250 V AC 3 A 1 x On/(On) momentary IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1272979 TRU COMPONENTS LAS1-AGQ-11/S Pushbutton switch 250 V AC 3 A 1 x On/(On) momentary IP65 1 pc(s)

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
