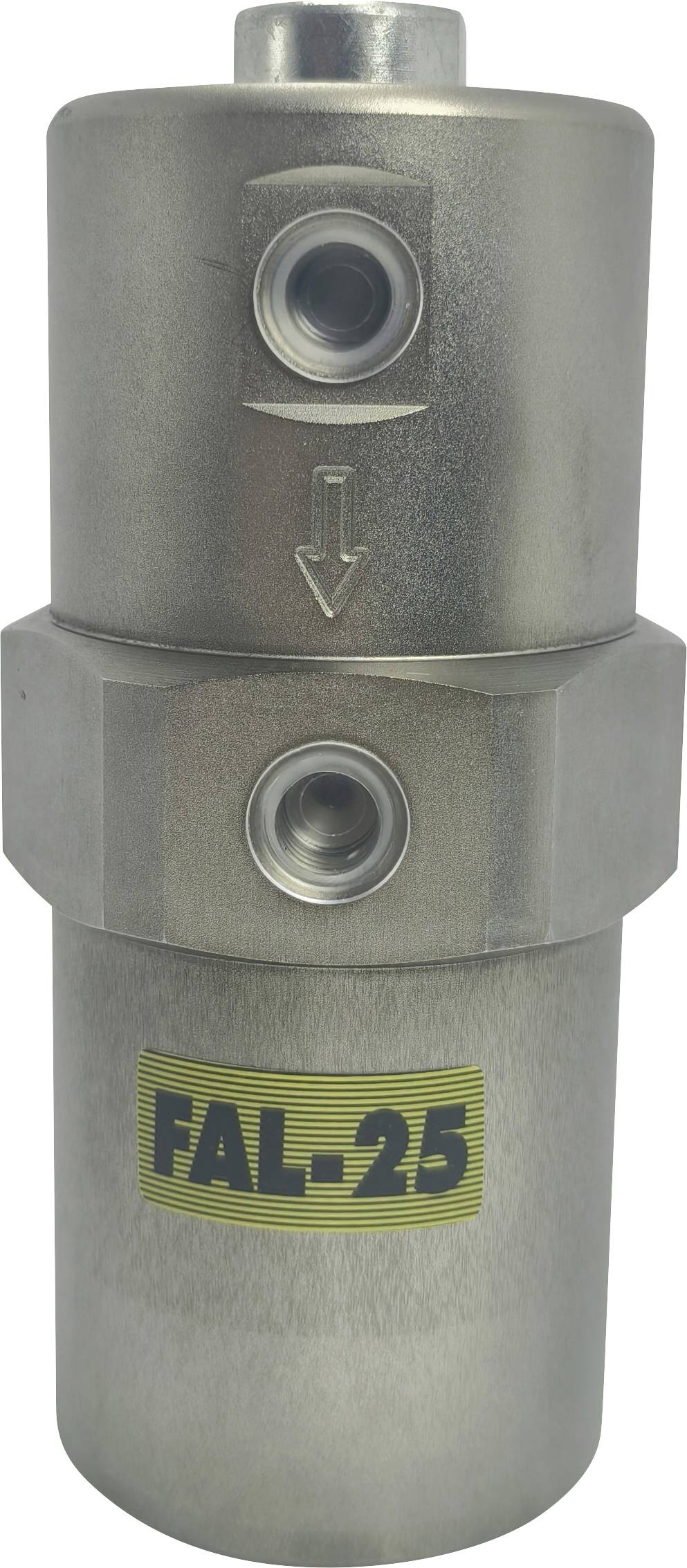

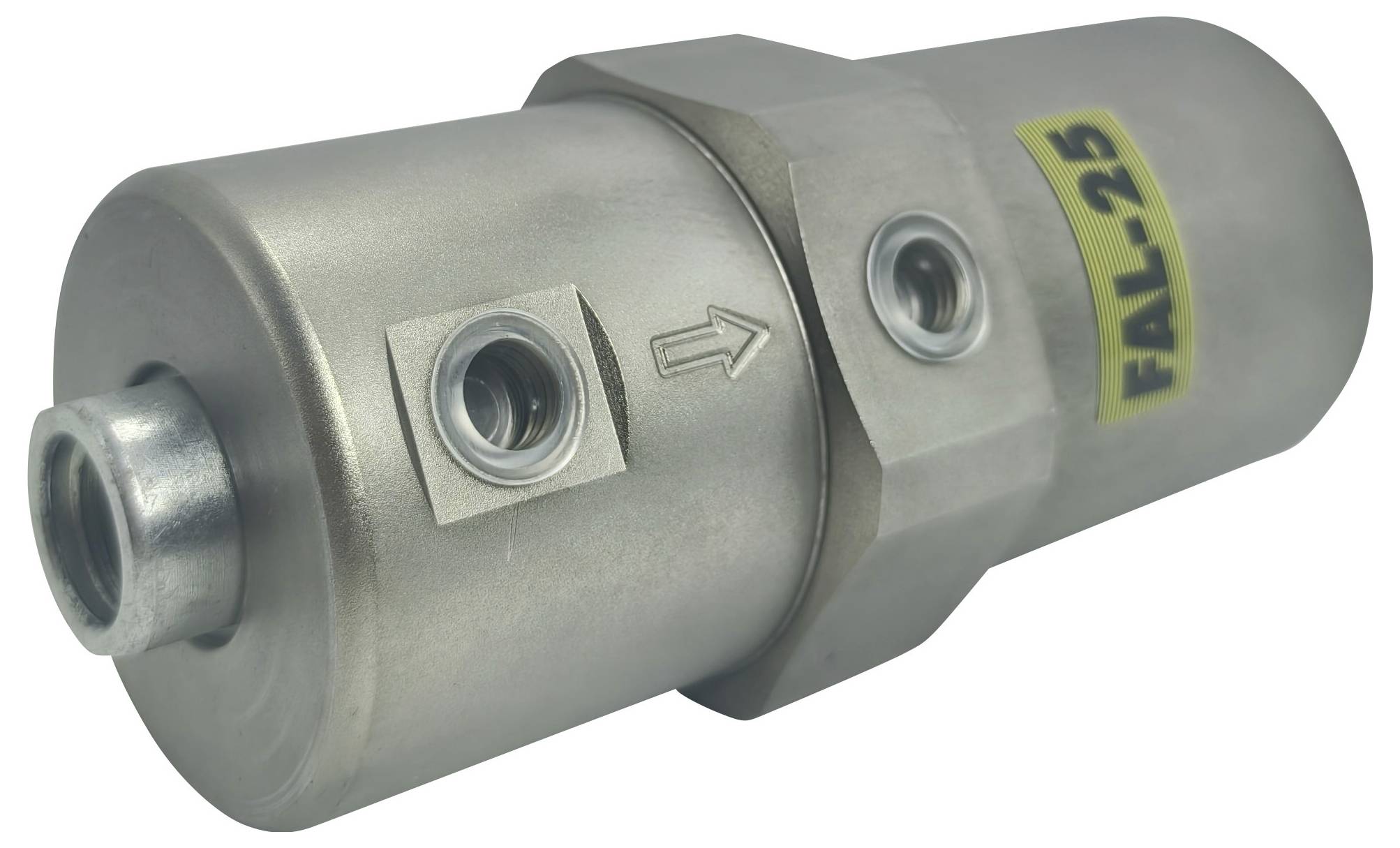

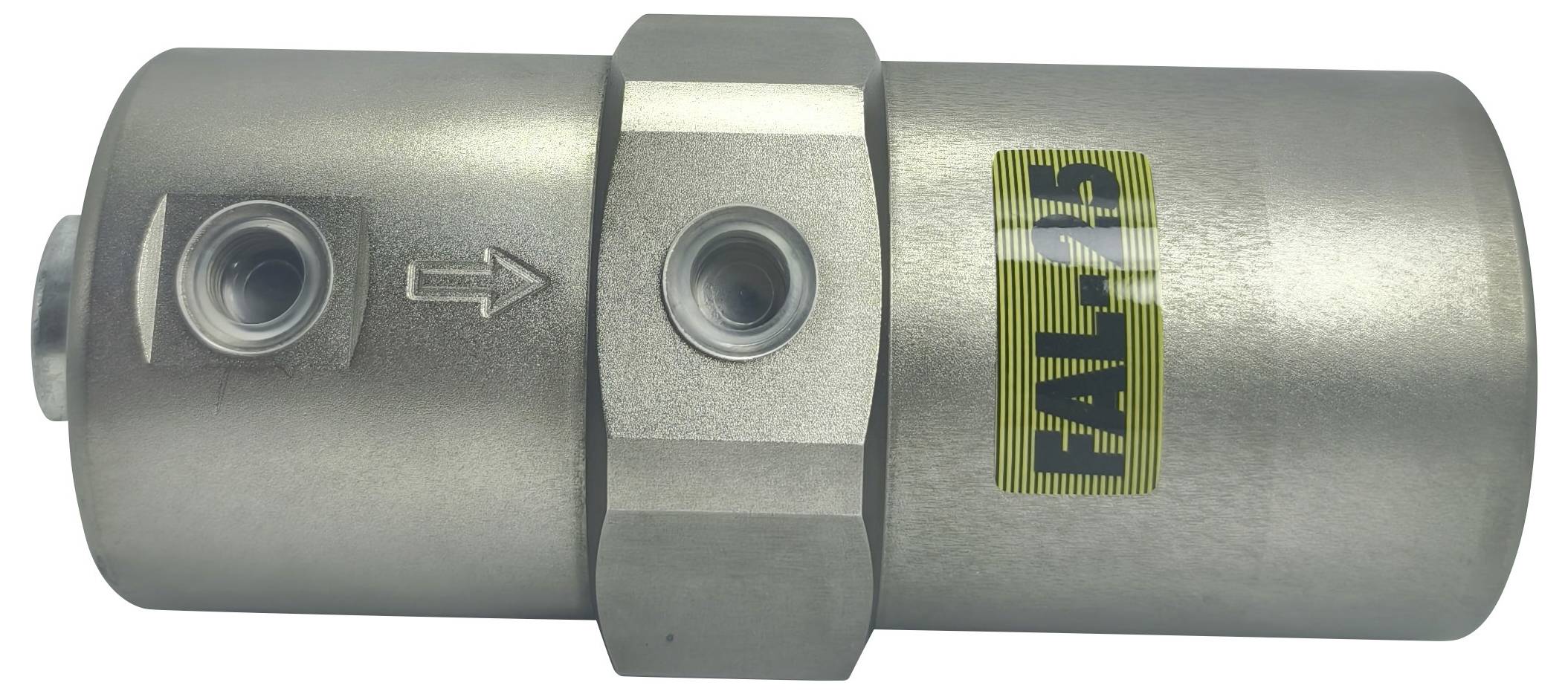

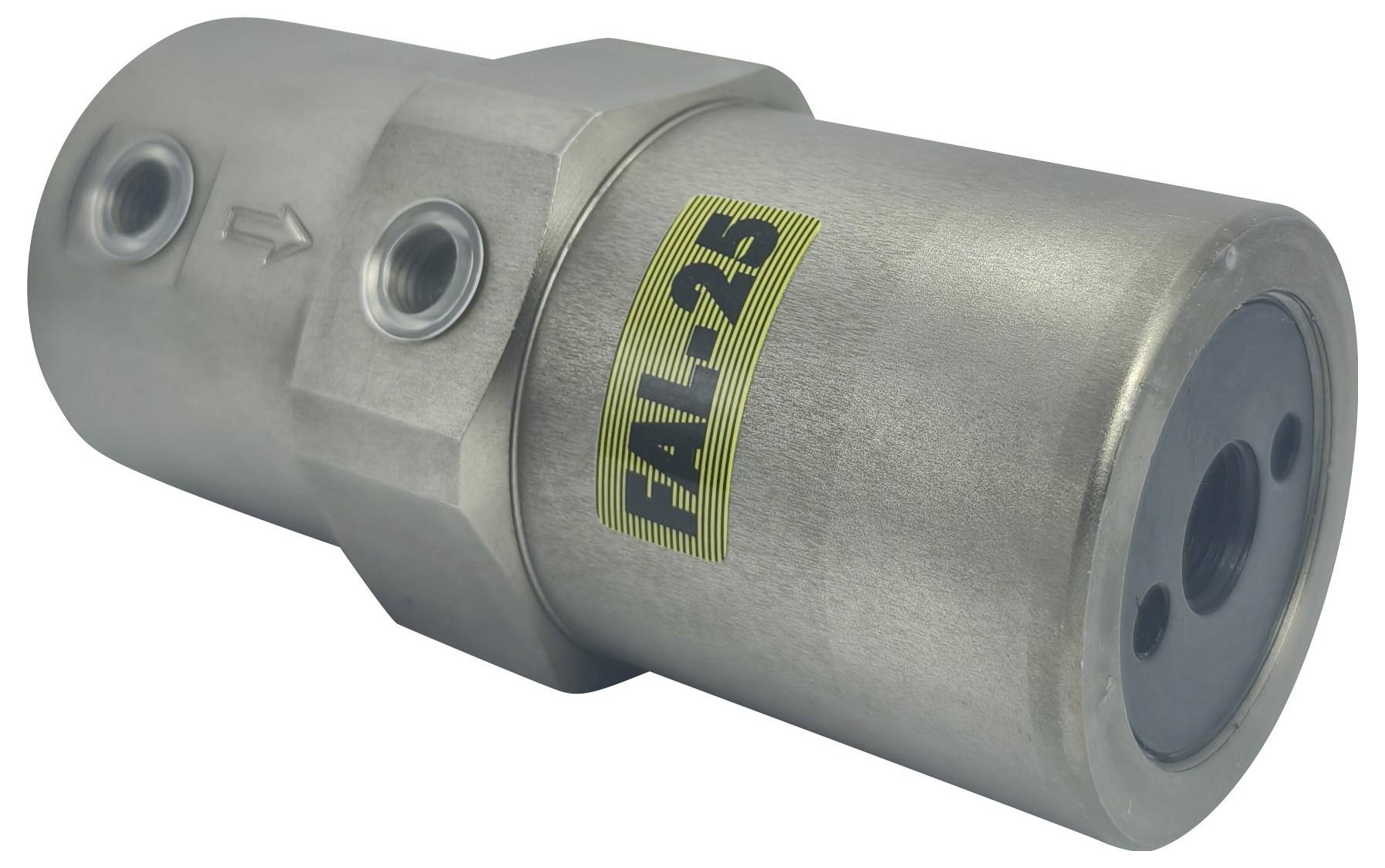

TRU COMPONENTS Linear vibrator TC-13748864 TC-FAL-25 Nominal frequency (at 6 bar): 2020 U/min G 1/4 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14-day return policy included
Technical specifications
- Dimensions: A (Length: 139 mm), C (SW: 65 mm), D (Thread: M16), E (G thread: G1/4), F (G thread: G1/4)
- Air consumed L/min (at 6 bar): 155
- Nominal frequency at 6 bar
2020 U/min
- Centrifugal force at 6 bar
530 N
- Operating temperature
5 up to 50 °C
- Max. operating pressure
6 bar
- Min. operating temperature
5 °C
- Max. operating temperature
50 °C
- Manufacturer part #
TC-13748864
- Internal thread
G 1/4
- Type
TC-FAL-25
- Min. operating pressure
2 bar
- Plastic free packaging
Plastic-free packaging
- Product type
Linear vibrator
Documents & Downloads
Datasheet
Datasheet 3437216 TRU COMPONENTS Linear vibrator TC-13748864 TC-FAL-25 Nominal frequency (at 6 bar): 2020 U/min G 1/4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3437216 TRU COMPONENTS Linear vibrator TC-13748864 TC-FAL-25 Nominal frequency (at 6 bar): 2020 U/min G 1/4 1 pc(s)
Description
Scope of delivery
- Vibrator
- Muffler
- Push-in fitting
