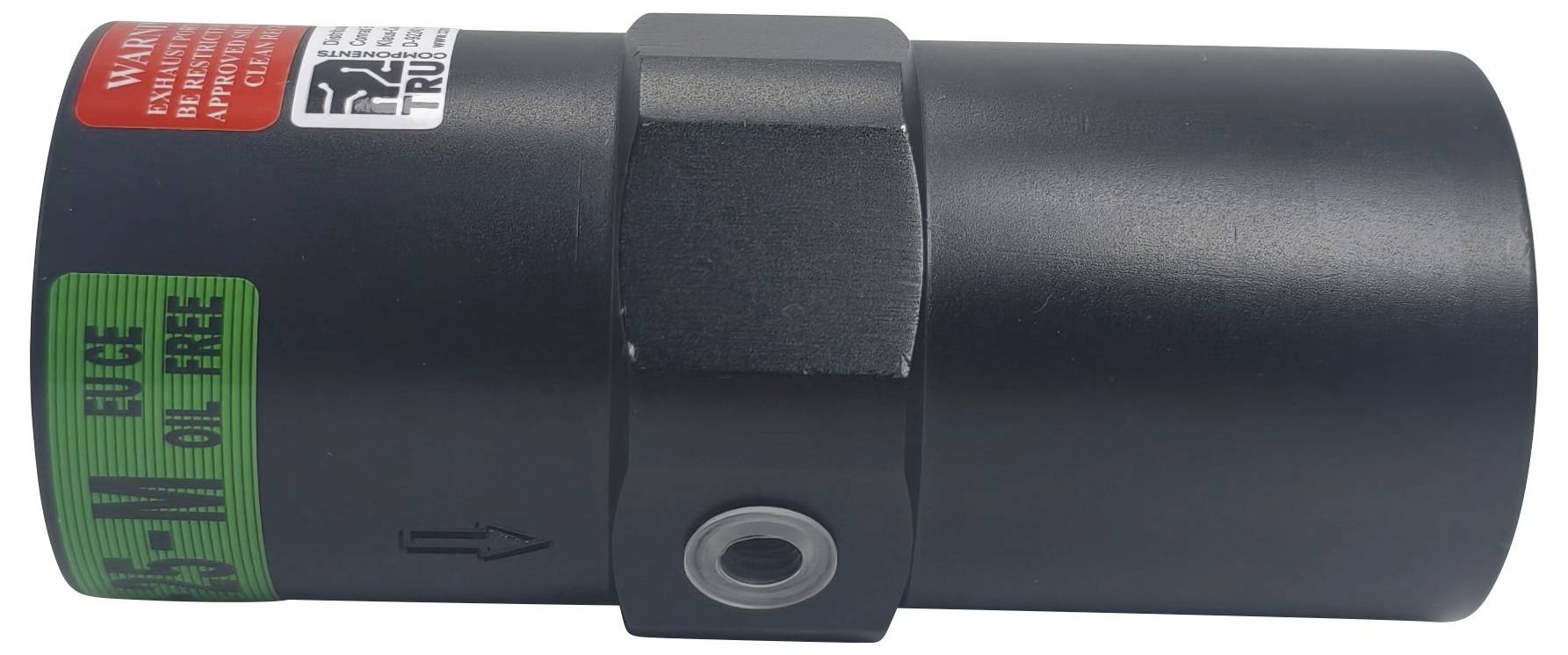

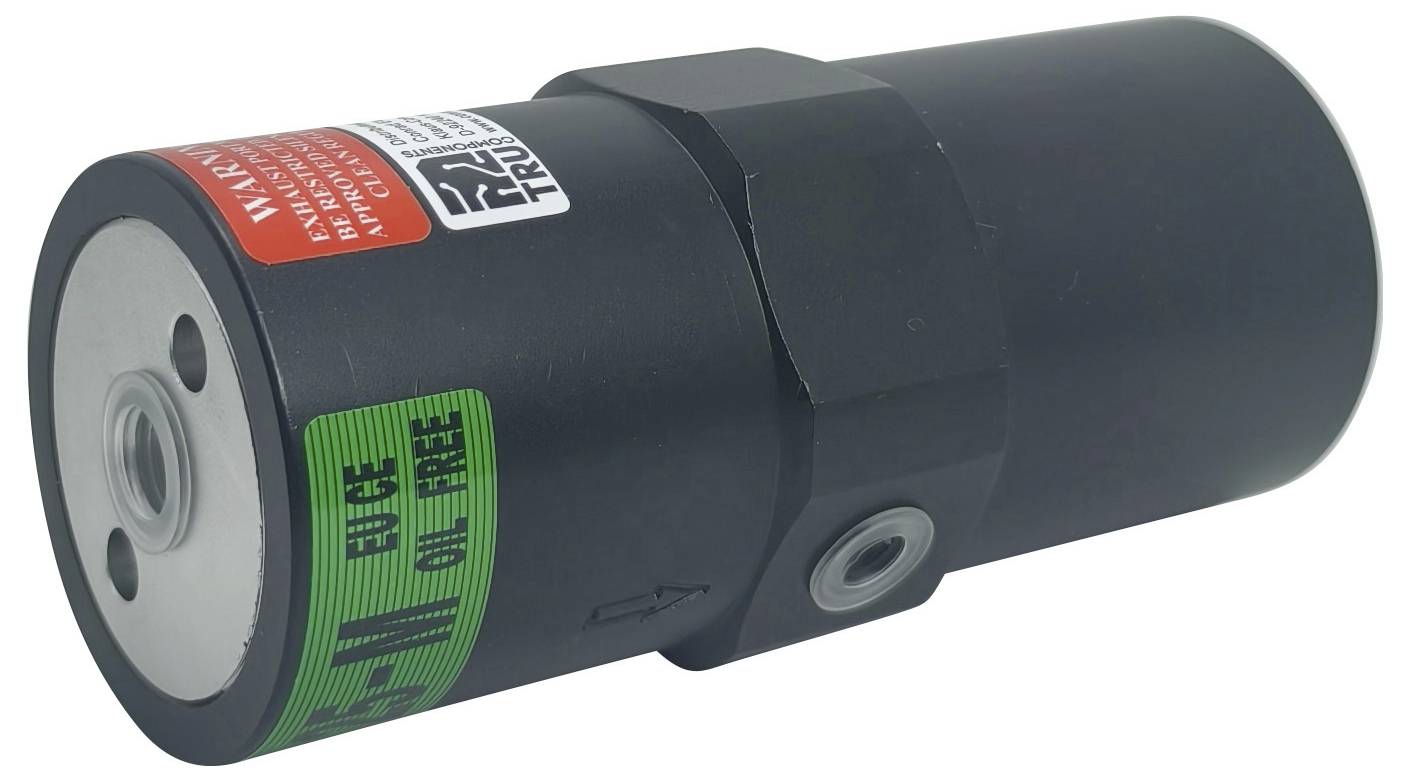

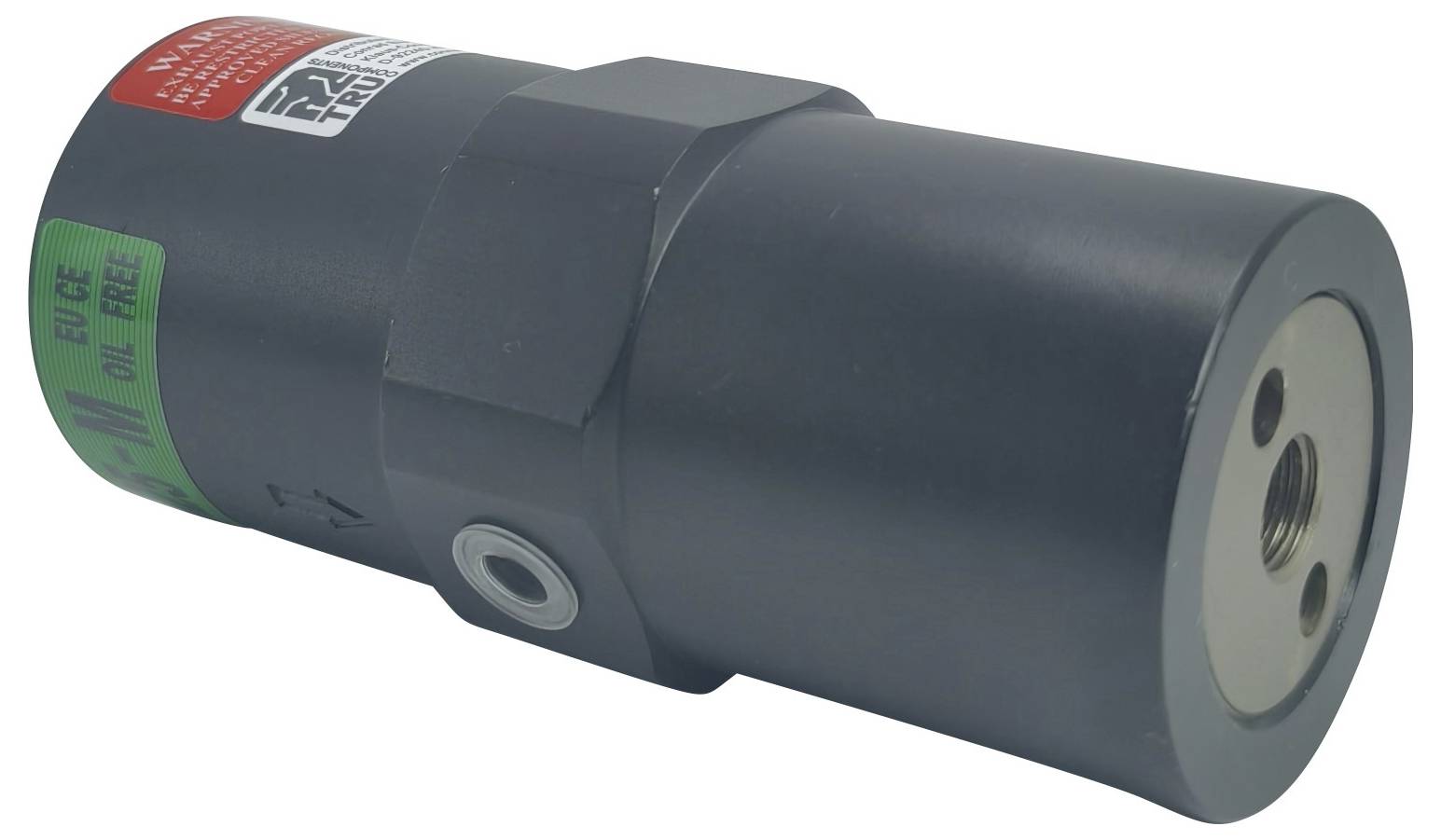

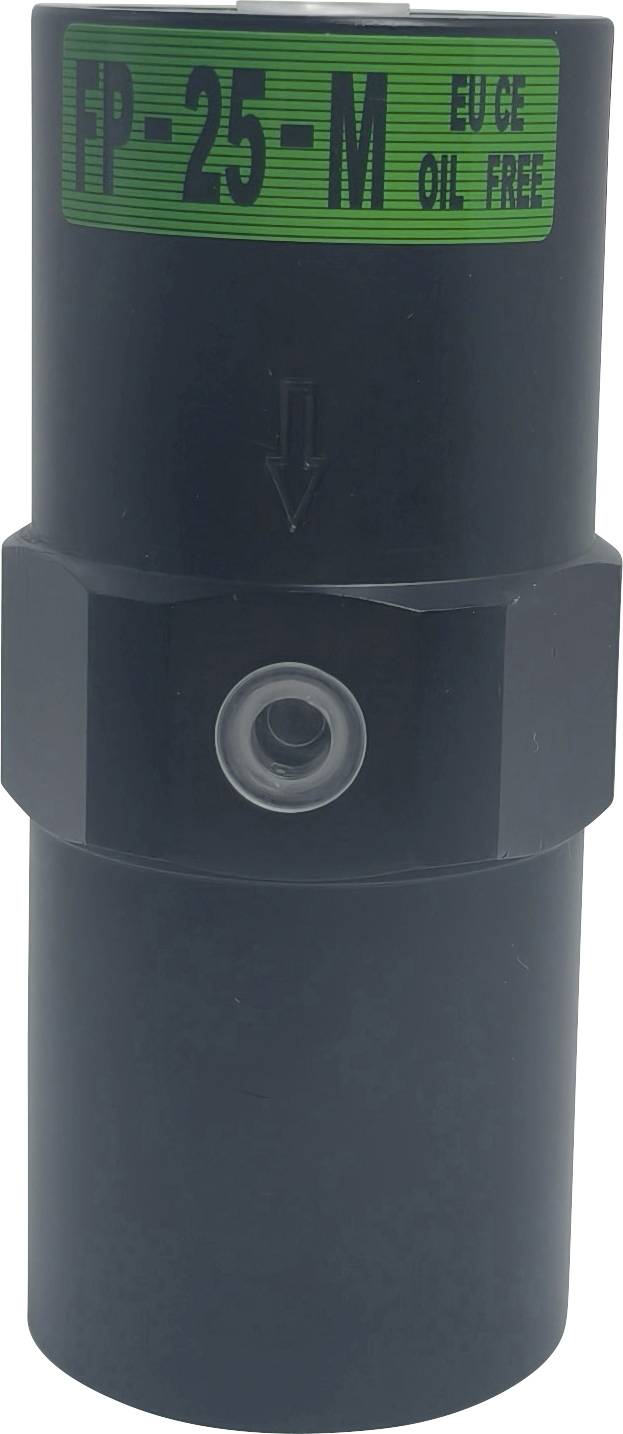

TRU COMPONENTS Linear vibrator TC-13748876 TC-FP-25-M Nominal frequency (at 6 bar): 4165 U/min G 1/8 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Dimensions: A (Length: 116 mm), C (SW: 50 mm), D (Thread: M12), E (G thread: G1/8), F (G thread: G1/4)
- Air consumed L/min (at 6 bar): 85
- Nominal frequency at 6 bar
4165 U/min
- Operating temperature
5 up to 50 °C
- Max. operating pressure
6 bar
- Min. operating temperature
5 °C
- Max. operating temperature
50 °C
- Manufacturer part #
TC-13748876
- Internal thread
G 1/8
- Type
TC-FP-25-M
- Min. operating pressure
2 bar
- Plastic free packaging
Plastic-free packaging
- Product type
Linear vibrator
Documents & Downloads
Datasheet
Datasheet 3437219 TRU COMPONENTS Linear vibrator TC-13748876 TC-FP-25-M Nominal frequency (at 6 bar): 4165 U/min G 1/8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3437219 TRU COMPONENTS Linear vibrator TC-13748876 TC-FP-25-M Nominal frequency (at 6 bar): 4165 U/min G 1/8 1 pc(s)
Description
Scope of delivery
- Vibrator
- Muffler
- Push-in fitting
