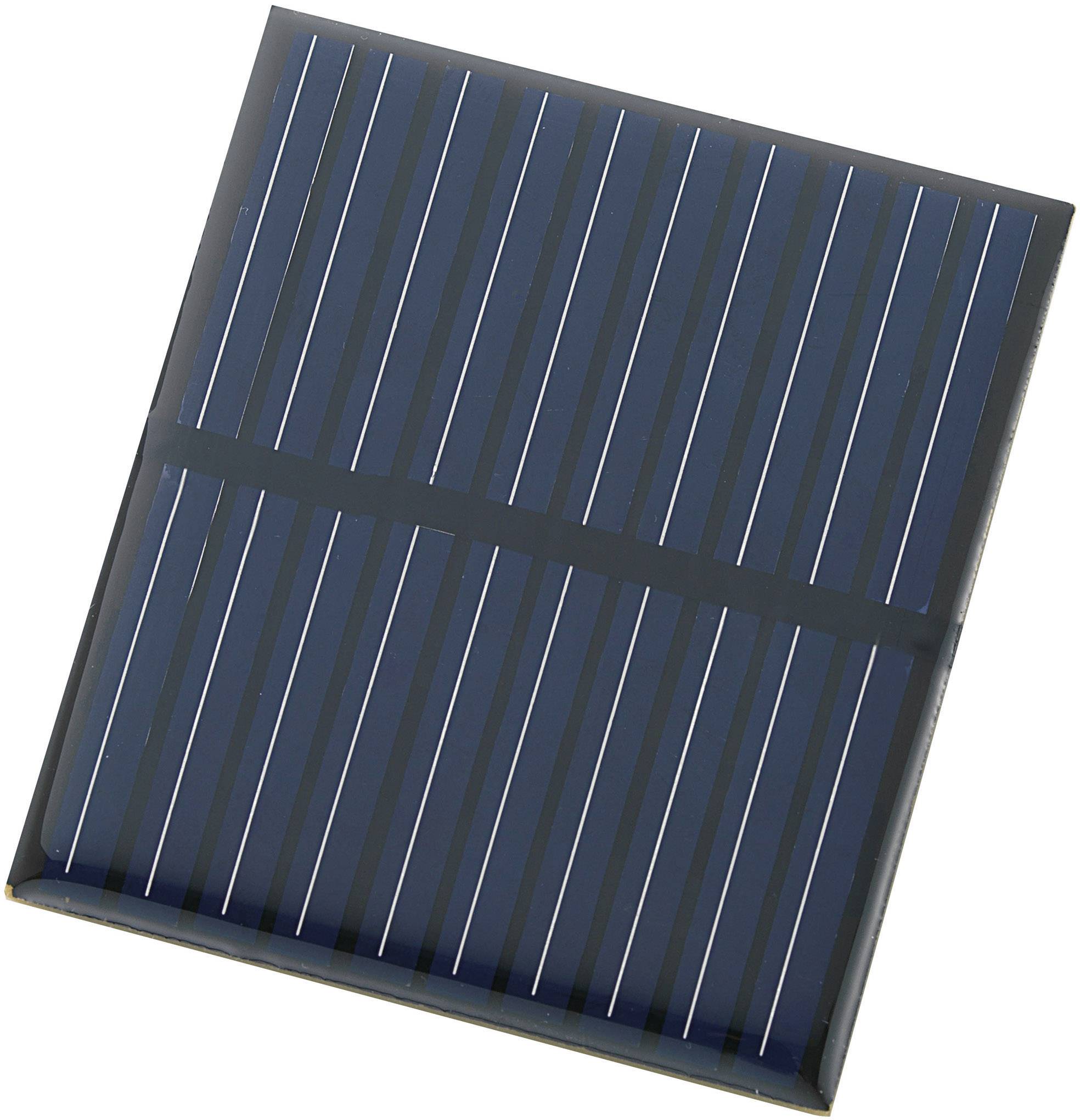

TRU COMPONENTS MF-6609321 MF-6609321 Solar panel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2.54 / piece)
€ 2.54
plus VAT.
Highlights & Details
Solar module 5 V / 81 mA
- 39 x 35 mm
- Ideal for experiments or power supply without mains
- Available in mono-crystalline design
- This text is machine translated.
Technical specifications
- 5 V / 81 mA
- Product type
Solar panel
- Length
65 mm
- Width
57 mm
- Dim
(L x W) 65 mm x 57 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2203107 TRU COMPONENTS MF-6609321 MF-6609321 Solar panel
User & Safety Instructions
User & Safety Instructions 2203107 TRU COMPONENTS MF-6609321 MF-6609321 Solar panel
Description
These miniature solar cells are ideally suited for experiments as well as for power supply, independent of the mains, for small consumers or for charging the batteries. In order to reach the desired voltage and current, the modules can be switched individually or also in parallel or in series. To do this, corresponding soldering pads are available on the back side. These miniature solar cells are available in mono-crystalline design. The mono-crystalline cells have a uniform dark coloring and comprise of a silicone mono-crystal. Vis-a-vis the poly-crystalline cells with an identifiable crystalline structure, the mono-crystalline cells have a somewhat better degree of efficiency.
