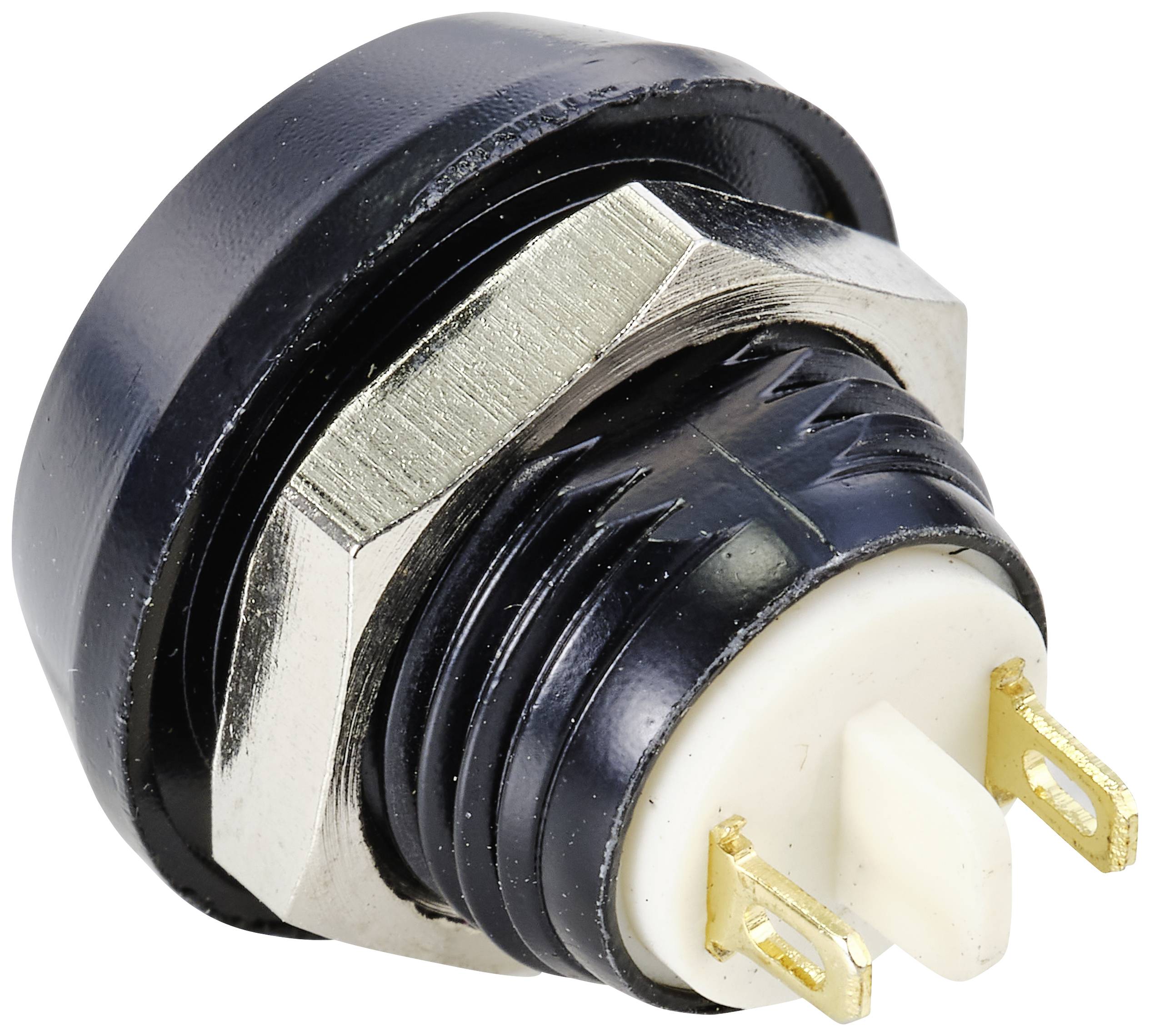

TRU COMPONENTS TC-10091012 GQ12B-10/J/N/A Pushbutton 48 V DC 2 A 1 x Off/(On) momentary IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Soldering
Switching voltage
48 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.23
5
7% = € 0.28
€ 3.95
10
9% = € 0.39
€ 3.84
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.23 / piece)
€ 4.23
plus VAT.
14-day return policy included
Highlights & Details
12 mm 48 V/DC 2 A
Our service for you
Technical specifications
- Product type
Pushbutton
- Casing/button colour
Black
- Functions
momentary
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Contact material
Silver alloy
- Connection
Soldering
- Contact resistance
≤ 50 mΩ
- Switching voltage
48 V DC
- Switching current (max.)
2 A
- Dielectric strength
1500 VAC
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Recess diameter
13 mm
- Recess depth
12.5 mm
- Electrical lifespan
200000
IP65
- Content
1 pc(s)
- Insulation resistance
≥ 100 MΩ
- Board thickness (max.)
4 mm
- Type
GQ12B-10/J/N/A
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2522753 TRU COMPONENTS TC-10091012 GQ12B-10/J/N/A Pushbutton 48 V DC 2 A 1 x Off/(On) momentary IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2522753 TRU COMPONENTS TC-10091012 GQ12B-10/J/N/A Pushbutton 48 V DC 2 A 1 x Off/(On) momentary IP65 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
