TRU COMPONENTS TC-10103052 PT100 Platinum temperature sensor -50 up to 120 °C 100 Ω 3850 ppm/K 5 mm

'Long, black temperature sensor with metallic tip and stripped cable ends, suitable for electrical connections.'

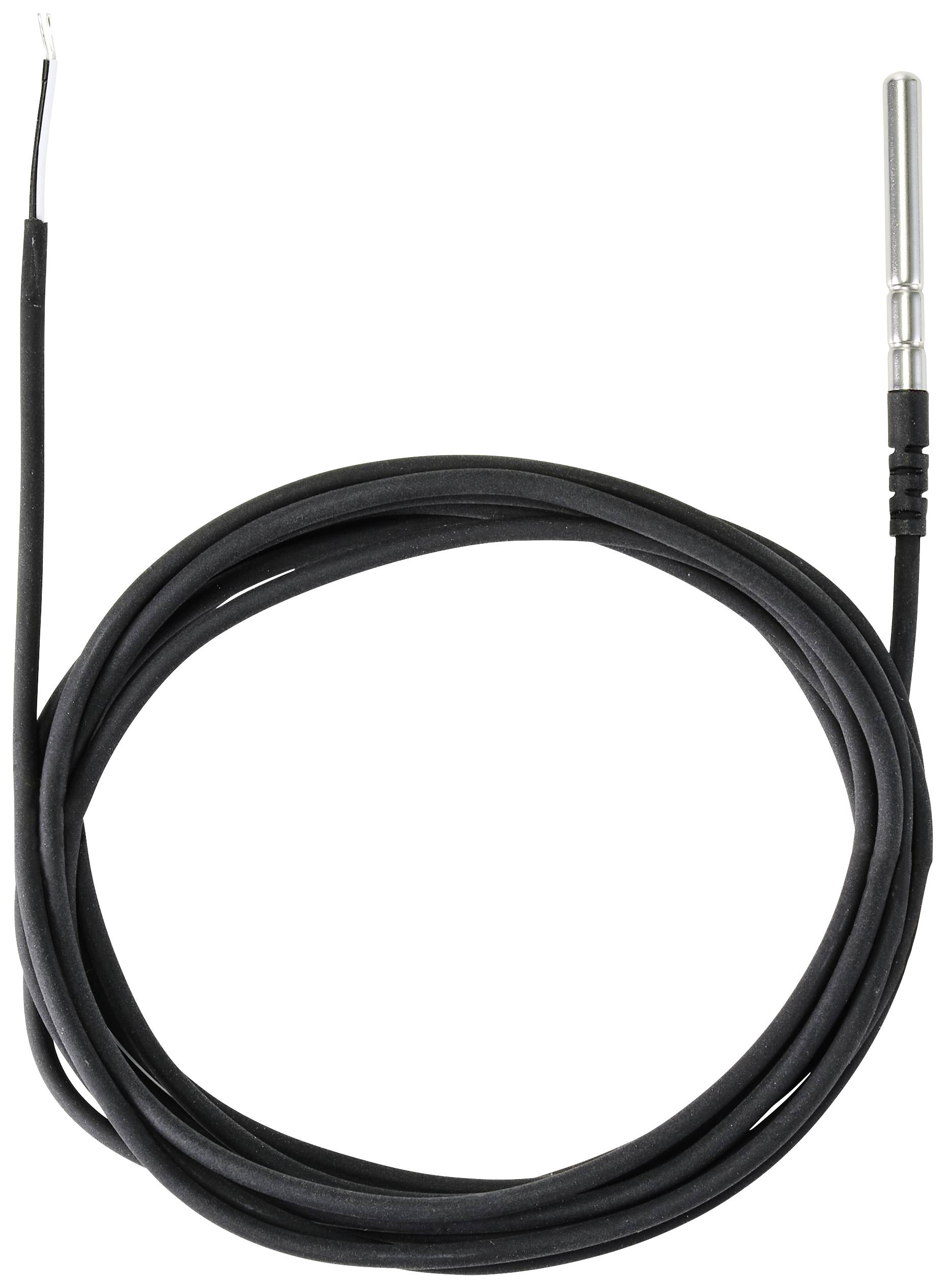

A long, black cable that is coiled, with a silver probe at one end. It looks like a temperature sensor or probe.

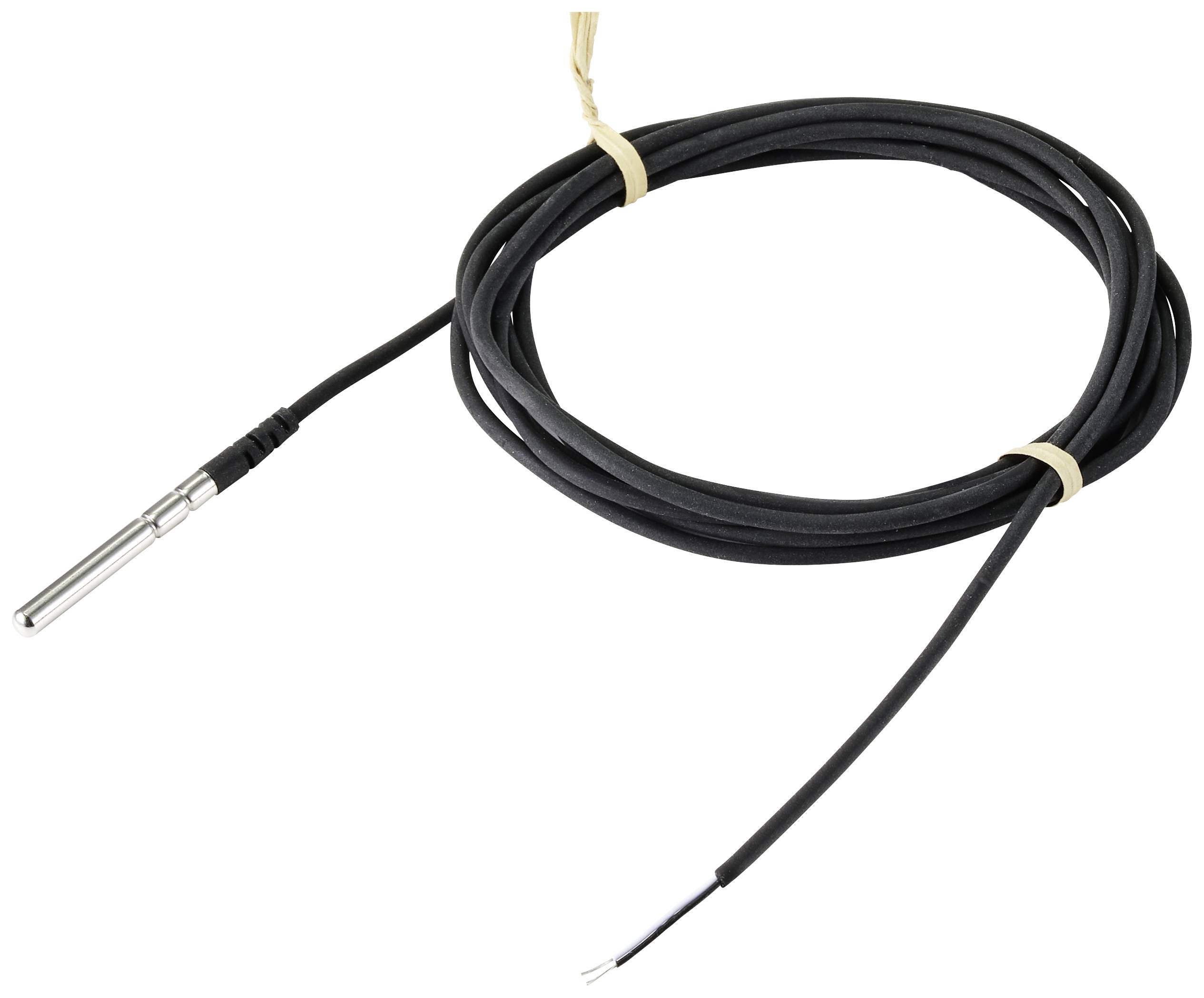

Black cable with a metal probe at one end and exposed wires at the other. Suitable for temperature measurements.
1/3
Product type
Platinum temperature sensor
Model
PT100
Temperature reading range (max.)
120 °C
Connector
Cable, open end
Resistance
100 Ω
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
456 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

PT100 Platin-temperature sensor -50 to +120 °C

  • PT100, Class B
  • Temperature range: -50 - 120
  • Cable: 2.5 m, 2- wire, open end

Technical specifications

  • Signal: DIN EN 60751
  • Material (cable): TPE insulated
Product type

Platinum temperature sensor

Type

TC-10103052

Model

PT100

Temperature reading range (min.)

-50 °C

Temperature reading range (max.)

120 °C

Temperature reading range

-50 up to 120 °C

Connector

Cable, open end

Cable length

2.5 m

Enclosure

5 mm

Enclosure material

Steel AISI 304

Min. operating voltage

3 V

Max. operating voltage

5 V

Operating voltage

3 - 5 V

Accuracy class

B (F0.30)

Resistance

100 Ω

Temperature coefficient

3850 ppm/K

IP68

Length

40 mm

Width

5 mm

Height

5 mm

(Ø)

5 mm

Dim

(Ø x H) 5 mm x 5 mm

Documents & Downloads

Datasheet

Datasheet 2525763 TRU COMPONENTS TC-10103052 PT100 Platinum temperature sensor -50 up to 120 °C 100 Ω 3850 ppm/K 5 mm

User & Safety Instructions

User & Safety Instructions 2525763 TRU COMPONENTS TC-10103052 PT100 Platinum temperature sensor -50 up to 120 °C 100 Ω 3850 ppm/K 5 mm
