TRU COMPONENTS TC-11991836 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm² Partially insulated Silv

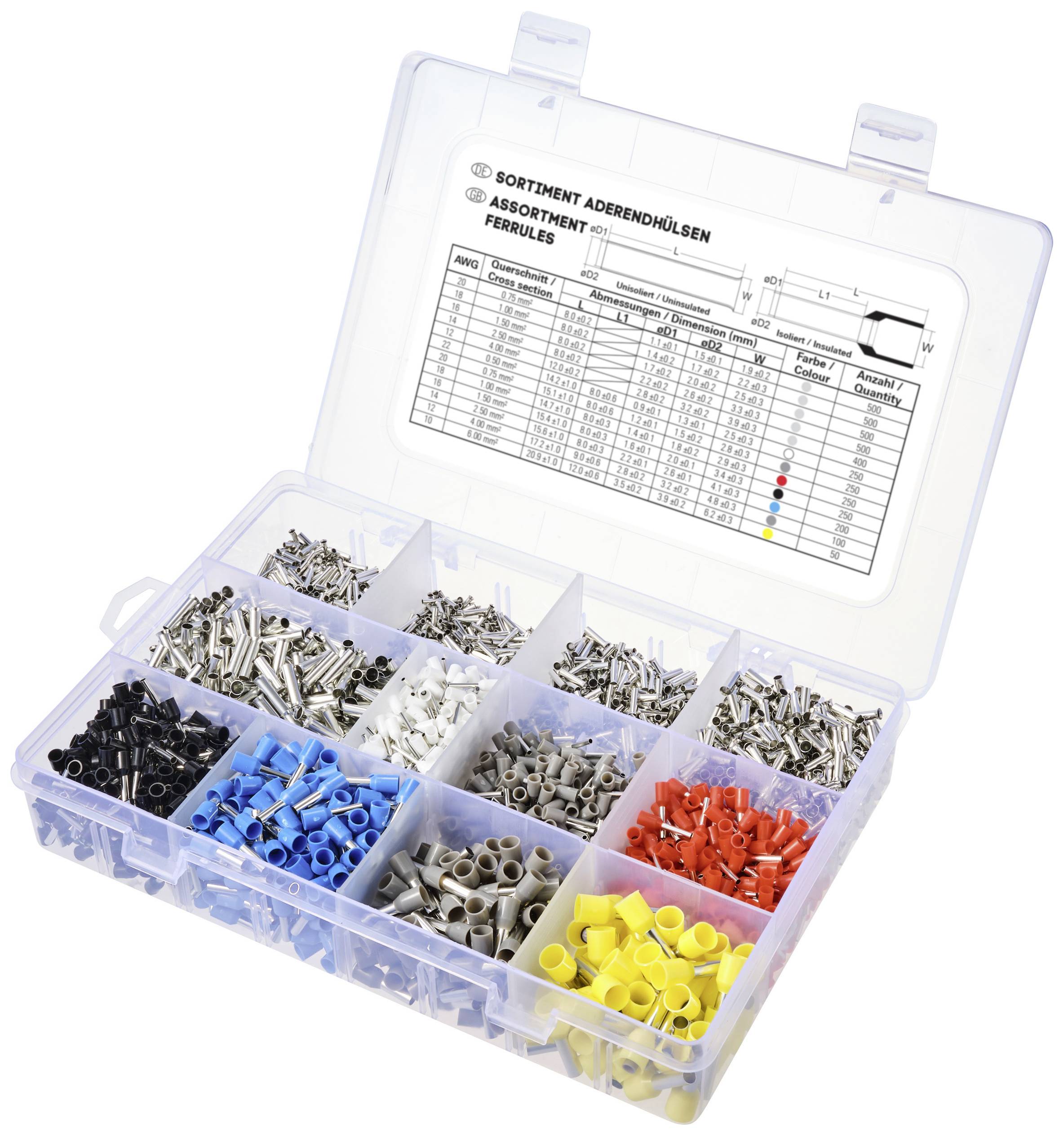

An open box with various cable end ferrules in compartments, colour-sorted in blue, black, white, red, yellow, and silver. An allocation plan is included in the lid.

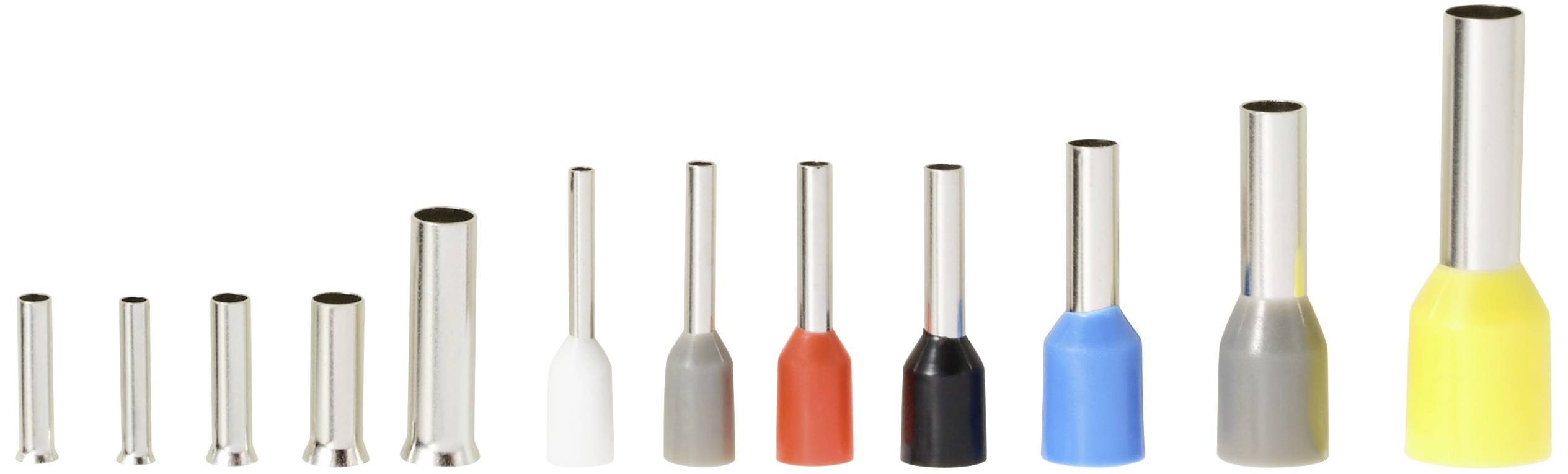

Various wire end ferrules in different colours and sizes, arranged from small to large. They are made of metal with plastic ends.

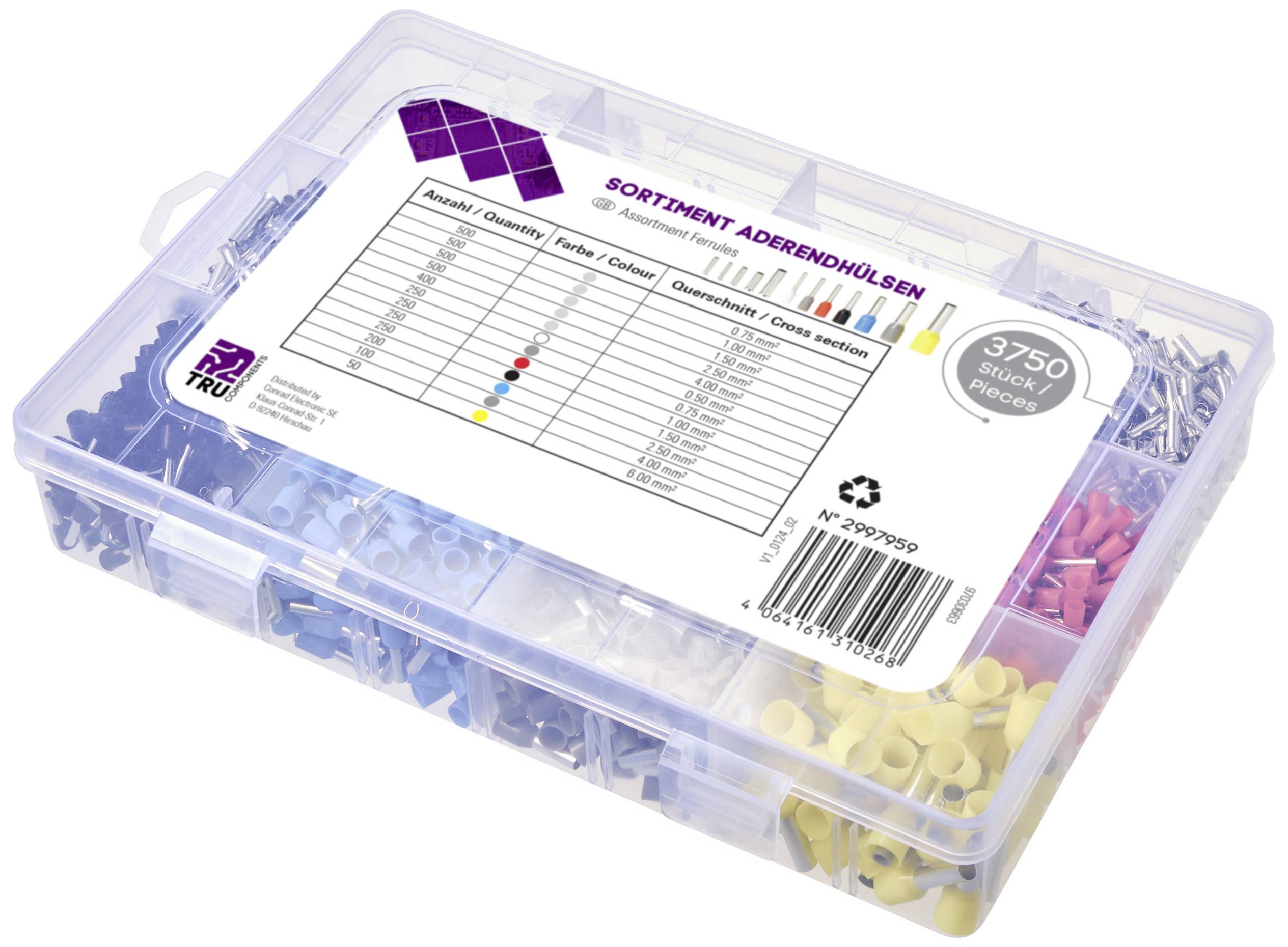

A plastic box contains 3,750 colourful cable end ferrules, sorted by size and colour. A label on the lid displays a table.
1/3
Product type
Ferrule set
Cross section per core
0.5 mm²
0.75 mm²
1 mm²
1.5 mm²
2.5 mm²
4 mm²
6 mm²
Insulation type
Partially insulated
Content
3750 pc(s)
Factory colour
Silver
White
Grey
Red
Black
Blue
Yellow
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
65 Set(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 3750 pc(s))
Total (€ 24.99 / piece)
€ 24.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

TRU COMPONENTS Ferrule Set

  • Cross section (max.): 6 mm²
  • Partially insulated

Our service for you

Technical specifications

  • Max. voltage rating: 600 V
Product type

Ferrule set

Cross section per core

0.5 mm²

0.75 mm²

1 mm²

1.5 mm²

2.5 mm²

4 mm²

6 mm²

Insulation type

Partially insulated

Factory colour

Silver

White

Grey

Red

Black

Blue

Yellow

Country colour code

DIN

Content

3750 pc(s)

Contact material

Cable lug: Copper tin plated

Manufacturer part #

TC-11991836

Insulation material

PVC

Cross-section x Length

0.5 mm²

RoHS-compliant

Yes

Features

+ ferrules

Assortment box

Temperature range

Uninsulated: 105 °C
Insulated: 75 °C

Type

TC-11991836

max. cross section

6 mm²

Min. cross section

0.5 mm²

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2997959 TRU COMPONENTS TC-11991836 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm² Partially insulated Silv

User & Safety Instructions

User & Safety Instructions 2997959 TRU COMPONENTS TC-11991836 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm² Partially insulated Silv

Description

Scope of delivery

  • 500x Uninsulated, Silver, 0.75 mm²
  • 500x Uninsulated, Silver, 1.00 mm²
  • 500x Uninsulated, Silver, 1.50 mm²
  • 500x Uninsulated, Silver, 2.50 mm²
  • 400x Uninsulated, Silver, 4.00 mm²
  • 250x Insulated, White, 0.50 mm²
  • 250x Insulated, Grey, 0.75 mm²
  • 250x Insulated, Red, 1.00 mm²
  • 250x Insulated, Black, 1.50 mm²
  • 200x Insulated, Blue, 2.50 mm²
  • 100x Insulated, Grey, 4.00 mm²
  • 50x Insulated, Yellow, 6.00 mm²
