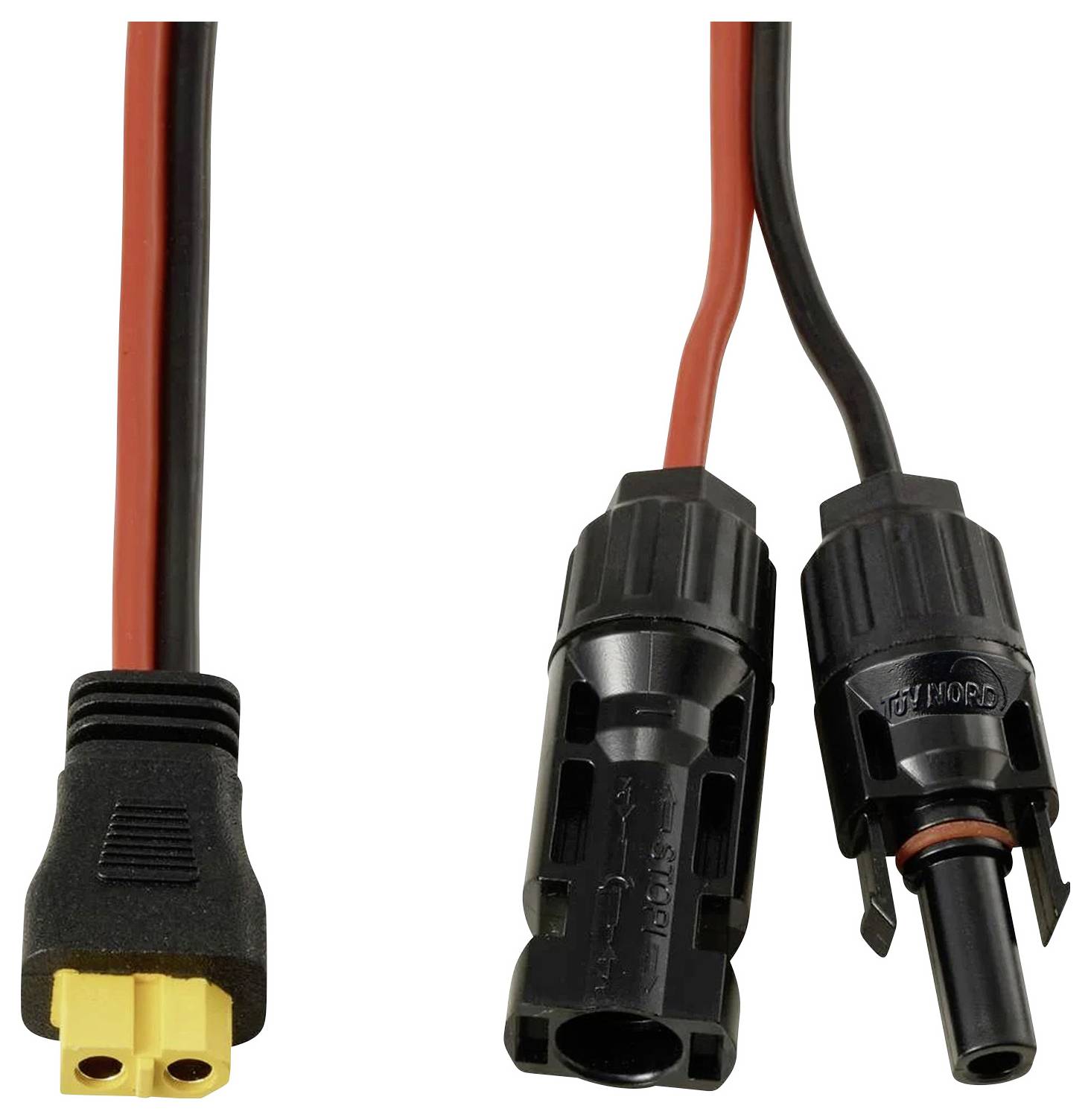

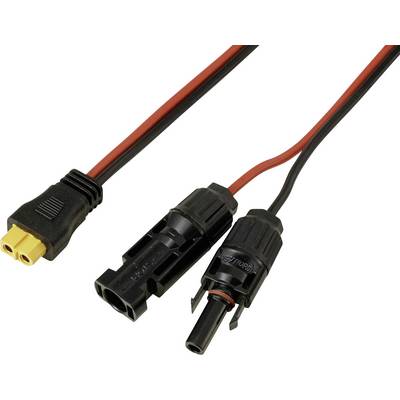

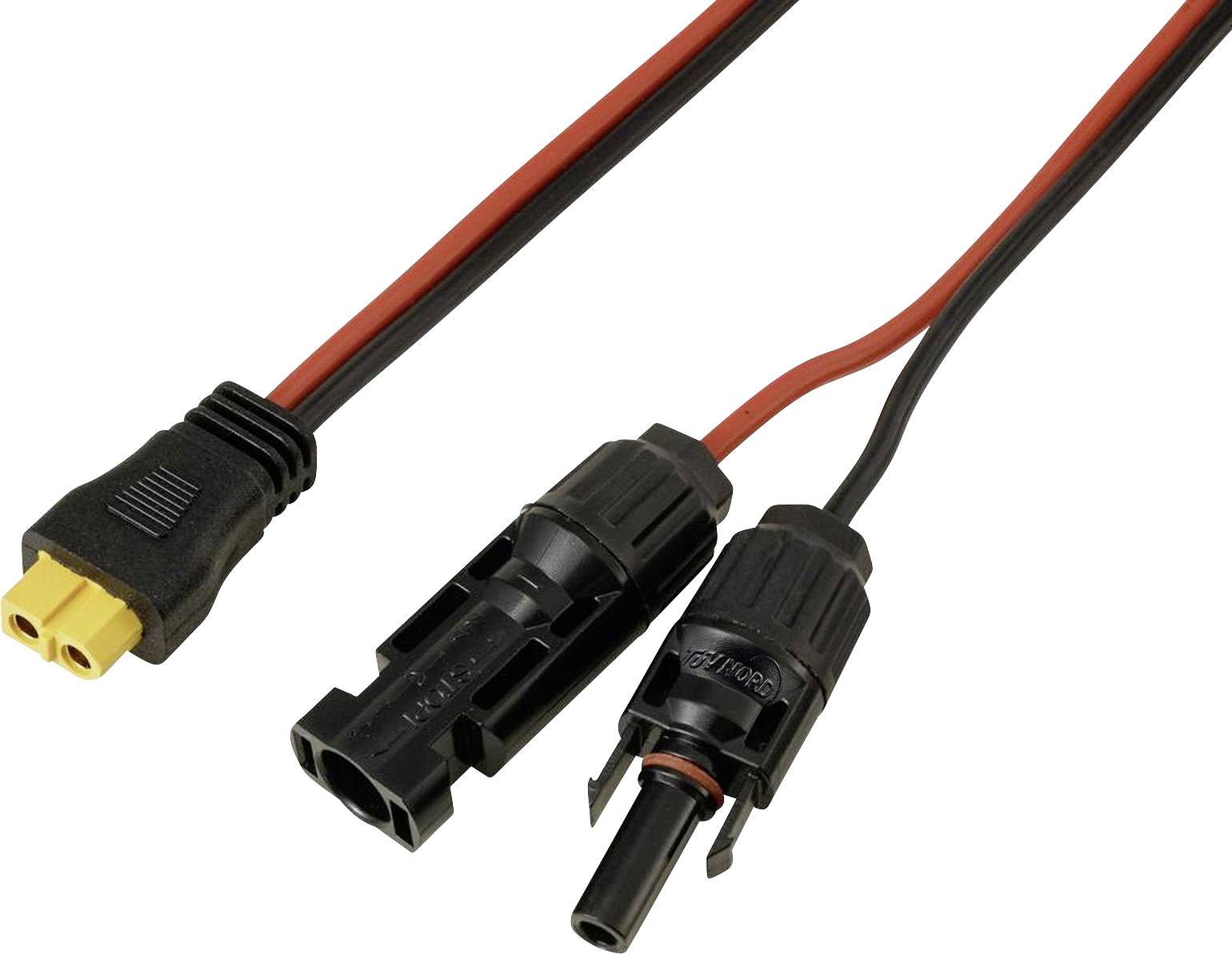

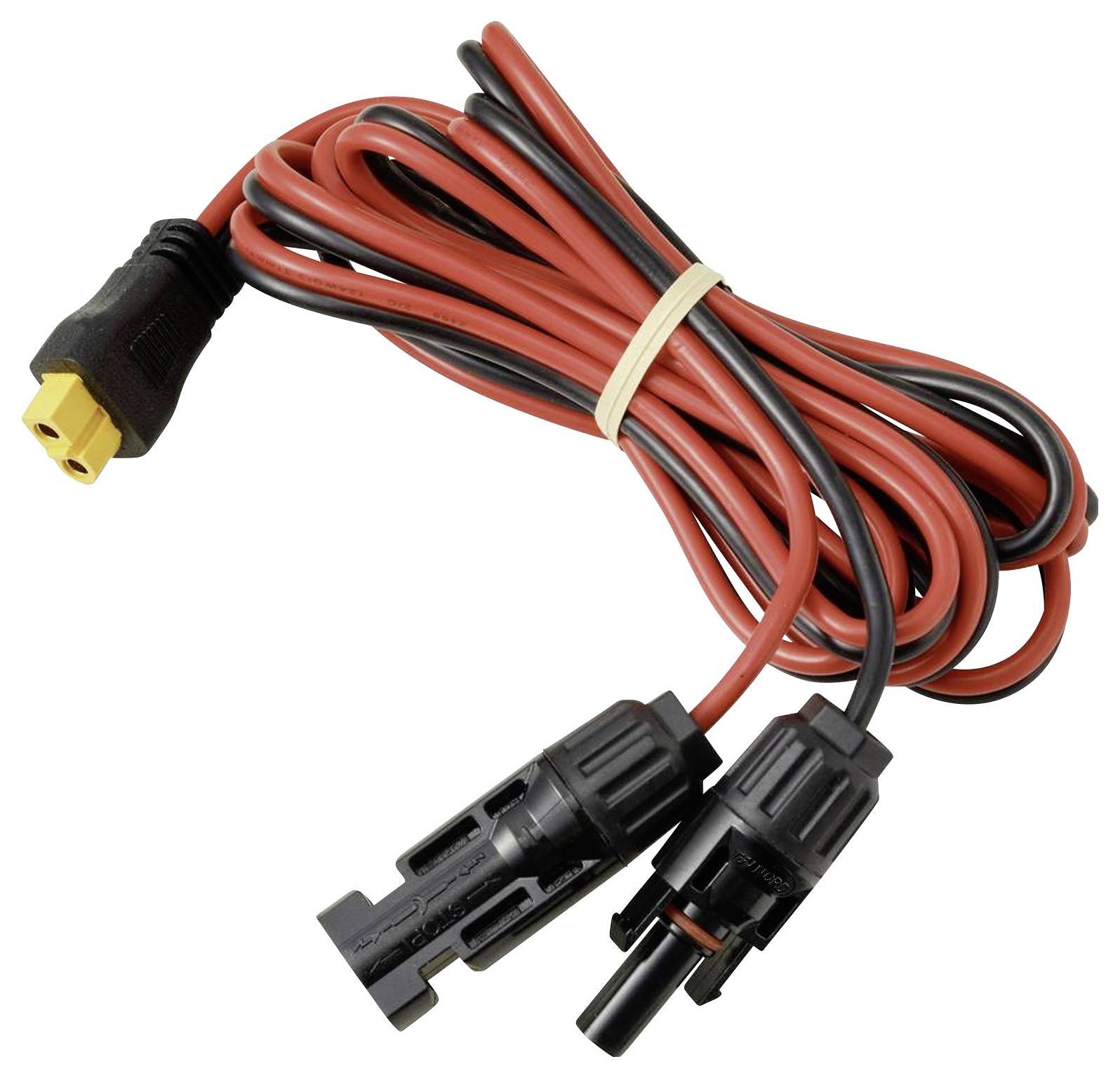

TRU COMPONENTS TC-13619276 Solar adapter cable 3.31 mm² 20 A Cable length 1.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Technical specifications
- Rated voltage: 300 V DC
- Contact resistance: <10 mΩ
- Insulation resistance: >500 MΩ
- Flame retardant grade: UL 94V-0

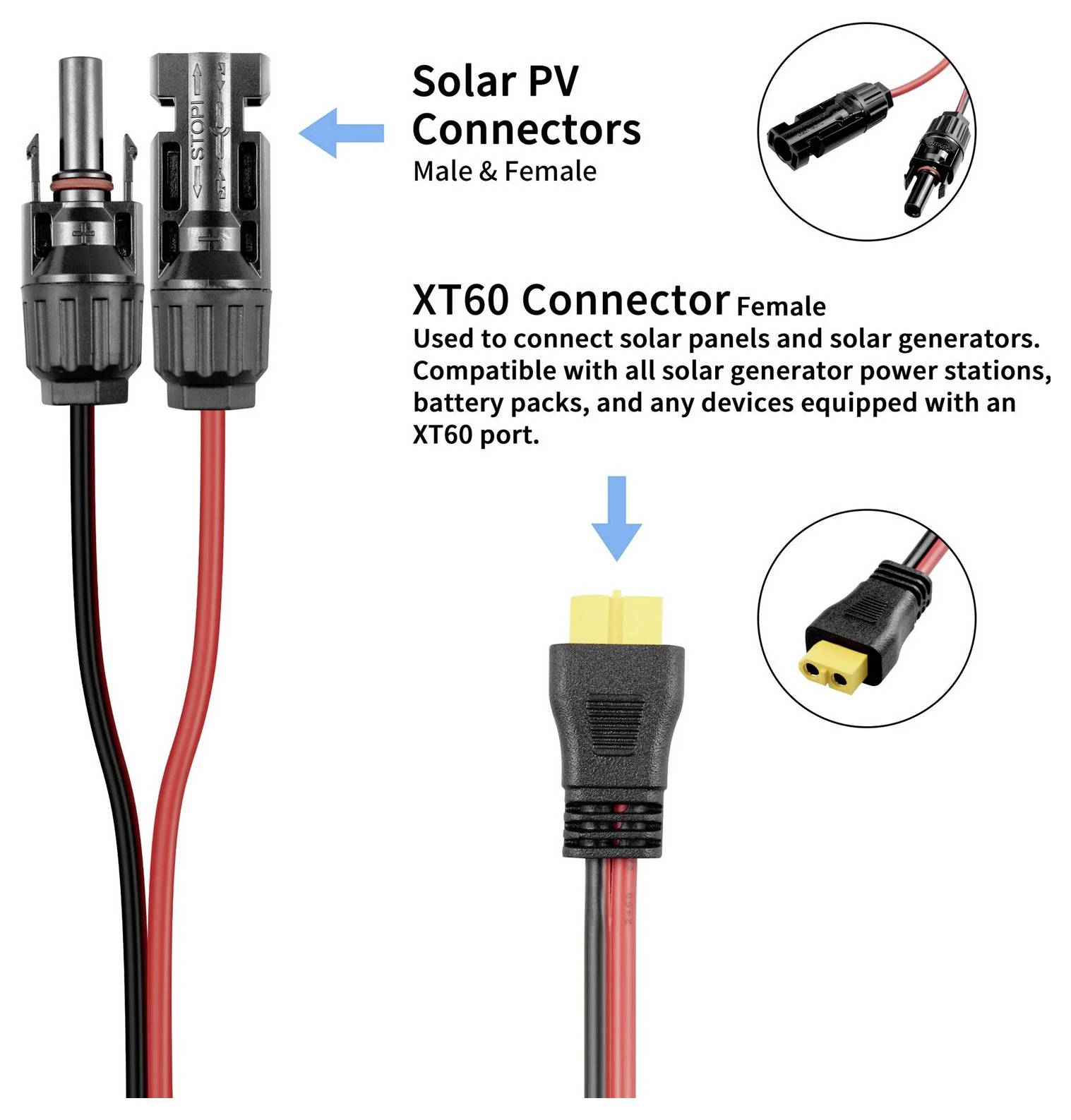

- XT60 connector: IP46
- Insulation material: PA 66, 94V-0
- Contact material: Gold plated copper
- PV connector: IP67
- Housing: Polycarbonate (PC)
- Terminal contact: Tin plated copper
- Solar cable conductor: Bare copper
- Insulation jacket: PVC / VW-1
- Product type
Solar adapter cable
- Cable length
1.5 m
- Cross section per core
3.31 mm²
- Factory colour
Black
Red
- Current load
20 A
- Cross section
3.31 mm²
- Connection
Plug
- Connector type
Plug
- Test current
20 A
- Rated voltage
300 V DC
- Connector cross section
3.31 mm²
- Contact material
Copper gold plated
- Seal
Injection molding
- Case material
Polycarbonate
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3404819 TRU COMPONENTS TC-13619276 Solar adapter cable 3.31 mm² 20 A Cable length 1.5 m
User & Safety Instructions
User & Safety Instructions 3404819 TRU COMPONENTS TC-13619276 Solar adapter cable 3.31 mm² 20 A Cable length 1.5 m
Description
Hints
These connectors must be used in matching pairs/sets to ensure performance, compatibility and security.
