TRU COMPONENTS TC-14378472 Pushbutton switch 36 V AC, 36 V DC 2 A 1 x Off/On latch Blue (Ø x L) 14 mm x 24 mm IP65 1 pc(

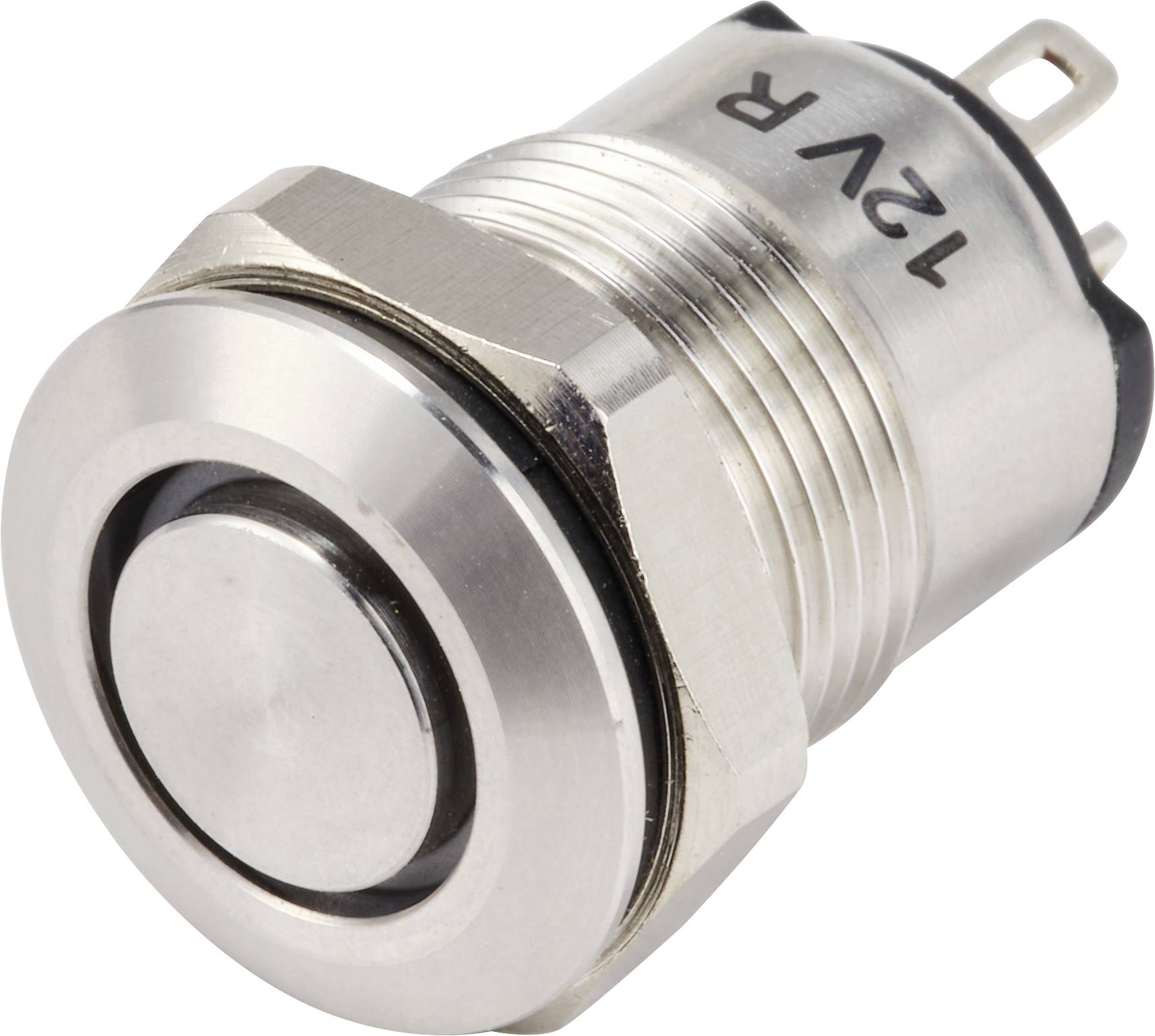

A metallic push button switch labeled '12V', with a threaded body and two connector pins, commonly used in electronic devices.

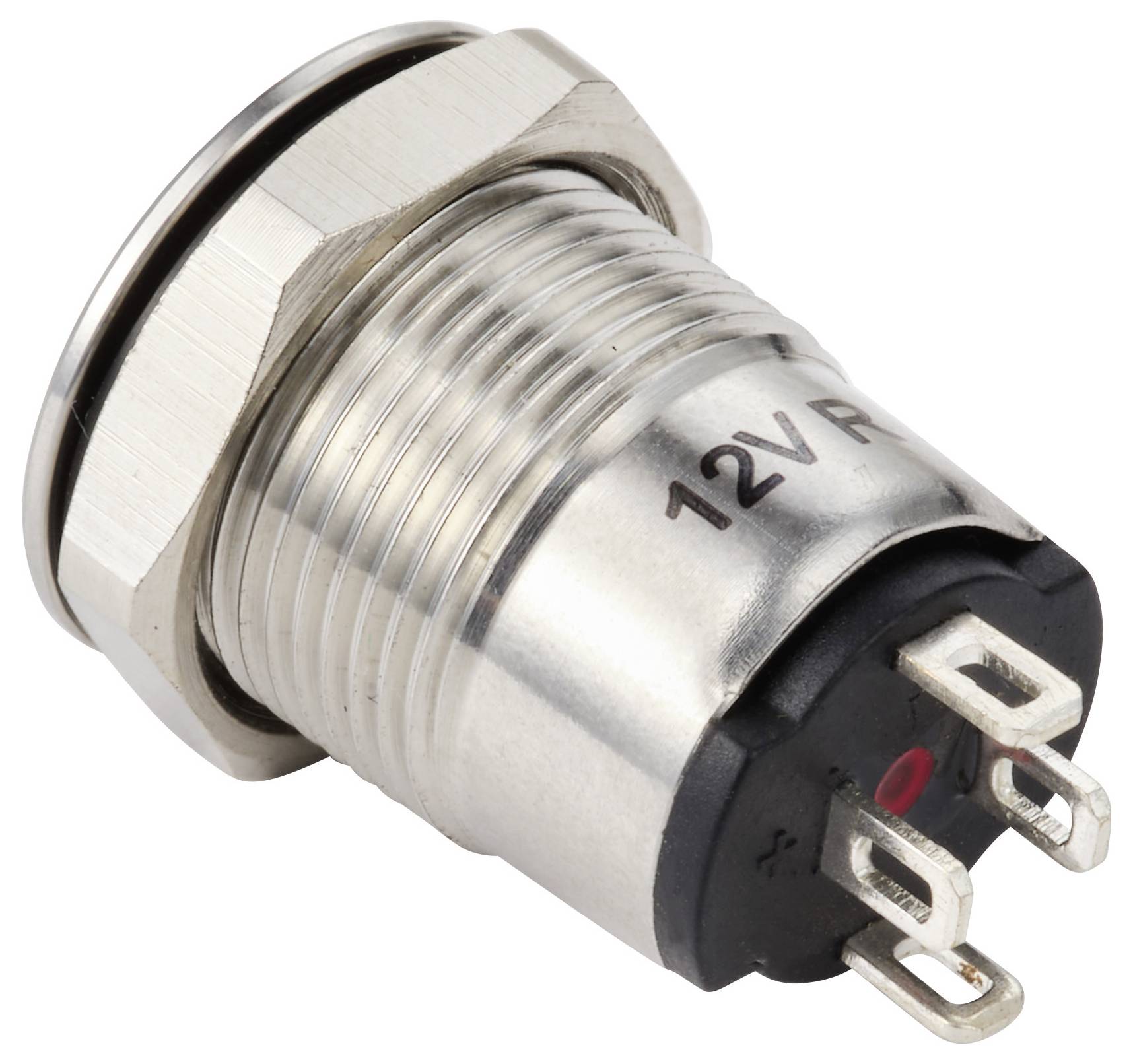

A metallic push-button switch labeled '12V', showing two mounting nuts and three terminal pins for electrical connections.

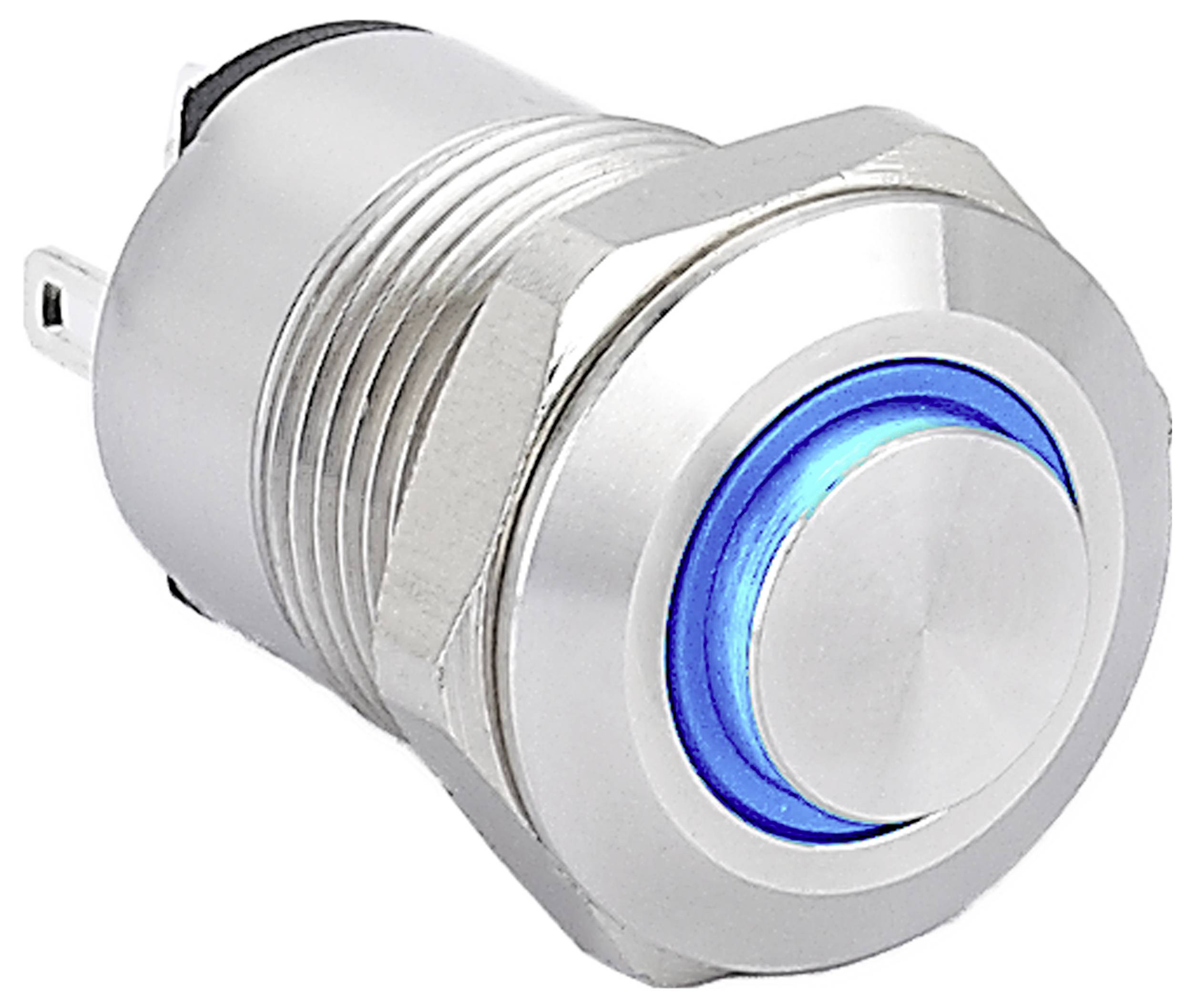

A metallic push button switch with a blue LED ring, designed for electronic devices.
1/3
Product type
Pushbutton switch
Lighting type
Circular lighting
Switch position
1 x Off/On
Contact type
1 maker
Connection
Pin terminal (flat)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.04 / piece)
€ 6.04
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Push button, stainless steel, 12 mm M12, blue LED, 12 V DC, IP65, installation depth 19.5 mm

  • 1 x Off/On
  • latch
  • Blue

Technical specifications

Product type

Pushbutton switch

Casing/button colour

Silver

Functions

latch

Lighting type

Circular lighting

Colour

Blue

Bulb type

LED (monochrome)

Switch position

1 x Off/On

Contact type

1 maker

Material

Stainless steel

Contact material

Silver alloy

Connection

Pin terminal (flat)

Switching voltage

36 V AC

36 V DC

Switching current (max.)

2 A

Min. temperature

-25 °C

Forward voltage U(F)

12 V DC

Shape

Round

Max. temperature

+55 °C

Length

24 mm

(Ø)

14 mm

Button diameter

7.2 mm

Recess diameter

12 mm

Recess depth

21 mm

Electrical lifespan

50,000 cycles

Front panel cut-out

Ø12 mm

IP65

Actuating force

2.5 N

Content

1 pc(s)

Insulation resistance

≥ 1000 MΩ (500 V DC)

Contact resistance

≤ 50 mΩ

Dim

(Ø x L) 14 mm x 24 mm

RoHS-compliant

Yes

Board thickness (max.)

6 mm

Type

TC-14378472

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3594618 TRU COMPONENTS TC-14378472 Pushbutton switch 36 V AC, 36 V DC 2 A 1 x Off/On latch Blue (Ø x L) 14 mm x 24 mm IP65 1 pc(

User & Safety Instructions

User & Safety Instructions 3594618 TRU COMPONENTS TC-14378472 Pushbutton switch 36 V AC, 36 V DC 2 A 1 x Off/On latch Blue (Ø x L) 14 mm x 24 mm IP65 1 pc(

Description

Scope of delivery

  • Push button
  • Rubber ring
  • Metal nut

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
