Name: TRU COMPONENTS TC-14382292 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 24 V DC 1.7 A 40.8 W No. of outputs:1 x Co
Brand: TRU COMPONENTS
SKU: 3595573
Availability: InStock

White industrial power supply unit with terminal screws and labels for DC output, AC input, and status indicators.

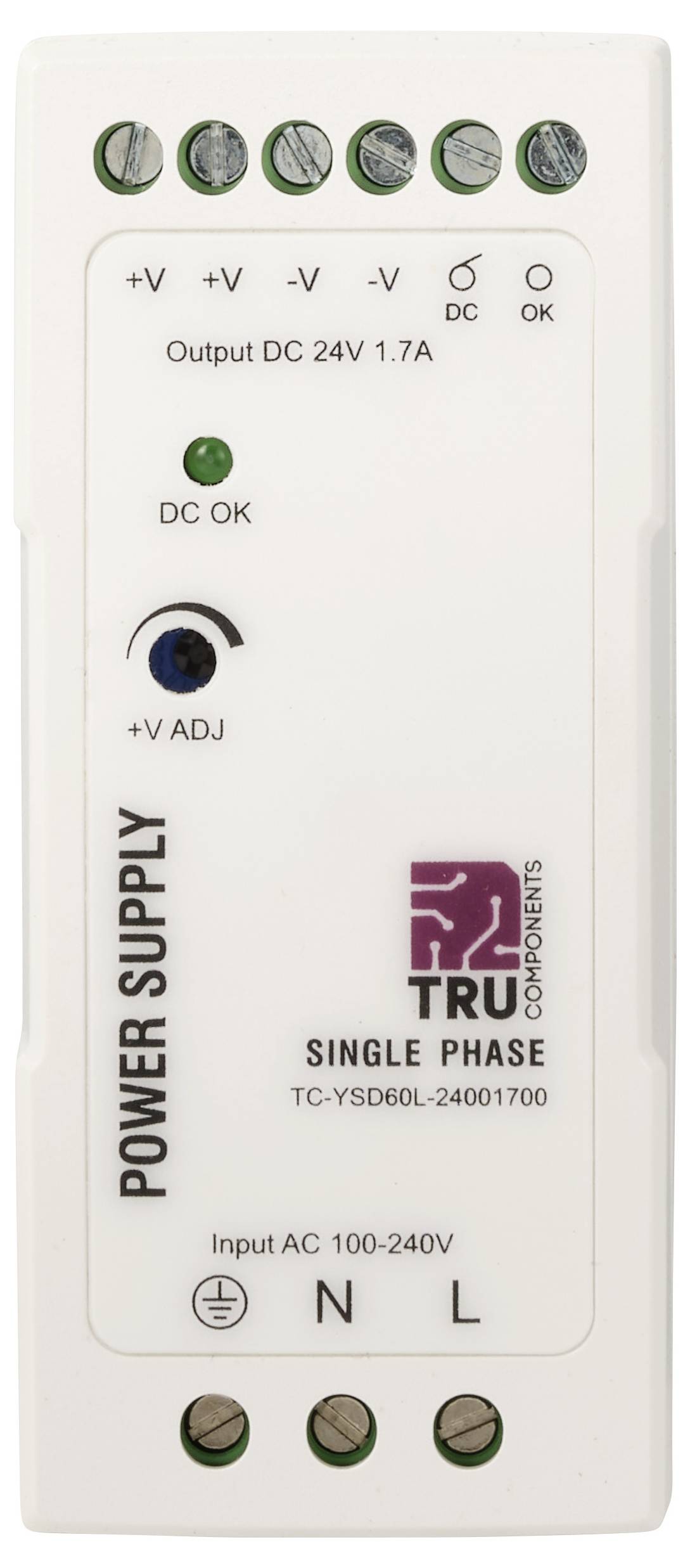

White single-phase power supply module labeled 'TRU COMPONENTS' with terminals for AC input, 24V DC output, and a DC OK indicator<br>

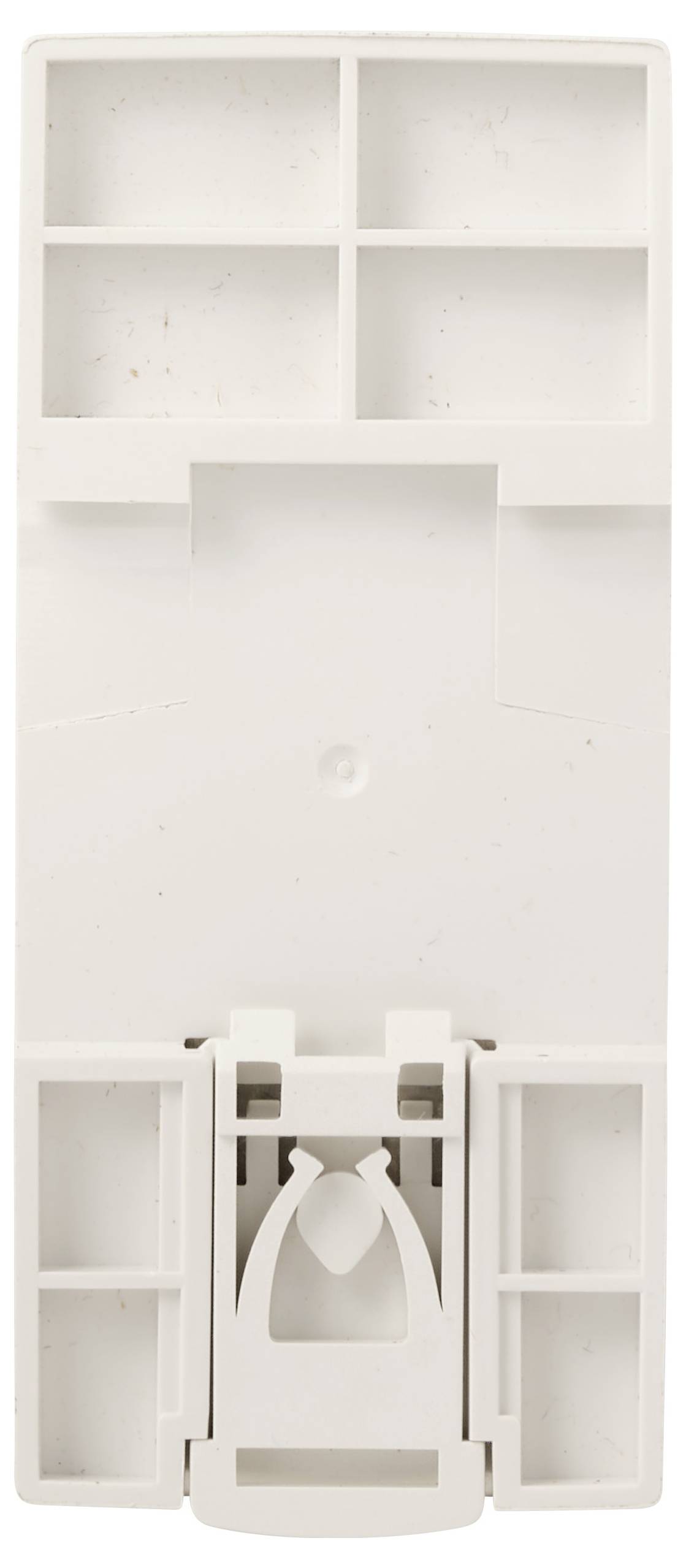

White plastic electronic mounting bracket with rectangular cutouts and a central spring clip on a plain background.

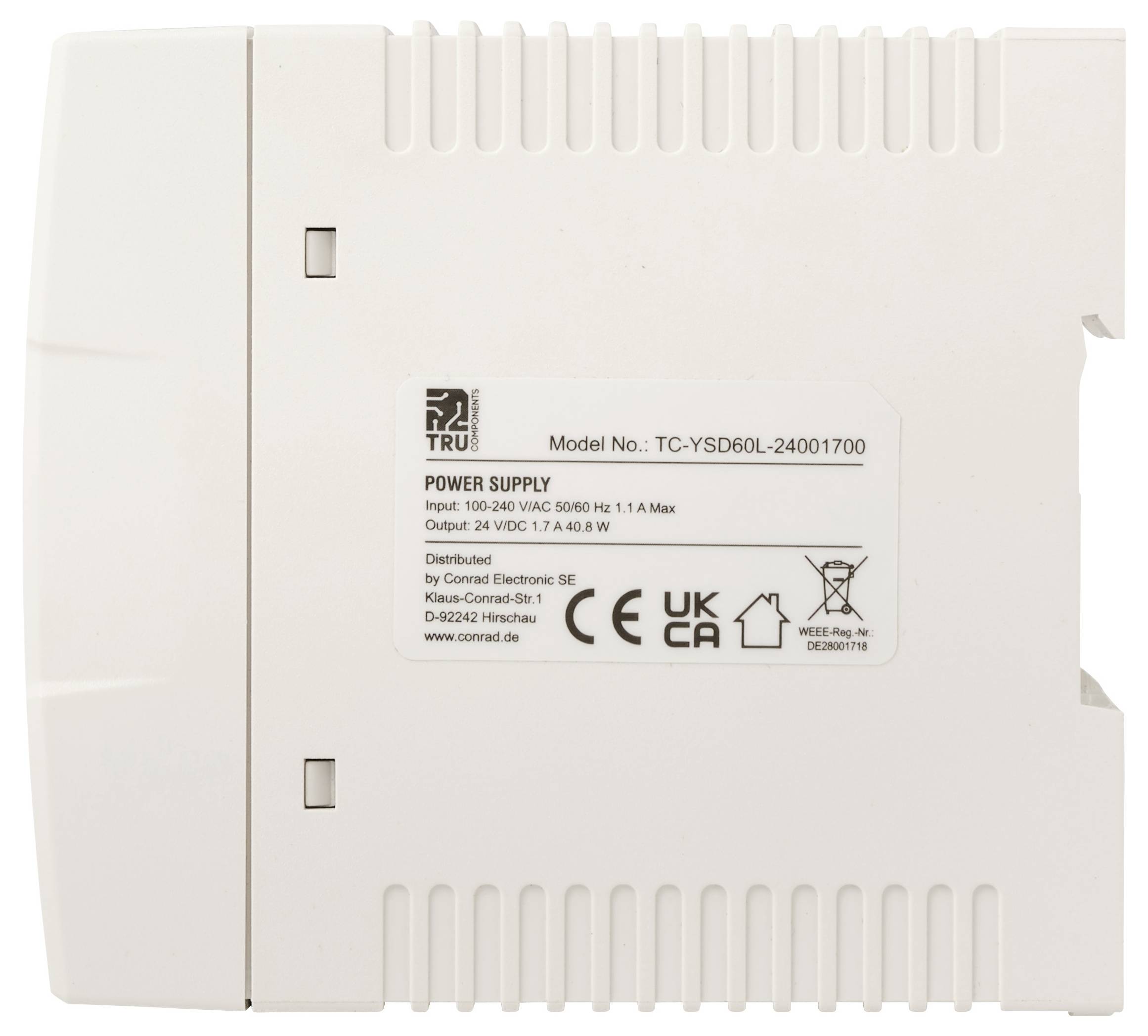

White electrical power supply unit labeled 'Model No. TC-YSD60L-24001700' with input 100-240V AC and output 24V DC, 1.7A.

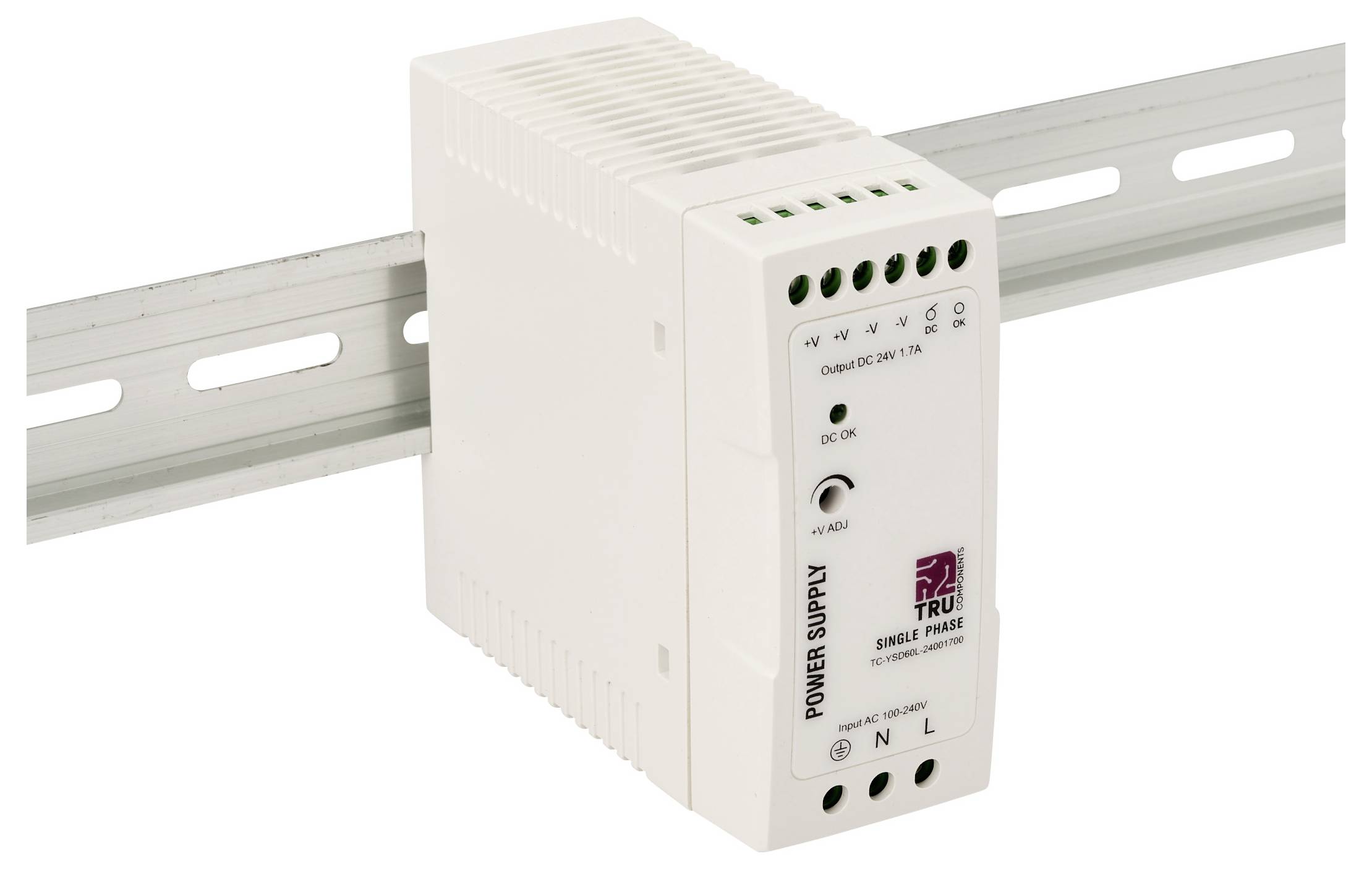

DIN-rail mounted white power supply unit with front indicator lights and labeled terminals, shown on a metal mounting rail.<br>

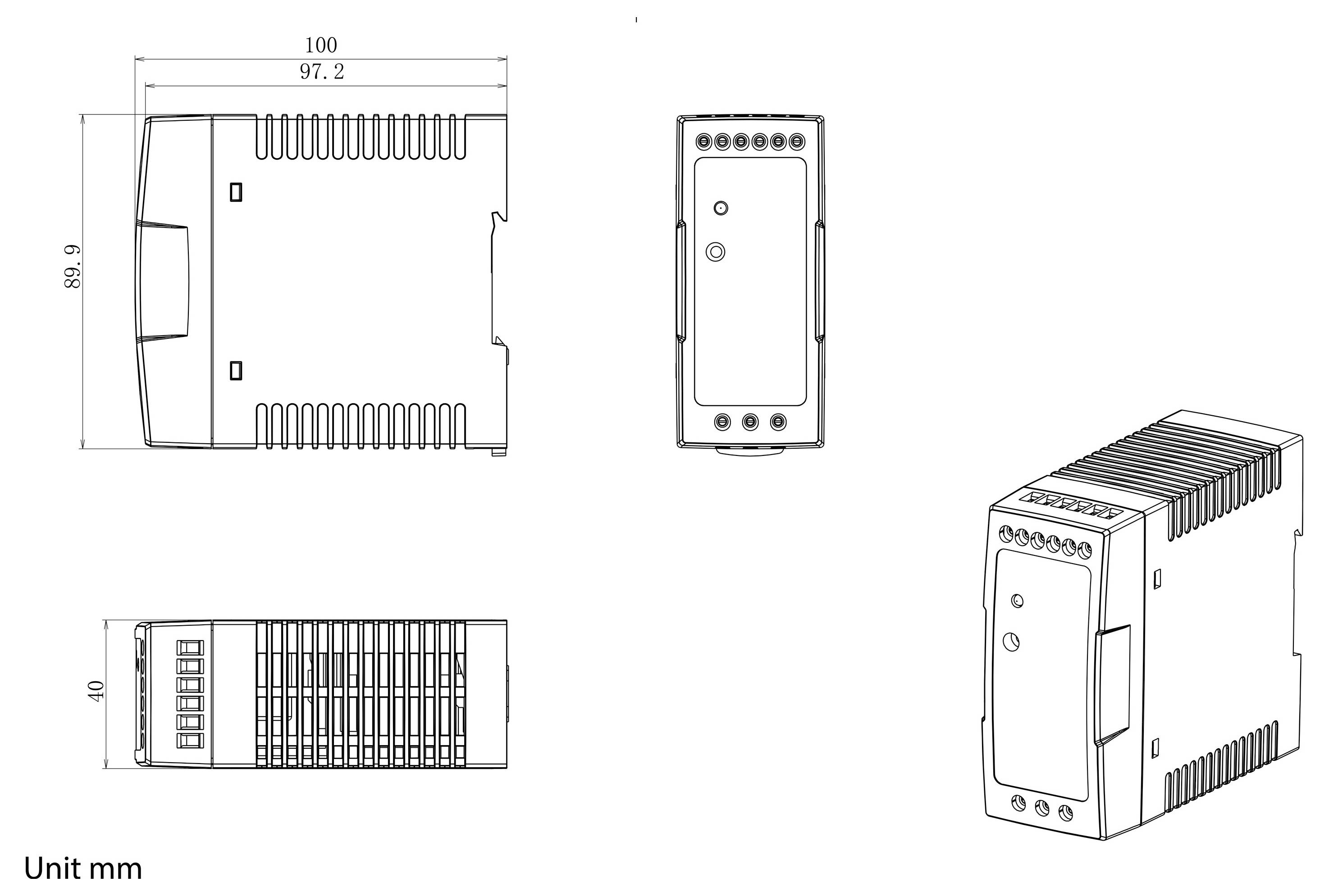

Technical drawing of a rectangular electronic device with front, side, top, and isometric views; dimensions shown in millimeters.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

499 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YSD60L-24001700 Din Rail Power Supply 24 V DC 1.70 A 40.8 W

Input voltage range: 100 - 240 V AC
Output voltage (nominal): 24 V DC
Max. output current: 1.7 A
Power: 40.8 W
Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

MTBF: 307.4 K hours min. MIL-HDBK-217F (25 °C)
Connection: Screw Din Terminal
Input: 3 poles, Output: 6 poles
Protection: Output voltage shutdown, recovers upon re-power
Withstand voltage: Input-Output: 3 kV AC, Input-FG: 2 kV AC, Output-FG: 0.5 kV AC

Type: Slim-line type

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Input voltage: 100 - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 1.7 A

Output current (max.) - rounded: 1.7 A

: 40.8 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 41 x 92 mm

Weight: 280 g

Output voltage (max.): 30 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -20 °C

Manufacturer part #: TC-14382292

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 41 mm

Height: 92 mm

Length: 100 mm

Type: TC-YSD60L-24001700

Consumption (standby): 0.7 W

Efficiency: 88 %

Plastic free packaging: Plastic-free packaging
