Name: TRU COMPONENTS TC-14382296 Rail mounted PSU (DIN) Consumption (standby) 0.5 W 12 V DC 1.67 A 20 W No. of outputs:1 x Con
Brand: TRU COMPONENTS
SKU: 3595574
Availability: InStock

White DIN-rail power supply module with screw terminals, DC OK indicator, and output adjustment knob.<br>

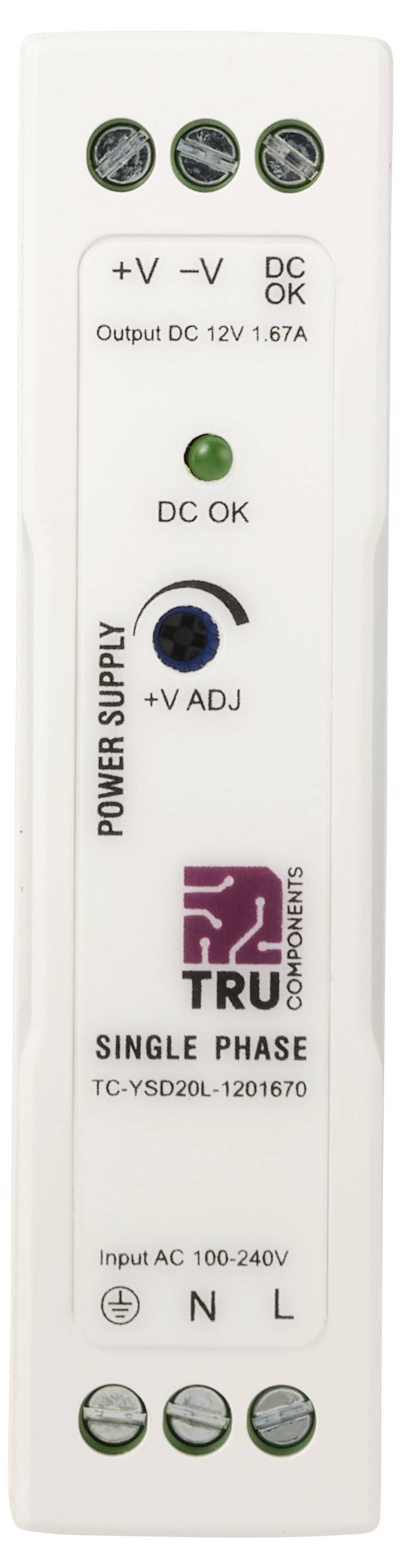

Single-phase power supply module labeled TRU Components, with DC OK indicator, +V adjust control, and AC input/output terminals.

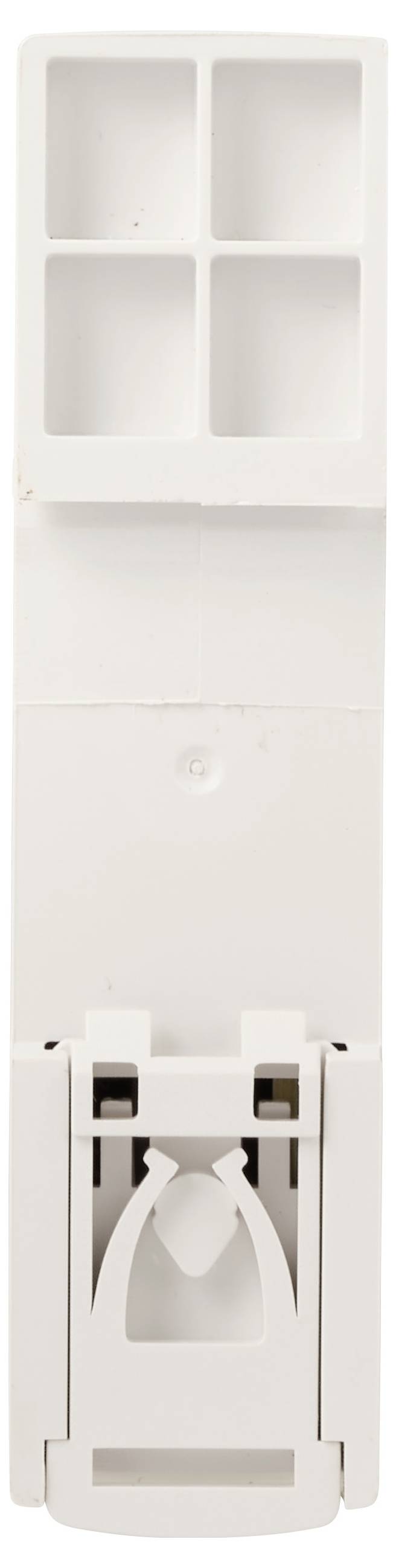

White plastic wall-mounted dispenser with four small top compartments and a lower locking mechanism, shown front view.

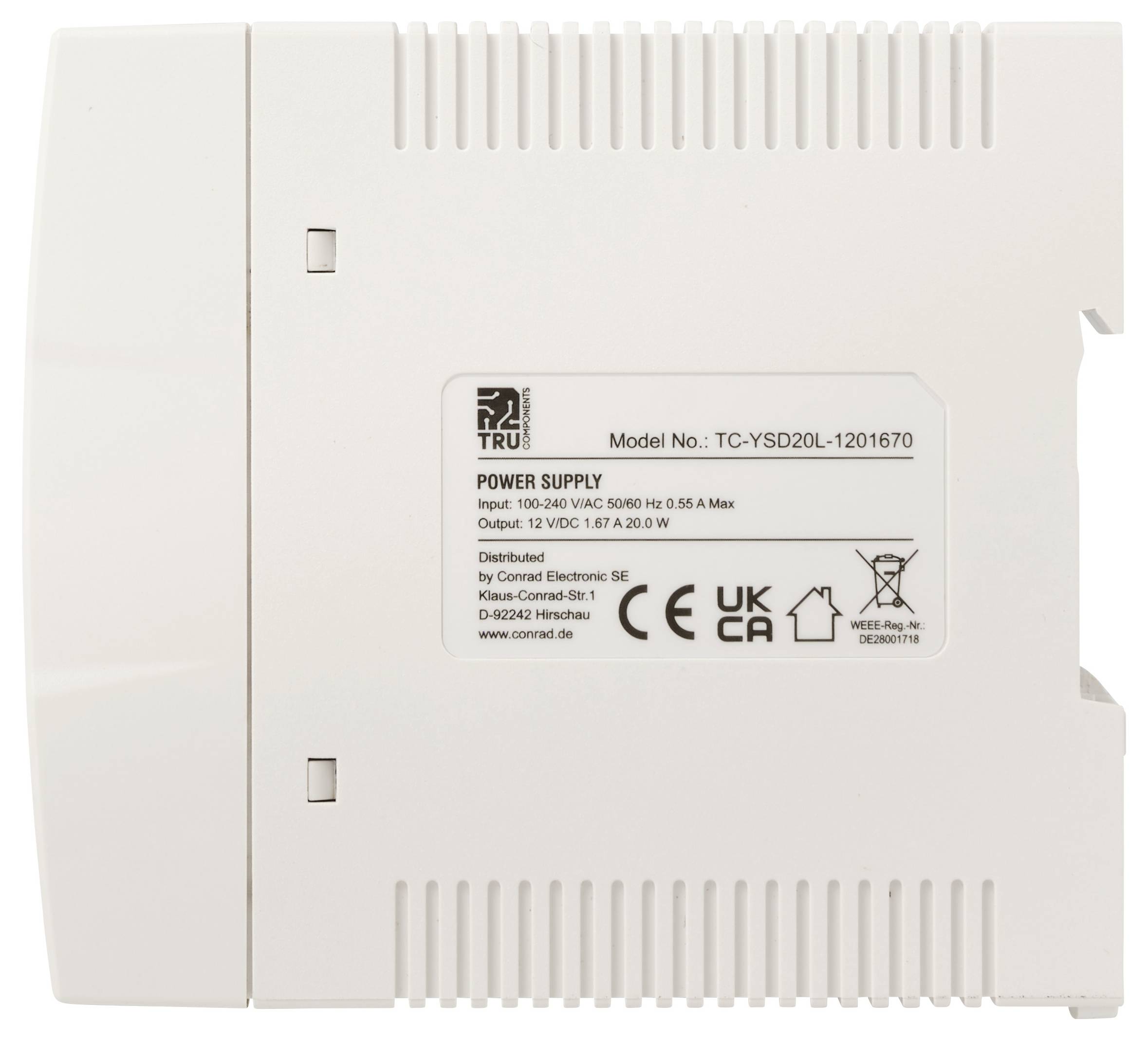

White electrical power supply unit with label showing model TC-YS20L-1201670, output 12V DC, 1.67A, 20W.

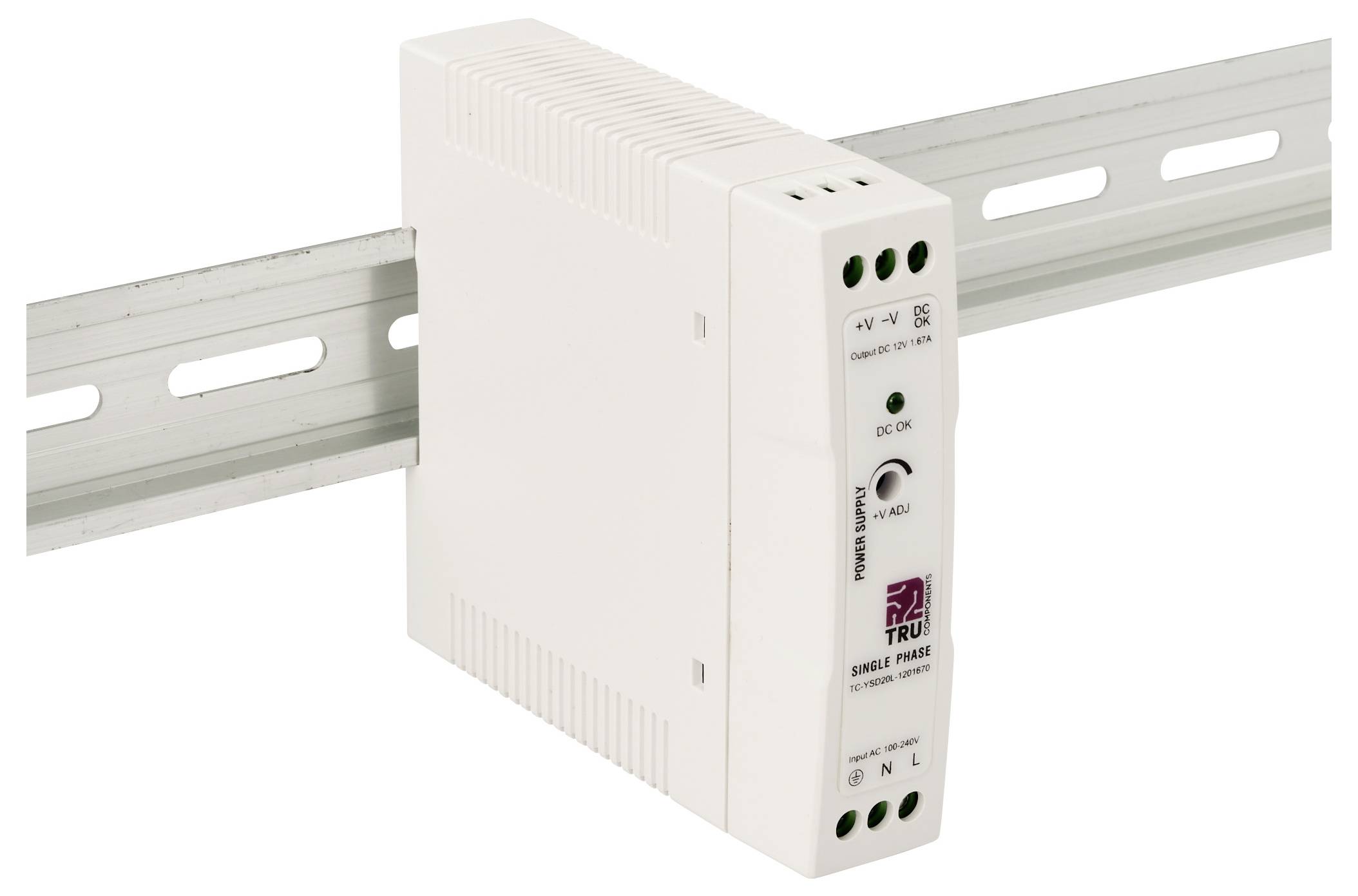

DIN-rail mounted white single-phase power supply module with front status LEDs and adjustment dial, shown isolated on a white background.

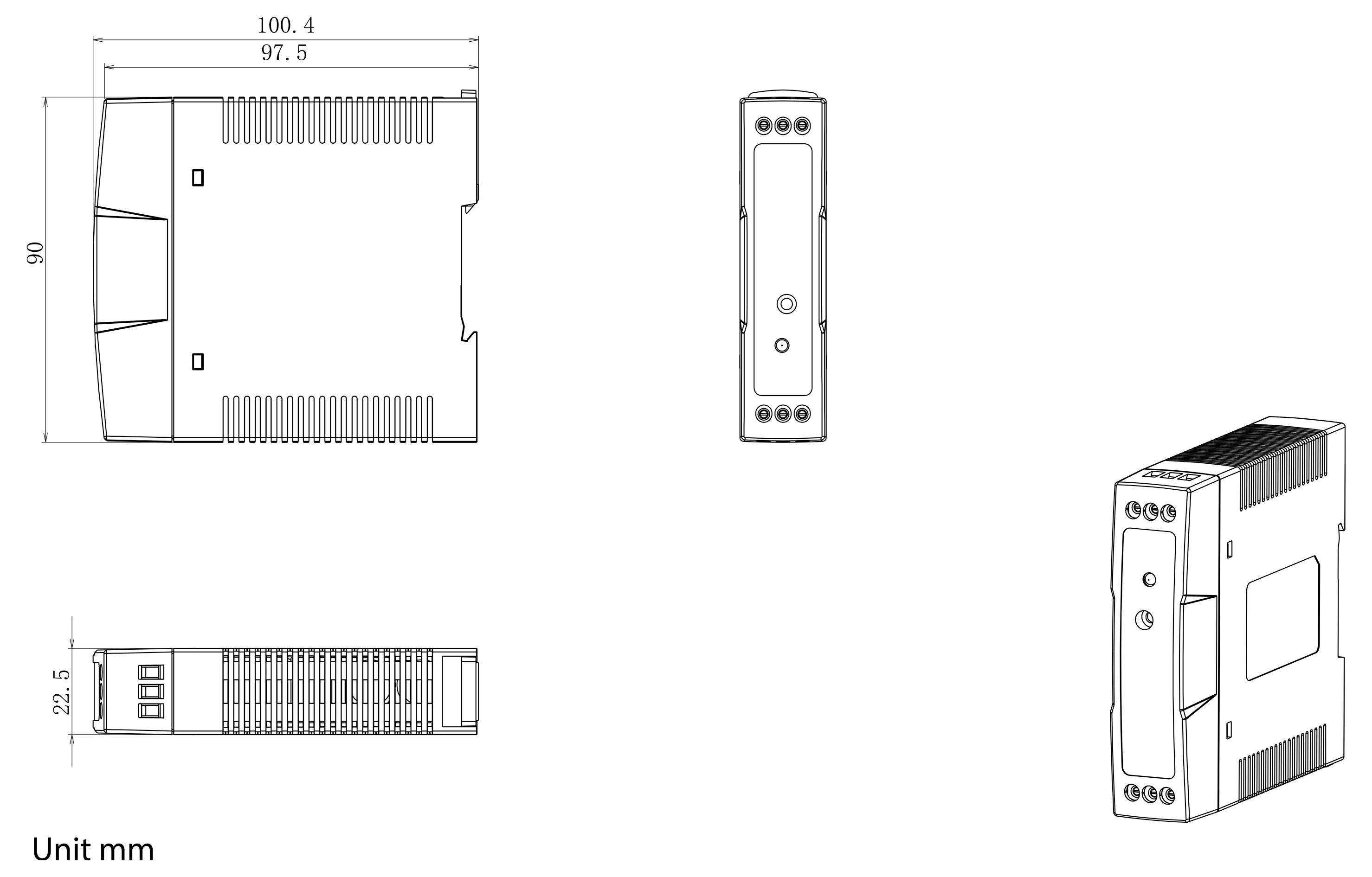

Technical drawing of a compact electronic module shown in front, side, top, and 3D views, with dimensions labeled in millimeters.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

499 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YSD20L-1201670 Din Rail Power Supply 12 V DC 1.67 A 20 W

Input voltage range: 100 - 240 V AC
Output voltage (nominal): 12 V DC
Max. output current: 1.67 A
Power: 20 W
Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

MTBF: 317.7 K hours min. MIL-HDBK-217F (25 °C)
Connection: Screw Din Terminal
Input: 3 poles, Output: 3 poles
Protection: Output voltage shutdown, recovers upon re-power
Withstand voltage: Input-Output: 3 kV AC, Input-FG: 2 kV AC, Output-FG: 0.5 kV AC

Type: Slim-line type

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Input voltage: 100 - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 1.67 A

Output current (max.) - rounded: 1.67 A

: 20 W

Output type (power supply units): Adjustable

Output voltage (nominal): 12 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 23 x 92 mm

Weight: 150 g

Output voltage (max.): 13.2 V DC

Output voltage (min.): 10.8 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -20 °C

Manufacturer part #: TC-14382296

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 23 mm

Height: 92 mm

Length: 100 mm

Type: TC-YSD20L-1201670

Consumption (standby): 0.5 W

Efficiency: 80 %

Plastic free packaging: Plastic-free packaging
