Name: TRU COMPONENTS TC-14382308 Rail mounted PSU (DIN) Consumption (standby) 0.8 W 48 V DC 1.25 A 60 W No. of outputs:1 x Con
Brand: TRU COMPONENTS
SKU: 3595577
Availability: InStock

White DIN-rail power supply unit with green terminal blocks and front labels, shown in product view.

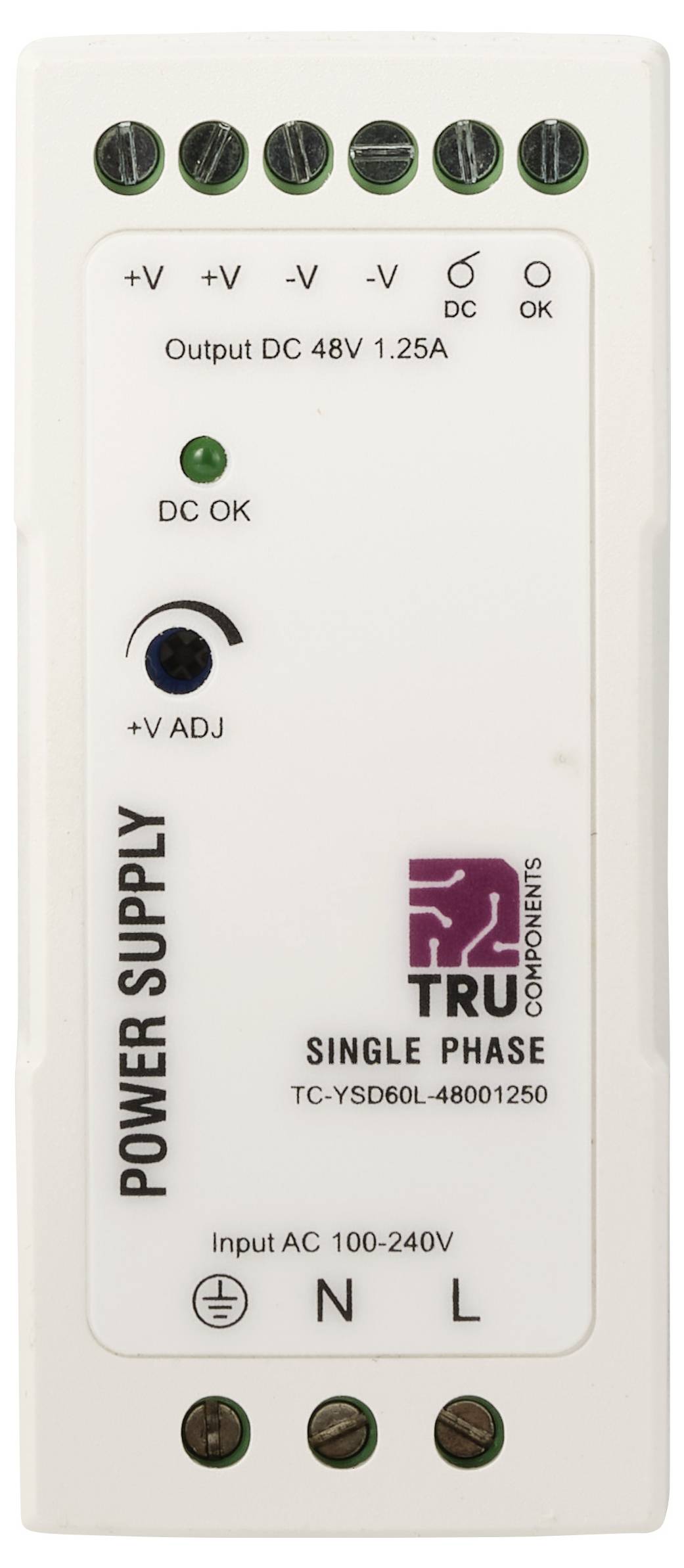

White TRU Components single-phase power supply with terminals for AC input and DC 48V 1.25A output, plus voltage adjustment and DC OK indicator.

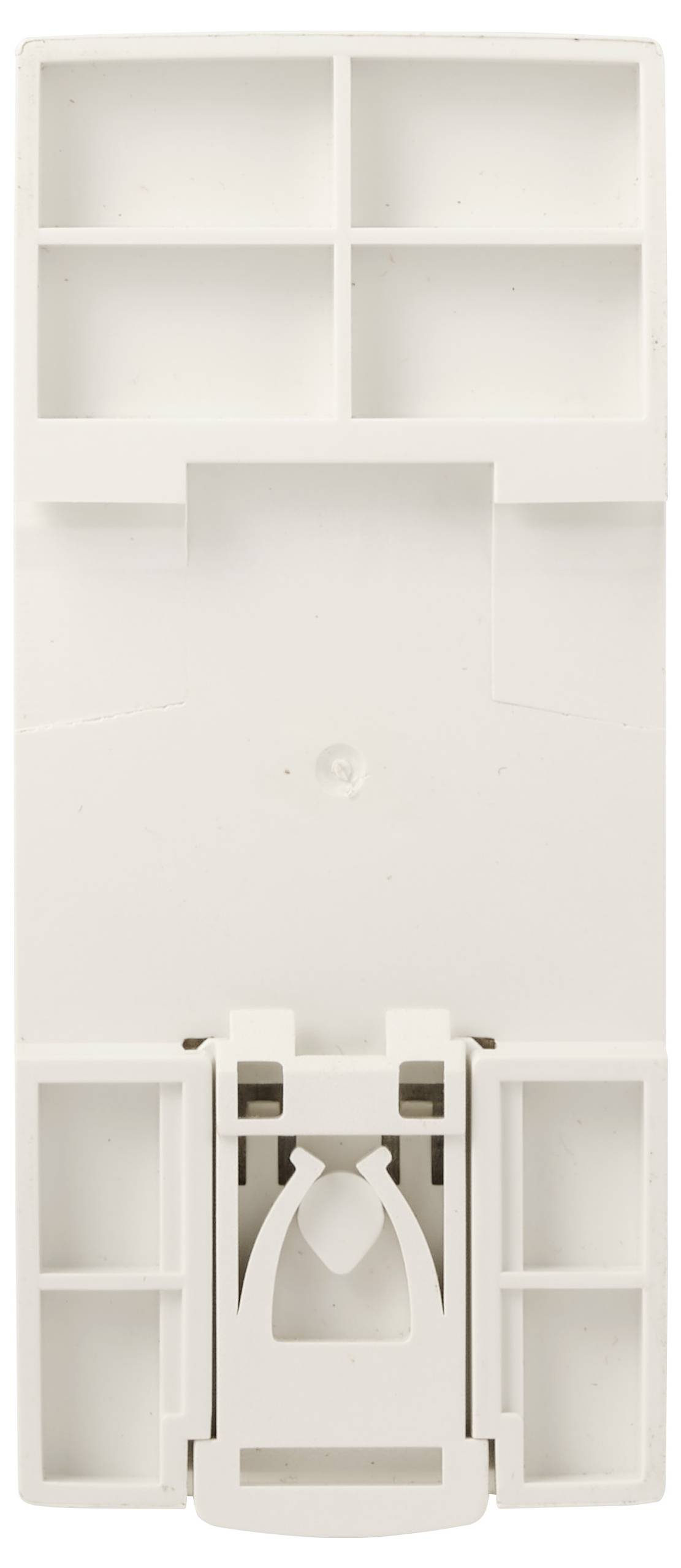

White plastic mounting bracket or wall plate with four upper compartments and a central locking clip at the bottom.

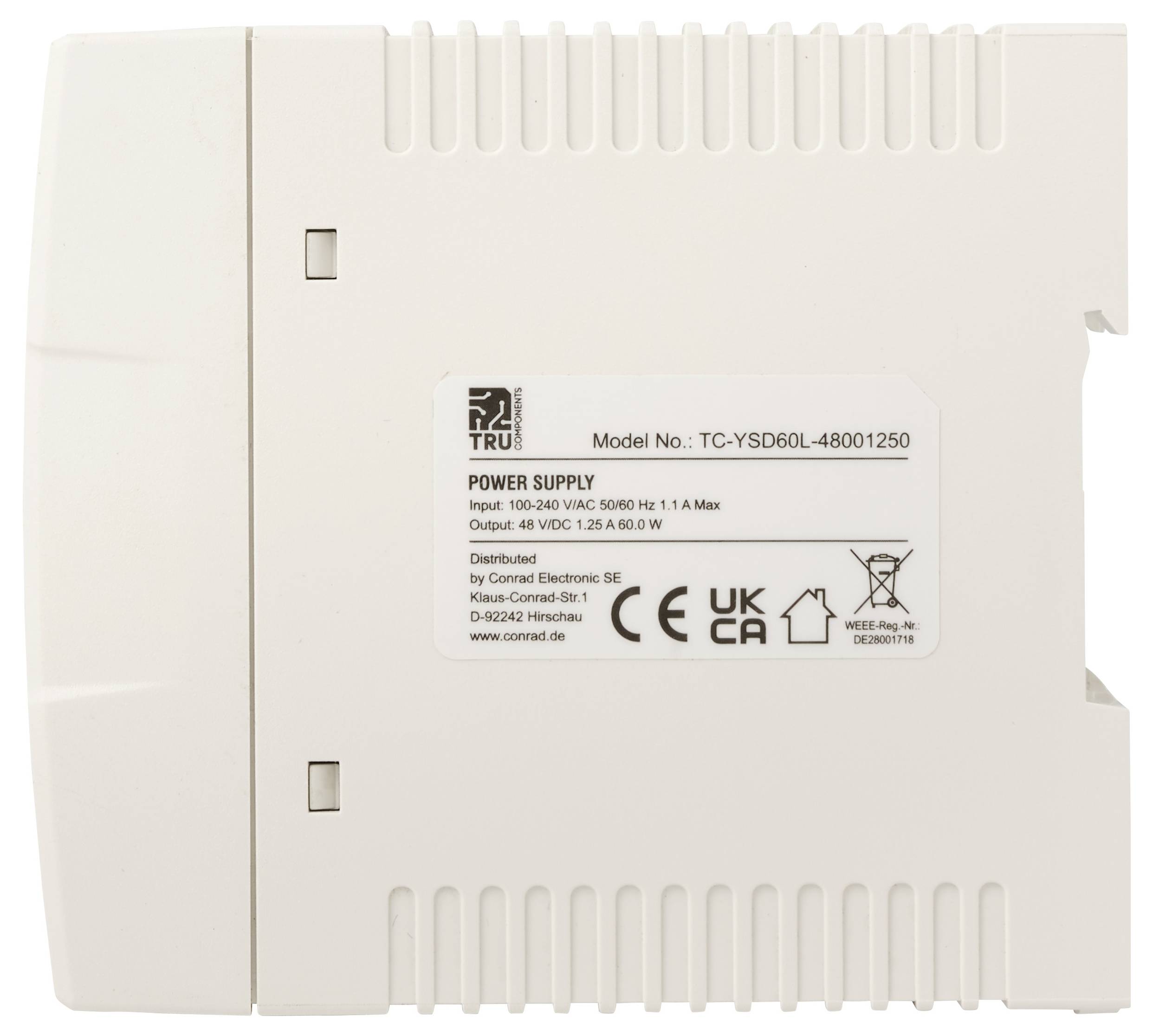

White electrical power supply unit with label showing model TC-YS60L-48001250 and output 48V DC, 1.25A, 60W.

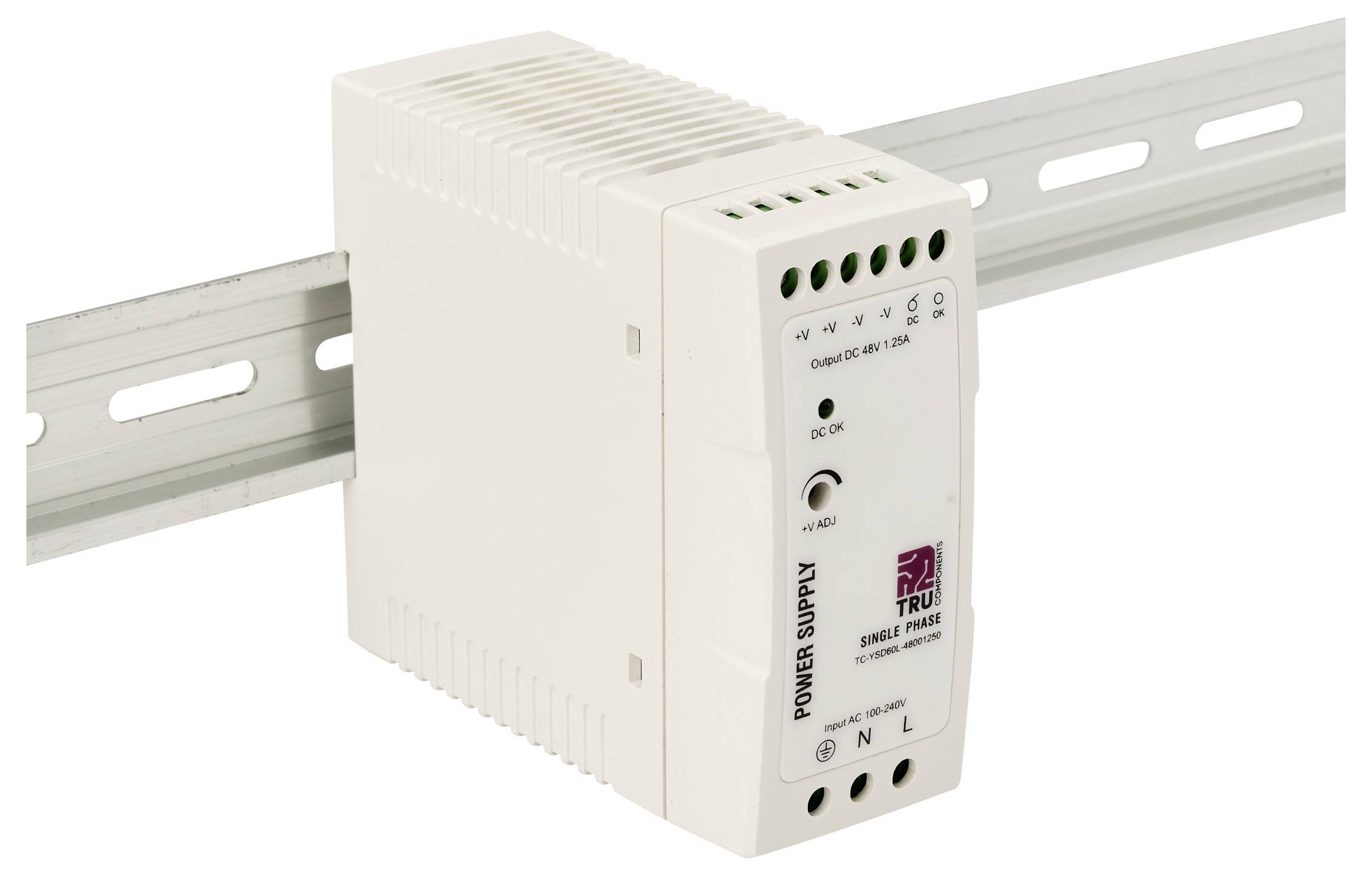

DIN-rail mounted DC power supply module with front status lights and adjustment knob, shown isolated on a white background.

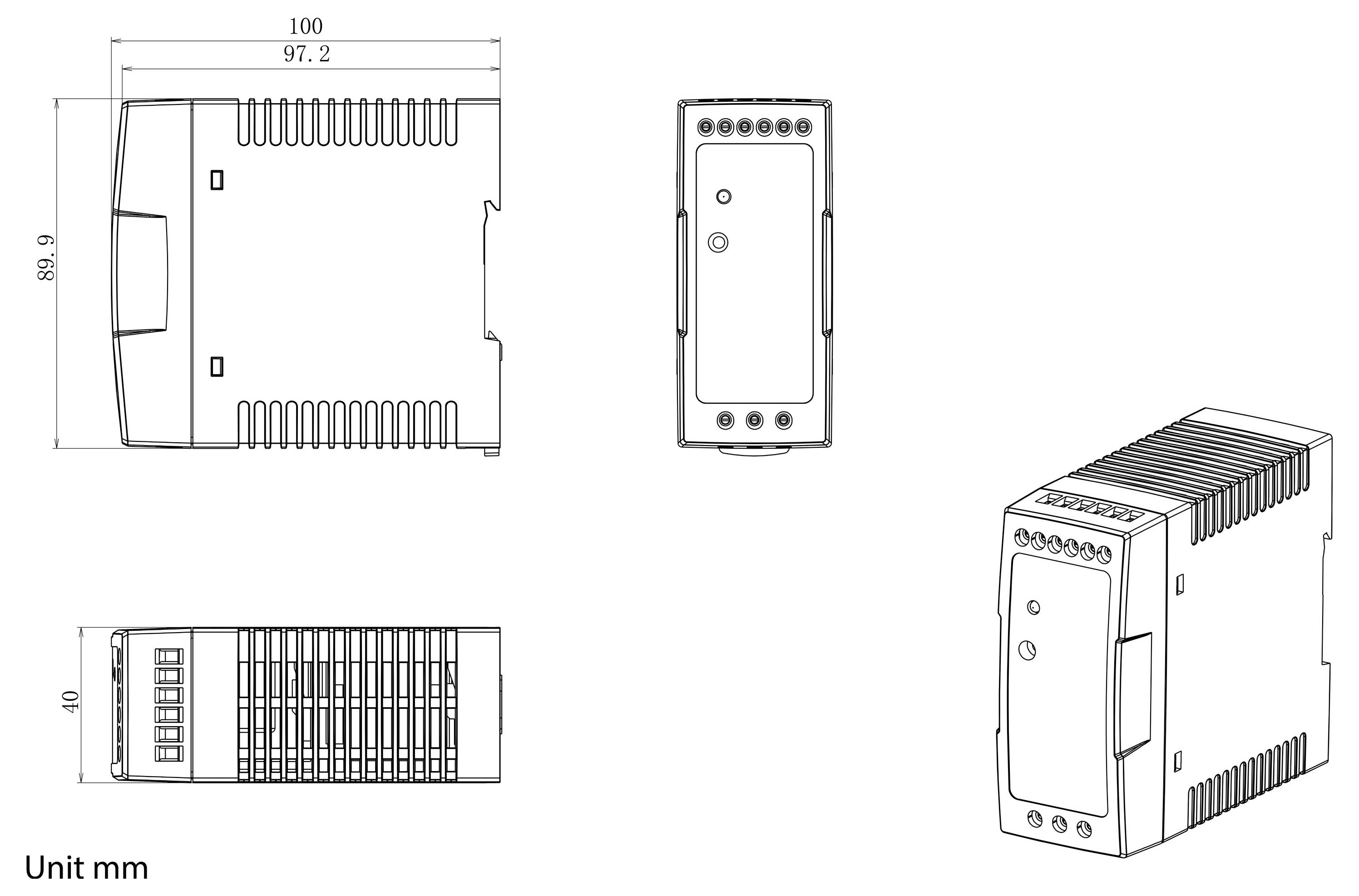

Technical drawing of a rectangular electronic module shown in front, side, top, and perspective views with dimensions in millimeters: 100 wide, 89.9 high, 40 deep.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

500 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YSD60L-48001250 Din Rail Power Supply 48 V DC 1.25 A 60 W

Input voltage range: 100 - 240 V AC
Output voltage (nominal): 48 V DC
Max. output current: 1.25 A
Power: 60 W
Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

MTBF: 334.1 K hours min. MIL-HDBK-217F (25 °C)
Connection: Screw Din Terminal
Input: 3 poles, Output: 6 poles
Protection: Output voltage shutdown, recovers upon re-power
Withstand voltage: Input-Output: 3 kV AC, Input-FG: 2 kV AC, Output-FG: 0.5 kV AC

Type: Slim-line type

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Input voltage: 100 - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 1.25 A

Output current (max.) - rounded: 1.25 A

: 60 W

Output type (power supply units): Adjustable

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 41 x 92 mm

Weight: 280 g

Output voltage (max.): 56 V DC

Output voltage (min.): 48 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -20 °C

Manufacturer part #: TC-14382308

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 41 mm

Height: 92 mm

Length: 100 mm

Type: TC-YSD60L-48001250

Consumption (standby): 0.8 W

Efficiency: 78 %

Plastic free packaging: Plastic-free packaging

Variants(All information include VAT, plus shipping costs)

Output current (max.) - rounded

Output voltage (nominal)

Power

TRU COMPONENTS TC-14382308 Rail mounted PSU (DIN) Consumption (standby) 0.8 W 48 V DC 1.25 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:3595577

Fast track dispatch on Thu 29 Oct

500 Piece(s)Conrad Electronic

This article

1.25 A

48 V DC

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

TRU COMPONENTS TC-14382292 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 24 V DC 1.7 A 40.8 W No. of outputs:1 x Content 1 pc(s)

Item no:3595573

Fast track dispatch on Thu 29 Oct

499 Piece(s)Conrad Electronic

1.7 A

24 V DC

40.8 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

TRU COMPONENTS TC-14382296 Rail mounted PSU (DIN) Consumption (standby) 0.5 W 12 V DC 1.67 A 20 W No. of outputs:1 x Content 1 pc(s)

Item no:3595574

Fast track dispatch on Thu 29 Oct

499 Piece(s)Conrad Electronic

1.67 A

12 V DC

20 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

TRU COMPONENTS TC-14382300 Rail mounted PSU (DIN) Consumption (standby) 1 W 5 V DC 10 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:3595575

Fast track dispatch on Thu 29 Oct

500 Piece(s)Conrad Electronic

10 A

5 V DC

50 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

TRU COMPONENTS TC-14382312 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:3595578

Fast track dispatch on Thu 29 Oct

494 Piece(s)Conrad Electronic

2.5 A

24 V DC

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

TRU COMPONENTS TC-14382320 Rail mounted PSU (DIN) Consumption (standby) 1.8 W 24 V DC 4 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:3595580

Fast track dispatch on Thu 29 Oct

478 Piece(s)Conrad Electronic

4 A

24 V DC

96 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

TRU COMPONENTS TC-14382284 Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:3595571

Currently not available

Conrad Electronic

1 A

24 V DC

24 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

TRU COMPONENTS TC-14382288 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 12 V DC 3.33 A 40 W No. of outputs:1 x Content 1 pc(s)

Item no:3595572

Currently not available

Conrad Electronic

3.33 A

12 V DC

40 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

TRU COMPONENTS TC-14382304 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:3595576

Currently not available

Conrad Electronic

5 A

12 V DC

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

TRU COMPONENTS TC-14382316 Rail mounted PSU (DIN) Consumption (standby) 1 W 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:3595579

Currently not available

Conrad Electronic

7.5 A

12 V DC

90 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*
