Name: TRU COMPONENTS TC-14382320 Rail mounted PSU (DIN) Consumption (standby) 1.8 W 24 V DC 4 A 96 W No. of outputs:1 x Conten
Brand: TRU COMPONENTS
SKU: 3595580
Availability: InStock

White DIN-rail power supply unit labeled 'POWER SUPPLY' and 'SINGLE PHASE,' with green terminal connectors, DC 24V 4A output, and adjustment knob.

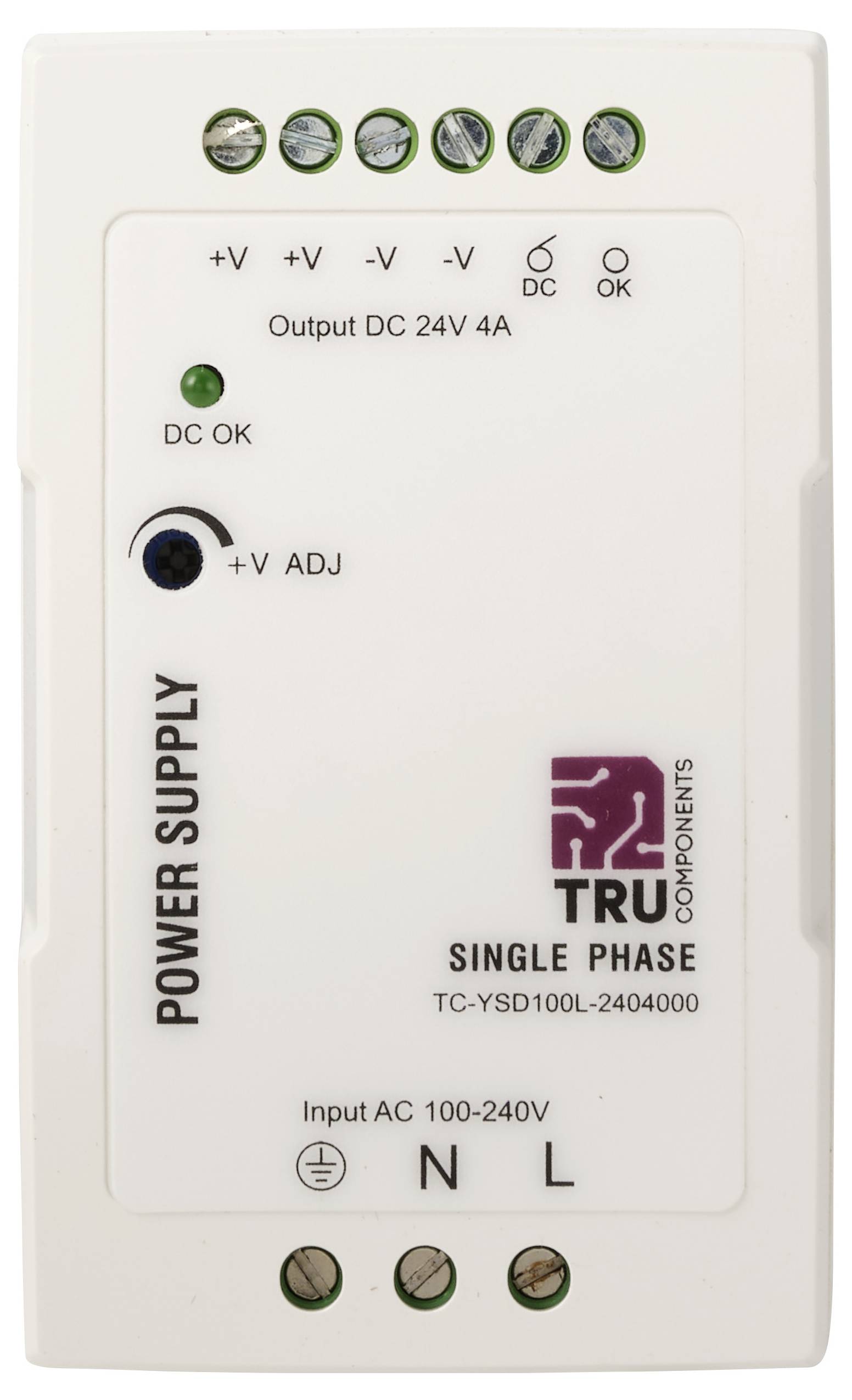

Single-phase power supply unit labeled 'Output DC 24V 4A' and 'Input AC 100-240V,' with status LED and voltage adjust knob.<br>

White plastic organizer with multiple small top compartments, a large center panel, and two bottom side doors, shown closed against a plain background

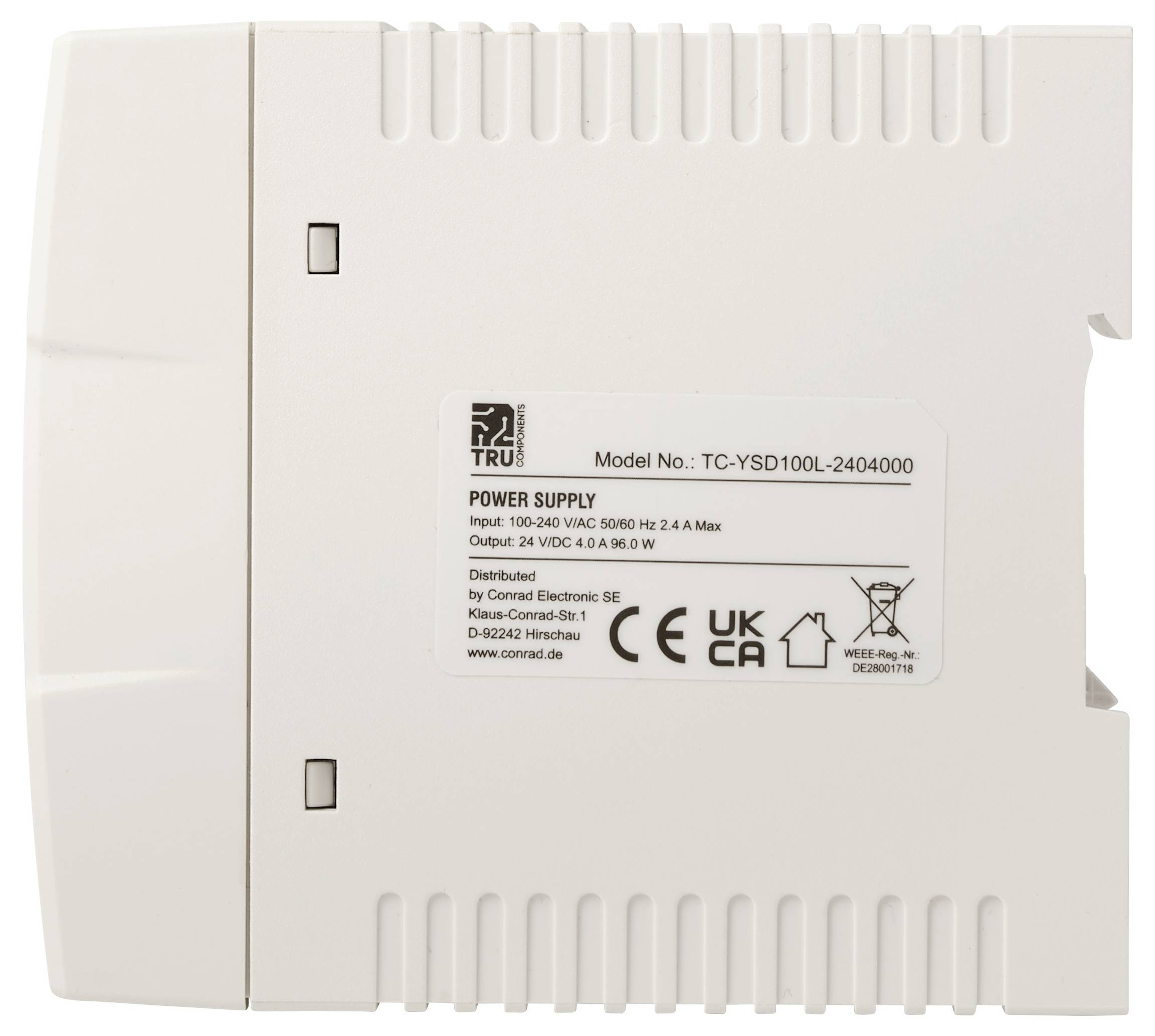

White electrical power supply unit with label showing model TC-YSD100L-2404000 and 24 VDC output.

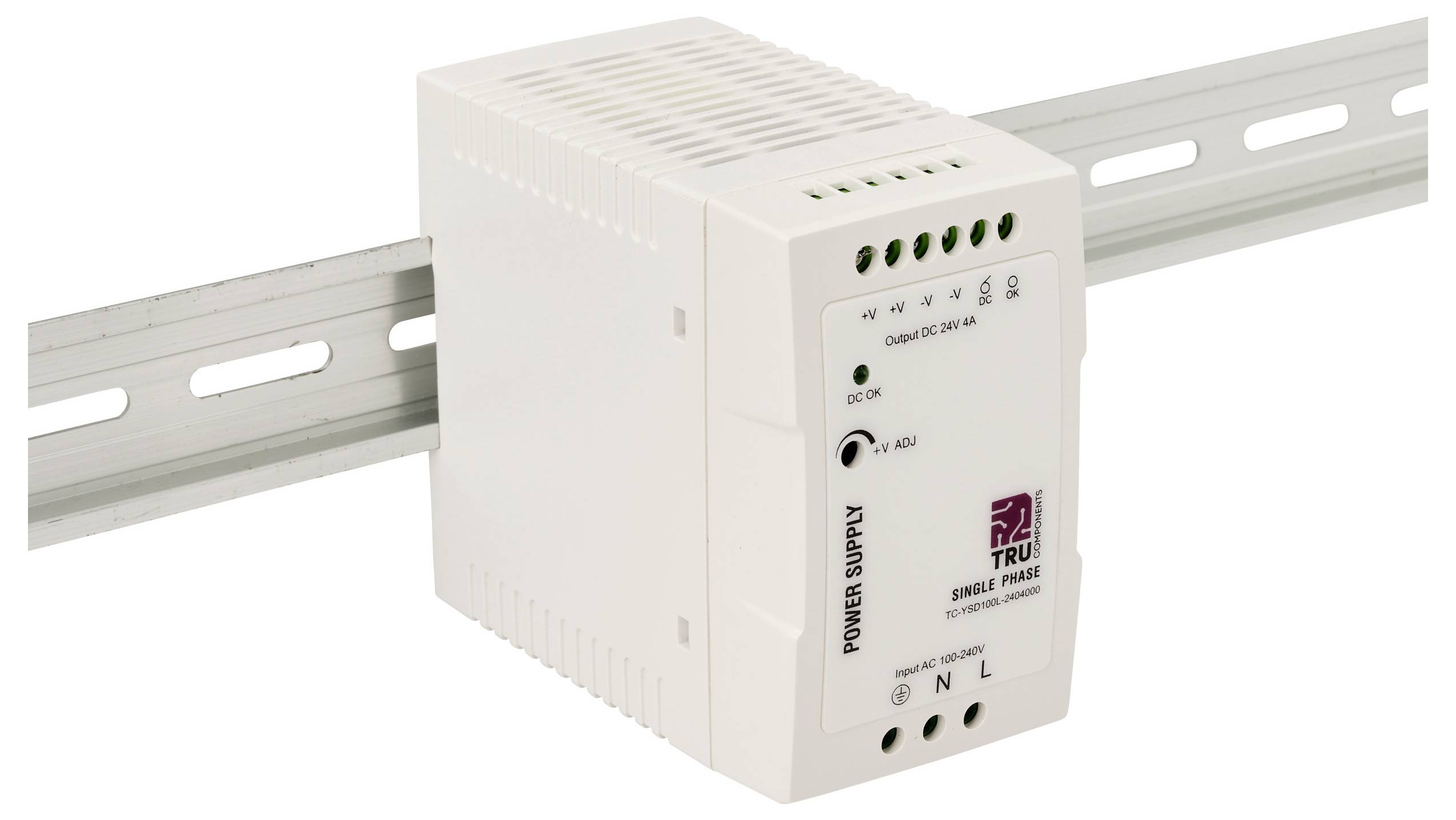

DIN-rail mounted single-phase power supply module with status LEDs and terminal labels on a white background.

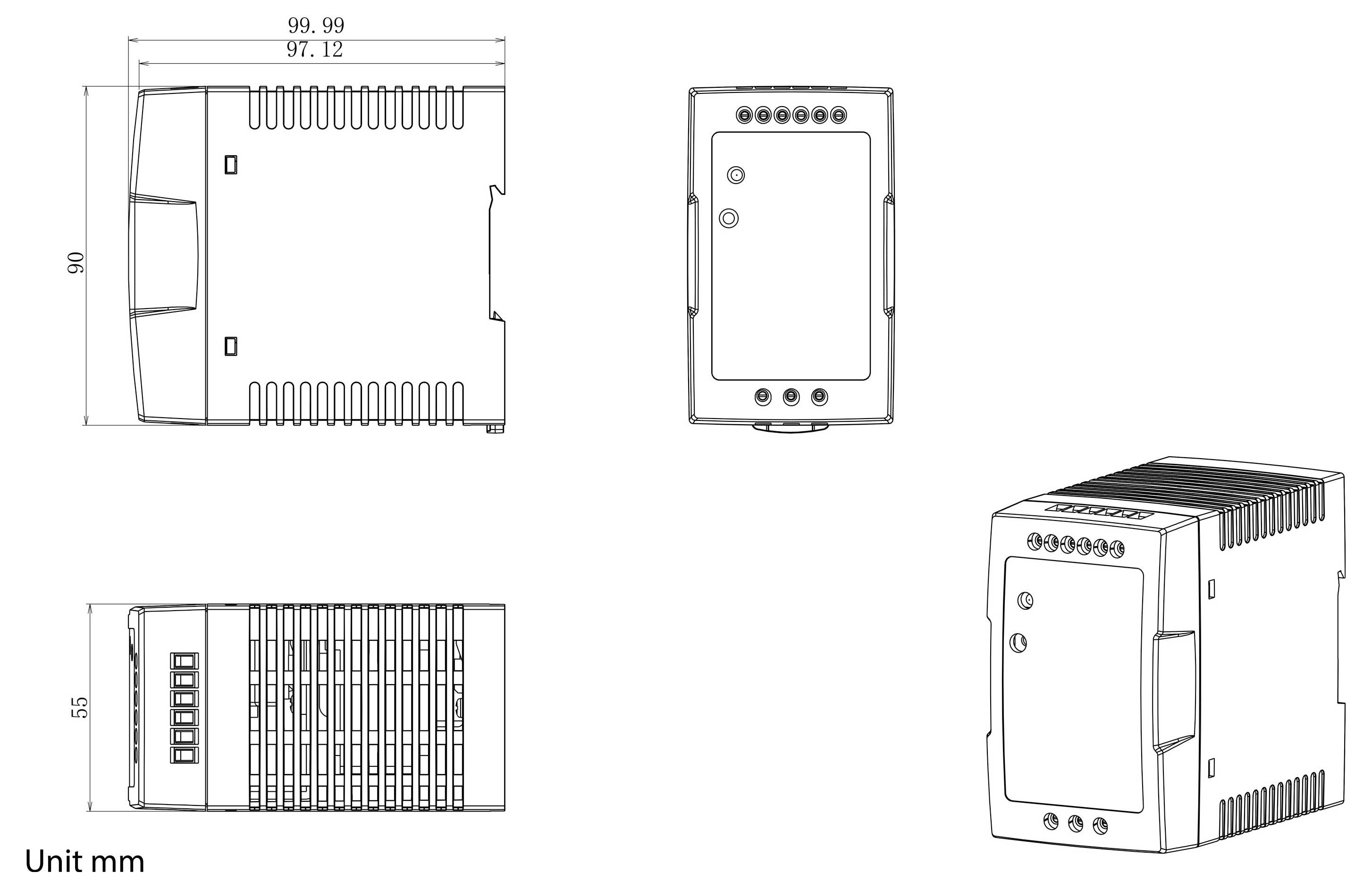

Technical line drawing of a rectangular electronic enclosure shown in front, side, top, and perspective views with dimensions in millimeters.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

478 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 35.99 / piece)

€ 35.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YSD100L-2404000 Din Rail Power Supply 24 V/DC 4 A 96 W

Input voltage range: 100 - 240 V AC
Output voltage (nominal): 24 V DC
Max. output current: 4 A
Power: 96 W
Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

MTBF: 348.7 K hours min. MIL-HDBK-217F (25 °C)
Connection: Screw Din Terminal
Input: 3 poles, Output: 6 poles
Protection: Output voltage shutdown, recovers upon re-power
Withstand voltage: Input-Output: 3 kV AC, Input-FG: 2 kV AC, Output-FG: 0.5 kV AC

Type: Slim-line type

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Input voltage: 100 - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 4 A

Output current (max.) - rounded: 4 A

: 96 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 55 x 92 mm

Weight: 400 g

Output voltage (max.): 30 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 60 °C

Operating temperature (min.): -10 °C

Manufacturer part #: TC-14382320

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 55 mm

Height: 92 mm

Length: 100 mm

Type: TC-YSD100L-2404000

Consumption (standby): 1.8 W

Efficiency: 86 %
