Name: Ubiquiti Networks Wi-Fi repeater Device Bridge Switch UDB-Switch LAN PoE support
Brand: Ubiquiti Networks
SKU: 3738688
Availability: InStock

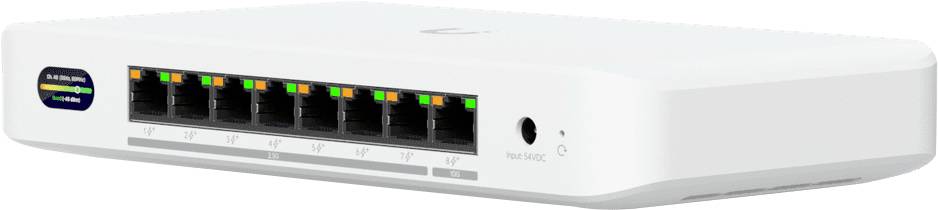

A white network switch with eight Ethernet ports is shown. A label with colored indicators is visible on the left side.

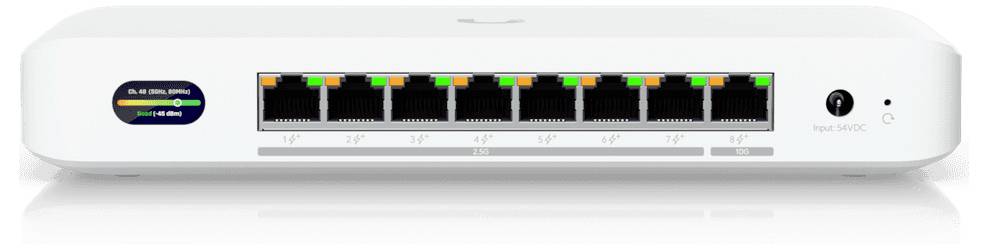

A white network switch with eight Ethernet ports, each with status lights. A status indicator screen is on the left side.

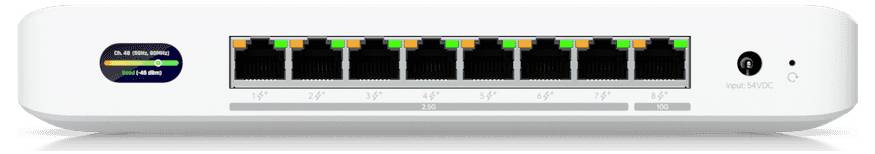

'Network switch with eight Ethernet ports and connectivity indicators, showing active connections. Power button on the right side.'

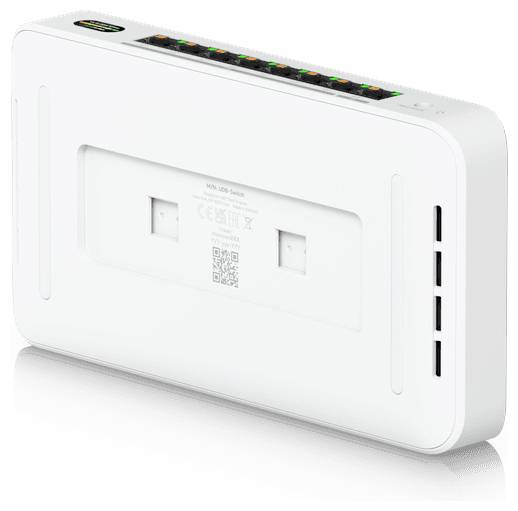

A white Wi-Fi router with multiple indicator lights and ports on top, featuring a sleek, rectangular design with rounded edges.

White rectangular object with rounded corners and a circular button, appears to be a smart home device or speaker.

1/6

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 369.00 / piece)

€ 369.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ubiquiti wireless device bridge switch • BE10000 • 2x2 • Indoor • 1x 10 GbE • 7x 2.5 GbE • 8x PoE+ • Unifi • UDB switch

Number of basic switching RJ-45 Ethernet ports: 7
10G support
DC/PoE power supply included Power over Ethernet (PoE)

Technical specifications

Power source DC / PoE

Product type: Wi-Fi repeater

Type: Device Bridge Switch

Function: Repeater

Wi-Fi standard: IEEE802.11a
IEEE 802.11be
IEEE802.11ax
IEEE802.11ac
IEEE802.11n

Wi-Fi frequency band: 6 GHz

Features: PoE support

Interfaces: Gigabit LAN (10 Gbps)

No. of LAN ports: 8 x

No. of Gigabit LANs: 8 x

Dim: (W x H x D) 212.9 x 32.5 x 113 mm

Width: 212.9 mm

Height: 32.5 mm

Depth: 113 mm

Weight: 770 g

Link: LAN

Factory colour: White

UKCA: yes

Operating temperature (T-T): -30 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 7

Total Power over Ethernet (PoE) budget: 185 W

Power over Ethernet (PoE) power per port: 30 W

Power over Ethernet (PoE): yes

10G Ethernet (copper) ports quantity: 1

Operating relative humidity (H-H): 5 - 95 %

10G support: yes

Power consumption (max): 25 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738688 Ubiquiti Networks Wi-Fi repeater Device Bridge Switch UDB-Switch LAN PoE support

Description

Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz capable WiFi 7 bridging integration for seamless, high-performance wireless uplink connectivity to Unifi WiFi.
