USB and IEEE-1394 connectors Connector, mount 2411 07 157794 Lumberg Content: 1 pc(s)
Part number:
Item no:
Product type
USB connector
Connector type
Connector, mount
Number of pins
4
USB type
B
Type
2411 07
Datasheet (PDF)
Number
Total (€ 1.79 / piece)
€ 1.79
incl. VAT
14-day return policy included
Technical specifications
- Plug-in force ≤ 35 N
- Pull force ≥ 10 N
- Continuous resistance ≤ 30 mΩ
- Mating cycles 1500
- Contact carrier PBT, V-0 acc. To UL94
- Housing: CuZn/steel, nickel-plated
- Contact spring: CuZn, in the plug area gold-plated, tin plated in the soldering area
- Rated surge voltage 500 V AC
- Type
2411 07
- Product type
USB connector
- Connector type
Connector, mount
- Number of pins
4
- USB type
B
- Case material
CuZn, Ni-plated
- Manufacturer part #
157794
- Content
1 pc(s)
- Nominal voltage (details)
30 V DC
- Nominal current (details)
1.5 A
- Features
L-shaped
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3805173 USB and IEEE-1394 connectors Connector, mount 2411 07 157794 Lumberg Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805173 USB and IEEE-1394 connectors Connector, mount 2411 07 157794 Lumberg Content: 1 pc(s)
Description

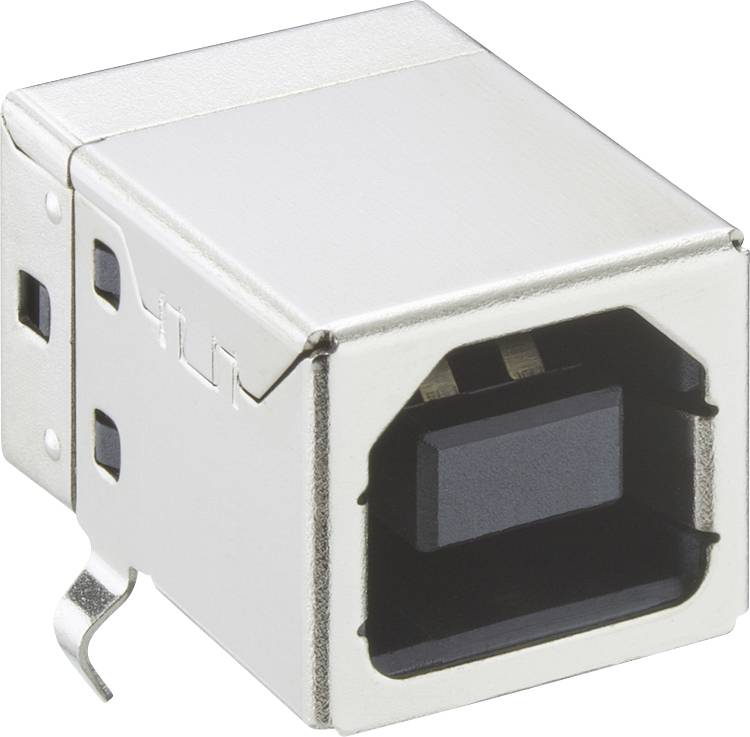

USB 2.0-Installation coupling Type B, angled design, for PCBs
This text is machine translated.
This text is machine translated.
