USB and IEEE-1394 connectors Twin connector 2410 13 157798 Lumberg Content: 1 pc(s)
Part number:
Item no:
Product type
USB connector
Connector type
Twin connector
Number of pins
4
USB type
A
Type
2410 13
Datasheet (PDF)
Number
Total (€ 2.99 / piece)
€ 2.99
incl. VAT
14-day return policy included
Technical specifications
- Number of pins: 2 x 4
- Plug-in force ≤ 35 N
- Pull force ≥ 10 N
- Continuous resistance ≤ 30 mΩ
- Mating cycles 1500
- Contact carrier PBT, V-0 acc. To UL94
- Ground contact spring: CuZn, nickel-plated
- Housing: CuZn/Fe, nickel-plated
- Contact spring: Tin-plated and gold-plated CuZn
- Rated surge voltage 500 V/60 s.
- Type
2410 13
- Product type
USB connector
- Connector type
Twin connector
- Number of pins
4
- USB type
A
- Case material
CuZn, Ni-plated
- Manufacturer part #
157798
- Content
1 pc(s)
- Nominal voltage (details)
30 V AC
- Nominal current (details)
≤ 1.5 A
- Features
L-shaped
- Max. temperature
85 °C
- Min. temperature
-25 °C
Documents & Downloads
Datasheet
Datasheet 3805169 USB and IEEE-1394 connectors Twin connector 2410 13 157798 Lumberg Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805169 USB and IEEE-1394 connectors Twin connector 2410 13 157798 Lumberg Content: 1 pc(s)
Description

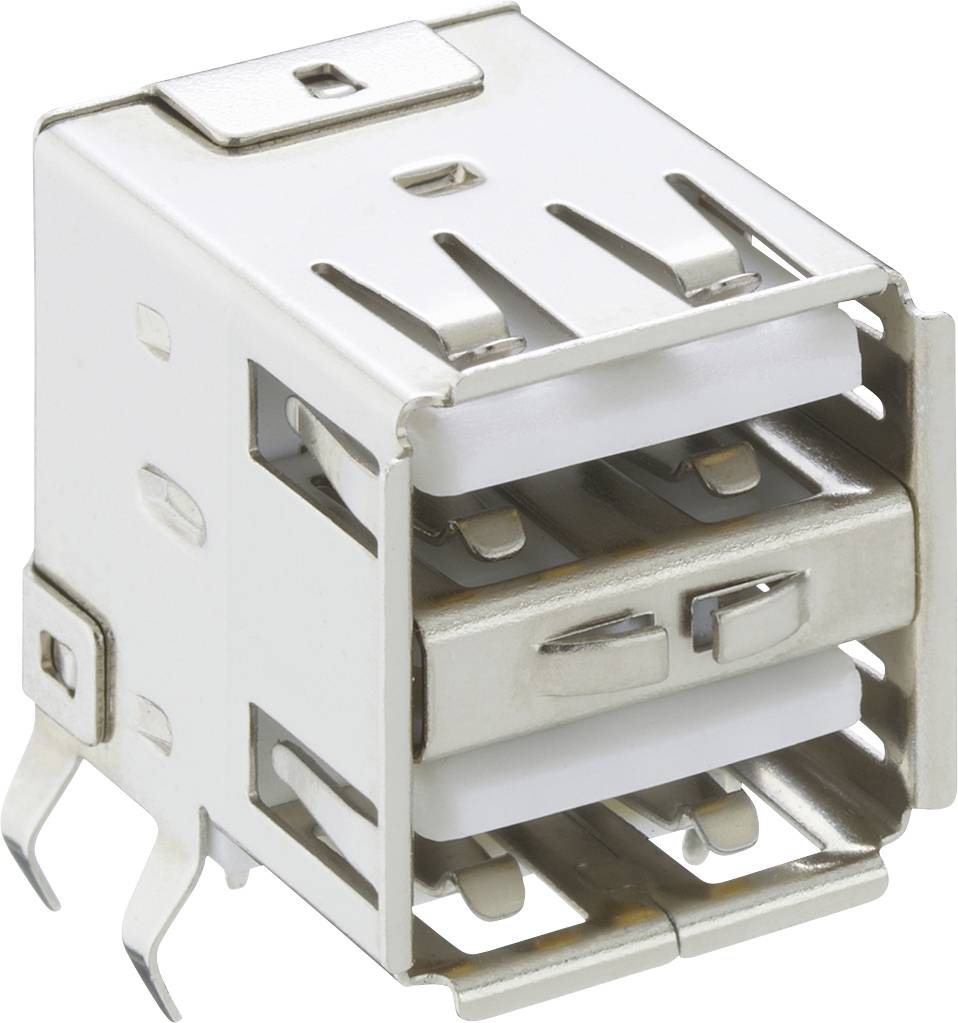

Double USB 2.0 panel-mounted coupling type A, angled design, for PCBs, with front ground contacts
