A rectangular USB Type A female connector with four pins and metal casing, used for connecting USB devices for data transfer or power.

A rectangular USB Type A female connector with four pins and metal casing, used for connecting USB devices for data transfer or power.

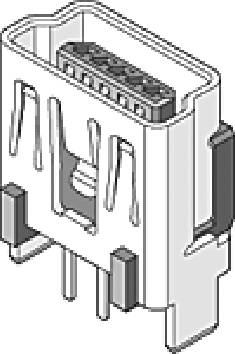

Socket in a rectangular shape with multiple contacts and mounting brackets.

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

5

USB type

Mini B

Datasheet (PDF)

Molex

Fast track dispatch on Tue 20 Oct

30 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 6.99

-14 %

€ 5.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

USB-On-the-GO

Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs
This text is machine translated.

Our service for you

Technical specifications

Application: Cable to PCBNumber of rows: 1Inputs: 1Recommended PCB thickness: 0.80 mmSolder pin length 2.00 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldGrid dimension - Crimp range: 0.80 mmGrid dimension - plug-in range: 0.80 mmRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Vertical

Number of pins: 5

USB type: Mini B

Connection: Soldering

Manufacturer part #: 5000751517

Factory colour: Black

Content: 1 pc(s)

Contact material: Copper alloy

Nominal voltage (details): 30 V DC/AC

Nominal current (details): 1 A

RoHS-compliant: Yes

Features: + shielding
+ locking mechanism

Max. temperature: +85 °C

Min. temperature: -40 °C

Engineering Part No: 500075-1517

Engineering Series Name: USB MINI-B VERT RCPT

Engineering Series No: 500075

Documents & Downloads

Datasheet

Datasheet 2448944 USB-On-the-GO Socket Molex MOL Micro Solutions Vertical 5000751517 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2448944 USB-On-the-GO Socket Molex MOL Micro Solutions Vertical 5000751517 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2448944 USB-On-the-GO Socket Molex MOL Micro Solutions Vertical 5000751517 Molex Content: 1 pc(s)

Description

Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs

Description

Mini USB, B-Receptacle, Vertical, Through Hole Solder Tails and Shell Tabs
