Name: V-TAC VT-24152-S LED transformer Constant voltage 150 W 6.25 A 24 V DC not dimmable 1 pc(s)
Brand: V-TAC
SKU: 3781494
Availability: InStock

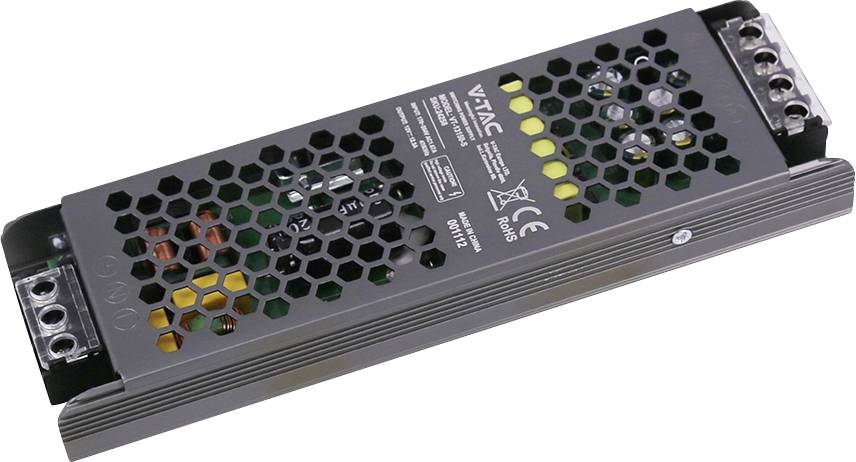

Black VMC electronic power module with hexagonal vent cover and terminal connectors at both ends.

V-TAC Slim Series LED power supply box, model VT-24152-S, showing a 24V 2.5A metal power supply unit.

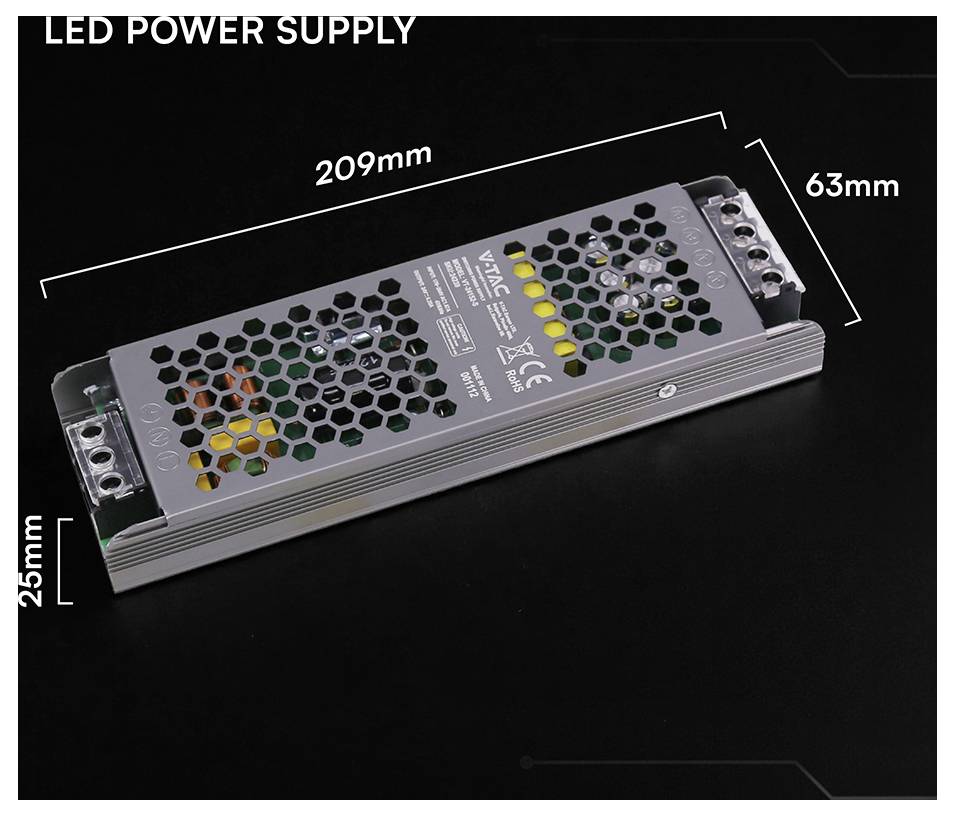

LED power supply shown on a black background with dimensions labeled 209 mm by 63 mm by 25 mm.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

48 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VT-24152-S 150W LED SLIM Power SUPPLY 24V 6.25A IP20

Constant voltage
24 V DC
6.25 A

Technical specifications

Material: Metal
Lifetime 20000 h
On/off switching cycles >15000

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 209 x 63 x 25 mm

Factory colour: Grey

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Max. output current: 6.25 A

Output current (max.) - rounded: 6.25 A

Operating voltage: 240 V

Protection class: IP20

LED driver features: not dimmable

: IP20

Connection: Punchdown block

Max. power: 150 W

No. of outputs: 1 x

Output current (min.): 6.25 A

Input voltage (max.): 264 V AC

Min. input voltage: 176 V AC

Weight: 0.33 kg

Power range: 150 W (max)

Width: 63 mm

Height: 25 mm

Length: 209 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

: No

Material: Metal

Input voltage: 220 V

Output voltage: 24 V

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

IP rating

Max. power

Output current (max.) - rounded

Output voltage (max.)

Output voltage (min.)

V-TAC VT-24152-S LED transformer Constant voltage 150 W 6.25 A 24 V DC not dimmable 1 pc(s)

Item no:3781494

Fast track dispatch on Wed 28 Oct

48 Piece(s)Conrad Electronic

This article

Punchdown block

IP20

150 W

6.25 A

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

V-TAC VT-13036 LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Item no:3781507

Fast track dispatch on Wed 28 Oct

44 Piece(s)Conrad Electronic

Punchdown block

IP67

36 W

3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

V-TAC VT-13036-S LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Item no:3781499

Fast track dispatch on Wed 28 Oct

90 Piece(s)Conrad Electronic

Punchdown block

IP20

36 W

3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

V-TAC VT-13060 LED transformer Constant voltage 60 W 5 A 12 V DC not dimmable 1 pc(s)

Item no:3781508

Fast track dispatch on Wed 28 Oct

37 Piece(s)Conrad Electronic

Open end cable

IP67

60 W

5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

V-TAC VT-13060-S LED transformer Constant voltage 60 W 5 A 12 V DC not dimmable 1 pc(s)

Item no:3781500

Fast track dispatch on Wed 28 Oct

60 Piece(s)Conrad Electronic

Punchdown block

IP20

60 W

5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

V-TAC VT-13075-S LED transformer Constant voltage 75 W 6.25 A 12 V DC not dimmable 1 pc(s)

Item no:3781501

Fast track dispatch on Wed 28 Oct

57 Piece(s)Conrad Electronic

Punchdown block

IP20

75 W

6.25 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

V-TAC VT-13100 LED transformer Constant voltage 100 W 8.3 A 12 V DC not dimmable 1 pc(s)

Item no:3781509

Fast track dispatch on Wed 28 Oct

29 Piece(s)Conrad Electronic

Open end cable

IP67

100 W

8.3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

V-TAC VT-13120-S LED transformer Constant voltage 120 W 10 A 12 V DC not dimmable 1 pc(s)

Item no:3781502

Fast track dispatch on Wed 28 Oct

45 Piece(s)Conrad Electronic

Punchdown block

IP20

120 W

10 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

V-TAC VT-13150 LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Item no:3781510

Fast track dispatch on Wed 28 Oct

29 Piece(s)Conrad Electronic

Open end cable

IP67

150 W

12.5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

V-TAC VT-13150-S LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Item no:3781503

Fast track dispatch on Wed 28 Oct

44 Piece(s)Conrad Electronic

Punchdown block

IP20

150 W

12.5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781494 V-TAC VT-24152-S LED transformer Constant voltage 150 W 6.25 A 24 V DC not dimmable 1 pc(s)

Description

Power supply for LED strips, LED displays, etc.
IP67 entry protection
Overvoltage protection 115%-135%, switched off
Short-circuit protection, stable output voltage
Built-in EMI filter
Higher efficiency, low temperature. 100% full load burn-in test...

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
