Name: V-TAC VT-24202-S LED transformer Constant voltage 200 W 8.25 A 24 V DC not dimmable 1 pc(s)
Brand: V-TAC
SKU: 3781495
Availability: InStock

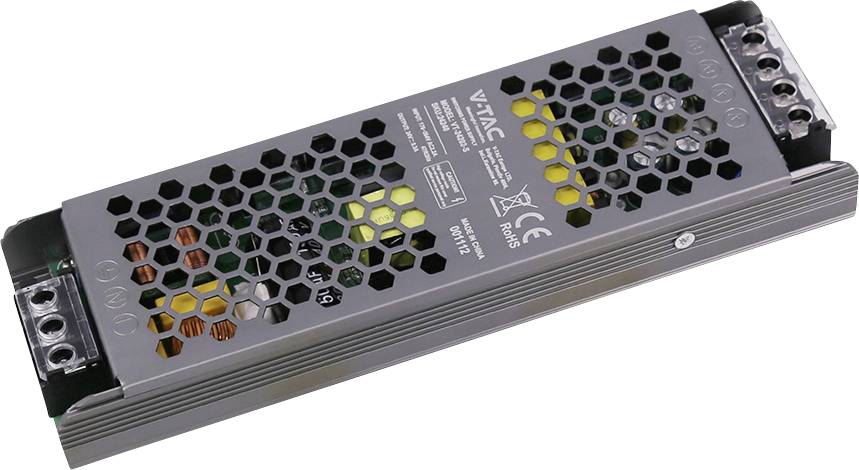

Black metal LED power supply with honeycomb vents and visible wiring terminals on both ends, shown at an angle on a white background.

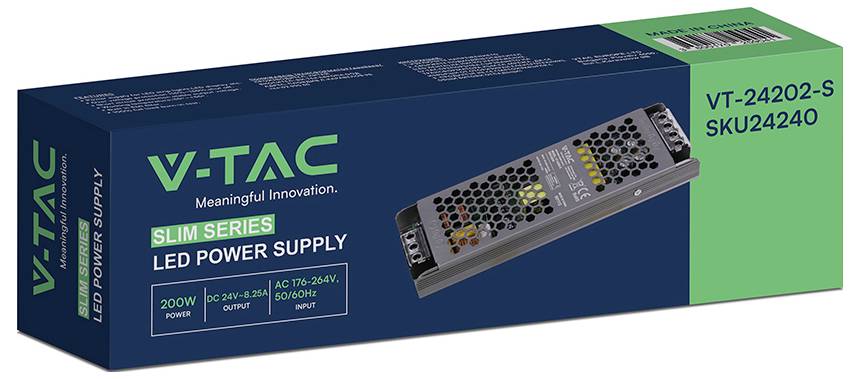

V-TAC Slim Series LED power supply box, model VT-24202-S/SKU24240, showing a 200W power unit for LED lighting.

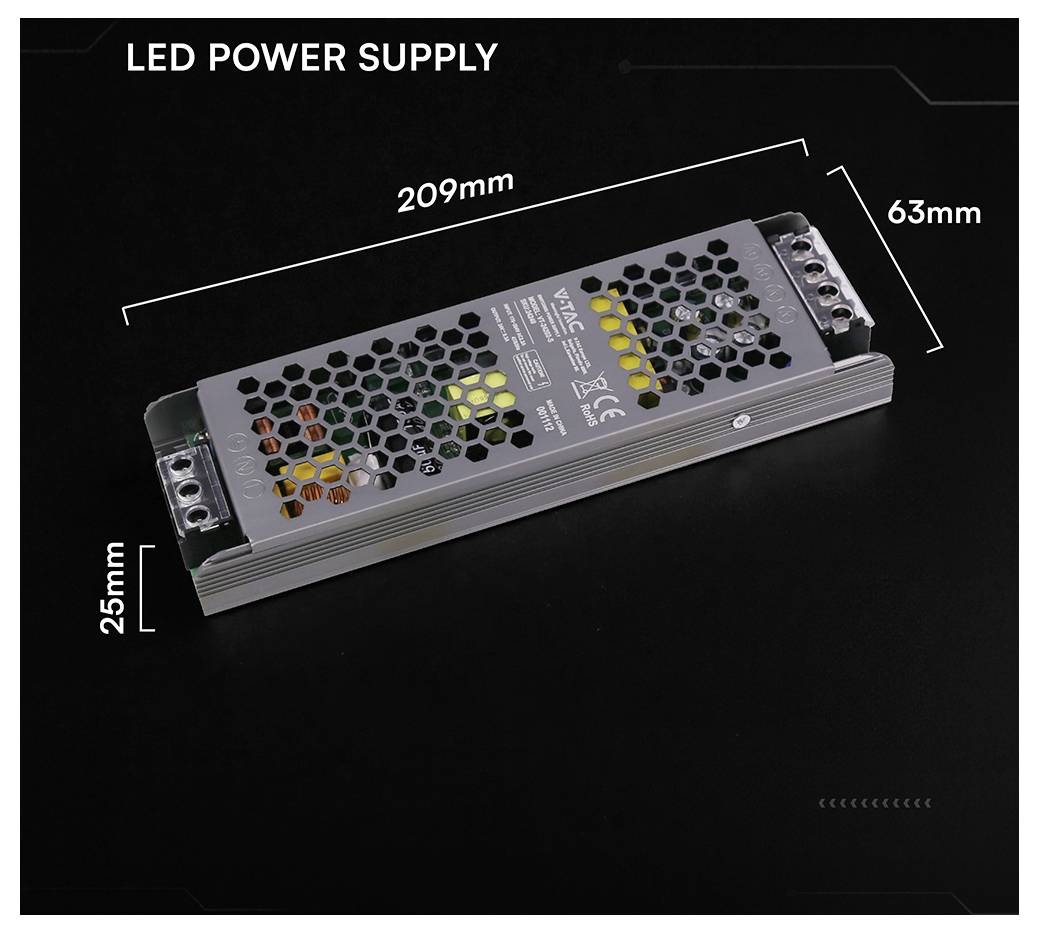

Product image of an LED power supply with a perforated metal case, labeled 209 mm long, 63 mm wide, and 25 mm high.

1/3

Fast track dispatch on Wed 14 Oct

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VT-24202-S

Constant voltage
24 V DC
8.25 A

Technical specifications

Material: Metal
Lifetime 20000 h
On/off switching cycles >15000

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 209 x 63 x 25 mm

Factory colour: Grey

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Max. output current: 8.25 A

Output current (max.) - rounded: 8.25 A

Operating voltage: 240 V

Protection class: IP20

LED driver features: not dimmable

: IP20

Connection: Punchdown block

Max. power: 200 W

No. of outputs: 1 x

Output current (min.): 8.25 A

Input voltage (max.): 264 V AC

Min. input voltage: 176 V AC

Weight: 0.35 kg

Power range: 200 W (max)

Width: 63 mm

Height: 25 mm

Length: 209 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

: No

Material: Metal

Input voltage: 220 V

Output voltage: 24 V

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Max. power

IP rating

Output current (max.) - rounded

Output voltage (max.)

Output voltage (min.)

V-TAC VT-24202-S LED transformer Constant voltage 200 W 8.25 A 24 V DC not dimmable 1 pc(s)

Item no:3781495

Fast track dispatch on Wed 14 Oct

47 Piece(s)Conrad Electronic

This article

Punchdown block

200 W

IP20

8.25 A

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

V-TAC VT-13036 LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Item no:3781507

Fast track dispatch on Wed 14 Oct

44 Piece(s)Conrad Electronic

Punchdown block

36 W

IP67

3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

V-TAC VT-13036-S LED transformer Constant voltage 36 W 3 A 12 V DC not dimmable 1 pc(s)

Item no:3781499

Fast track dispatch on Wed 14 Oct

93 Piece(s)Conrad Electronic

Punchdown block

36 W

IP20

3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

V-TAC VT-13060 LED transformer Constant voltage 60 W 5 A 12 V DC not dimmable 1 pc(s)

Item no:3781508

Fast track dispatch on Wed 14 Oct

37 Piece(s)Conrad Electronic

Open end cable

60 W

IP67

5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

V-TAC VT-13060-S LED transformer Constant voltage 60 W 5 A 12 V DC not dimmable 1 pc(s)

Item no:3781500

Fast track dispatch on Wed 14 Oct

60 Piece(s)Conrad Electronic

Punchdown block

60 W

IP20

5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

V-TAC VT-13075-S LED transformer Constant voltage 75 W 6.25 A 12 V DC not dimmable 1 pc(s)

Item no:3781501

Fast track dispatch on Wed 14 Oct

57 Piece(s)Conrad Electronic

Punchdown block

75 W

IP20

6.25 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

V-TAC VT-13100 LED transformer Constant voltage 100 W 8.3 A 12 V DC not dimmable 1 pc(s)

Item no:3781509

Fast track dispatch on Wed 14 Oct

29 Piece(s)Conrad Electronic

Open end cable

100 W

IP67

8.3 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

V-TAC VT-13120-S LED transformer Constant voltage 120 W 10 A 12 V DC not dimmable 1 pc(s)

Item no:3781502

Fast track dispatch on Wed 14 Oct

48 Piece(s)Conrad Electronic

Punchdown block

120 W

IP20

10 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

V-TAC VT-13150 LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Item no:3781510

Fast track dispatch on Wed 14 Oct

29 Piece(s)Conrad Electronic

Open end cable

150 W

IP67

12.5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

V-TAC VT-13150-S LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Item no:3781503

Fast track dispatch on Wed 14 Oct

44 Piece(s)Conrad Electronic

Punchdown block

150 W

IP20

12.5 A

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781495 V-TAC VT-24202-S LED transformer Constant voltage 200 W 8.25 A 24 V DC not dimmable 1 pc(s)

Description

Power supply for LED strips, LED displays, etc.
IP67 entry protection
Overvoltage protection 115%-135%, switched off
Short-circuit protection, stable output voltage
Built-in EMI filter
Higher efficiency, low temperature. 100% full load burn-in test...

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
