Name: V-TAC VT-8179 24360 Light (+ motion sensor) EEC: E (A - G) 40 W Warm white to cool white White
Brand: V-TAC
SKU: 3781481
Availability: InStock

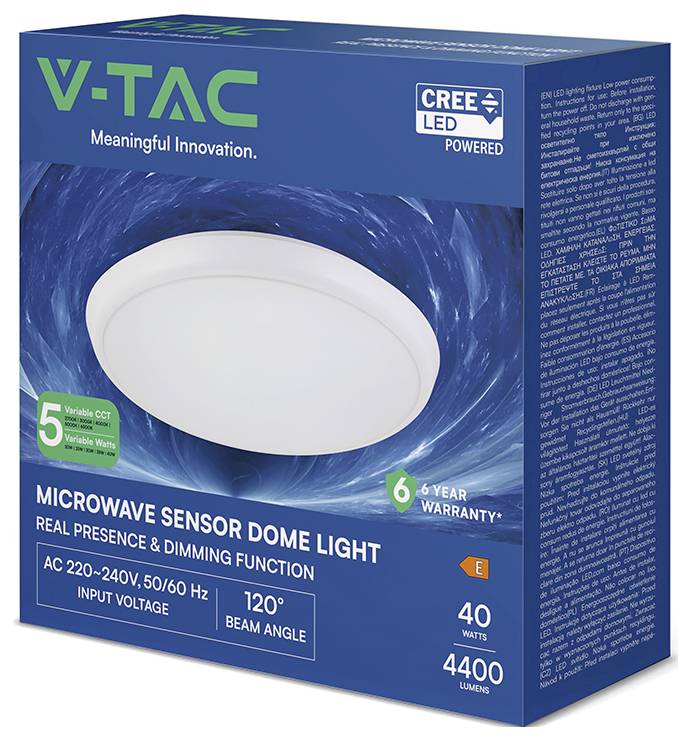

V-TAC microwave sensor dome light packaging, showing a white LED ceiling light with CREE LED powered, 40 watts, 4400 lumens, 120° beam angle, 6-year warranty.<br>

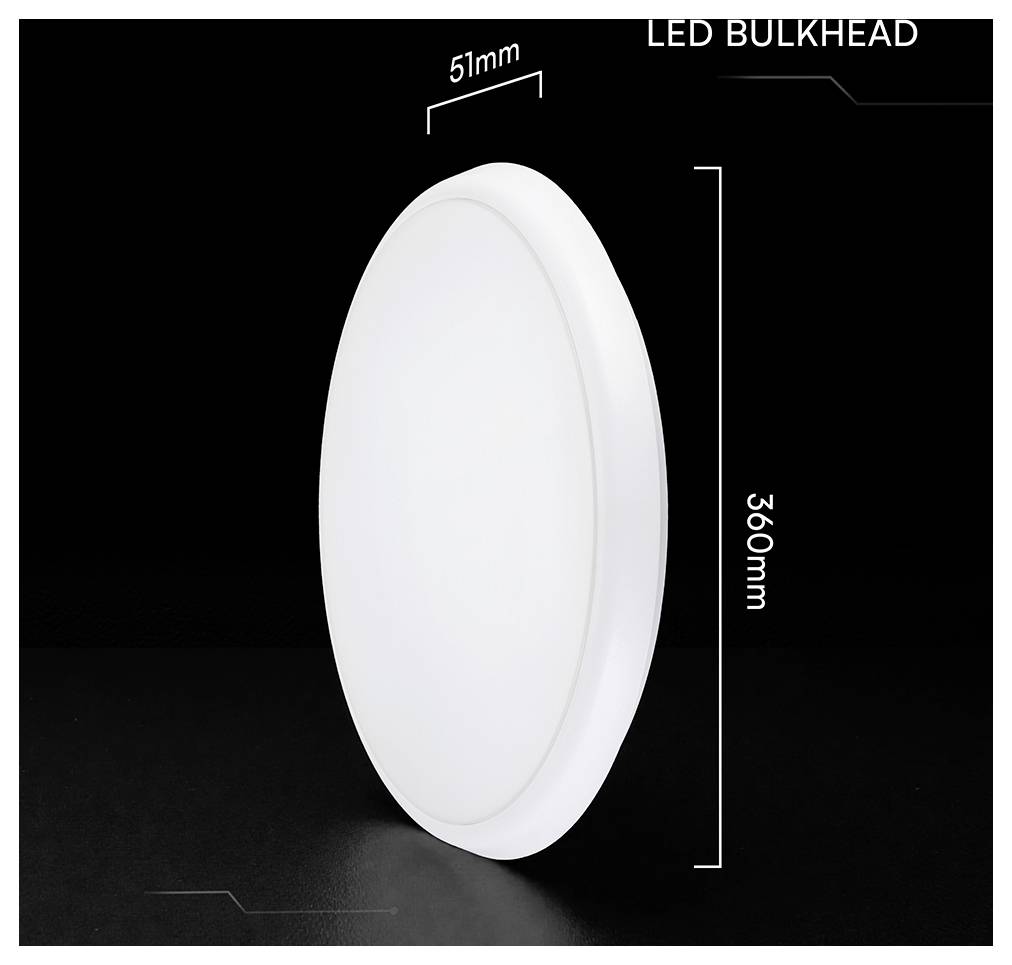

White round LED bulkhead light shown with dimensions: 360mm diameter and 51mm depth.<br>

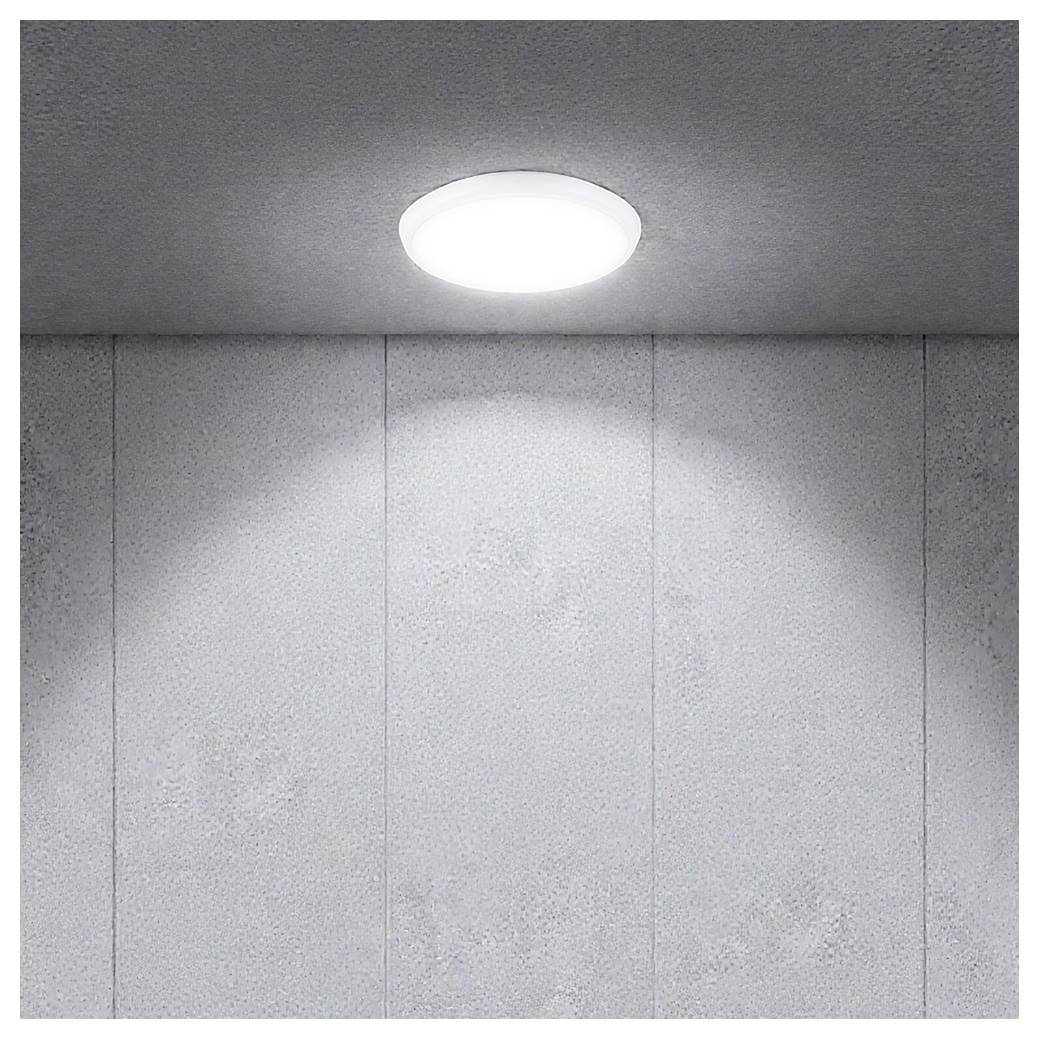

Round ceiling light on a gray paneled wall, casting a soft glow in an otherwise plain interior.

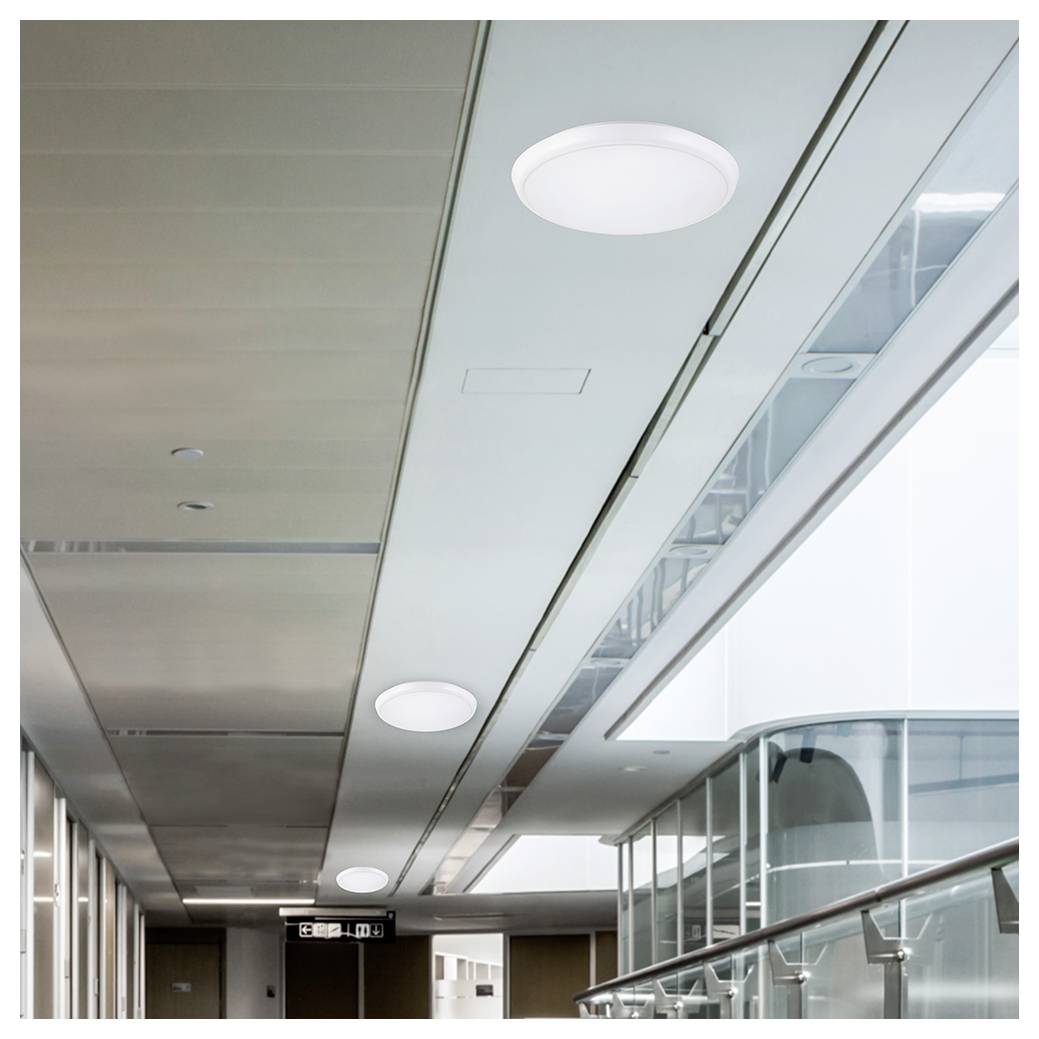

Modern building interior with a long corridor, glass railing, skylight, and recessed ceiling lights<br>

1/5

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VT-8179 LED DOME LIGHT WITH MICROWAVE SENSOR CREE CHIP CCT: 5IN1 Power/CCT IP65 6 YEARS WTY

Power= 40 W
Total luminous flux= 4400 lm
Colour temperature= 2700 K
Warm white to cool white

Technical specifications

Life: 30000 hours
LED chip type SMD-CREE chip
Series CREE
Lumens per watt: 110
Colour temperature 5-IN-1
cri: >80
Delay time: 0s, 90s, 5min, 10min, 30min (adjustable)
Detection distance: Wall 1-5 m, ceiling 2-8 m.
Capturing speed 0.6-1.5 m/s.
Angle of detection 360°
Ambient brightness <3-2000 LUX (adjustable)
Delay time: Min 10 sec ± 3 sec, max 12 min ± 1 min.

Product type: Light (+ motion sensor)

Type: Circular

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

Rating per bulb: 40 W

: 40 W

Energy consumption: 40 kWh/1000h

: 2700 K

Colour: Warm white to cool white

: 4400 lm

Total luminous flux: 4400 lm

Light features: Incl. sensor

Radiation angle: 120°

Protection class: IP65

: IP65
IK10

Factory colour: White

Material: PC

Weight: 1.66 kg

Width: 360 mm

Height: 51 mm

(Ø): 360 mm

: E (A - G)

Type: With microwave sensor

Vertical detection angle: 360°

Colour rendering index: 80

Depth: 360 mm

PIR detection angle (horizontal): 360°

Colour temperature (min.): 2700 K

Coverage max. (width): 5 m

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3781481 V-TAC VT-8179 24360 Light (+ motion sensor) EEC: E (A - G) 40 W Warm white to cool white White

User & Safety Instructions

User & Safety Instructions 3781481 V-TAC VT-8179 24360 Light (+ motion sensor) EEC: E (A - G) 40 W Warm white to cool white White

Description

Microwave sensor dome light with high-quality, built-in power driver and CREE LED chip
Built-in switch for 5-in-1 variable CCT control (2700K¢EUR"6500K) and watt strength (20W¢EUR"40W)
IP65 and IK10 ratings for maximum durability
High-frequency microwave sensor for efficient detection via barriers
Detection range 360'°. Adjustable time delay – ambient light – detection distance for versatile scenarios. Applications – passage, exterior walls, airport, shopping centers, roof, Fence etc.

This text is machine translated.
