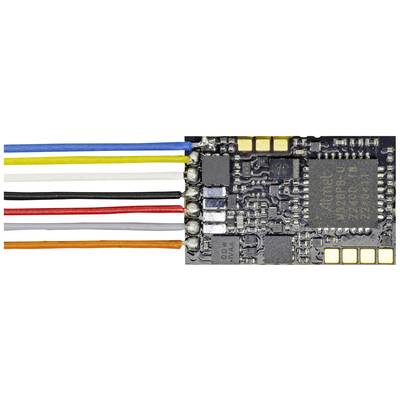

Viessmann Modelltechnik 5296 Locomotive decoder Module, incl. cable
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.18
€ 29.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Technical specifications
- Decoder manufacturer
Viessmann
- Digital format
DCC
- Motor
DC motor
- Decoder type
Module
incl. cable
- Interfaces
Cable included
- Type
Accessories
- Selectable effects
Flashing
- No. of outputs
2 x
- No. of switch modes
2
- Address range
2- und 4-stellige Adressen
- Speed levels
14/28/128
- Current at outputs (max.)
300 mA
- Max. total current
800 mA
- Max. motor current
800 mA
- Suitable for analogue operation
Yes
- System auto-recognition
Yes
- Load control
Yes
- RailCom support
Yes
- SUSI interface
Yes
- Built-in automatic shuttle
Yes
- Length
11.5 mm
- Width
9.5 mm
- Height
2.1 mm
- Age category
15 years and over
- Dim
(L x W x H) 11.5 x 9.5 x 2.1 mm
- Manufacturer part #
5296
- Product type
Locomotive decoder
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204869 Viessmann Modelltechnik 5296 Locomotive decoder Module, incl. cable
Description
Load-regulated and RailCom-enabled miniature multi-protocol locomotive decoder for DC, NMRA-DCC (2- and 4-digit addresses) and Märklin-Motorola (old/new) with automatic format detection. Adjustable minimum, medium and maximum speeds as well as a freely programmable gear table (28 levels, interpolated for 128 speeds), adjustable high-frequency load regulation, also suitable for bell-armature motors, with 14, 28 and 128 speeds. Motor current 0.5 A continuous, 0.8 A max., 2 direction-dependent light outputs with further functionalities: Function mapping (freely programmable function key assignment), dimming, blinking, decoupling. Shunting gear (deactivated acceleration and braking ramp). The total load capacity of the function outputs is 300 mA. All outputs are overload-protected, the decoder is additionally protected against overheating. It has a SUSI interface and a connection for energy storage, each on soldering pads. With color-coded connection wires.
