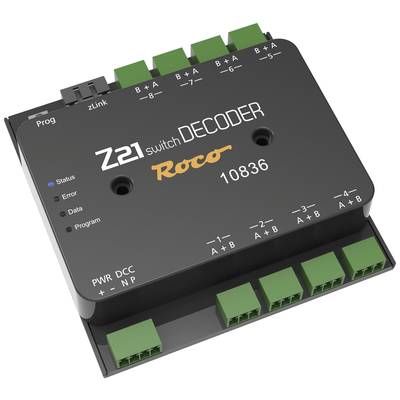

Roco 10836 Z21 switch Decoder Switch decoder Module

The Z21 switch Decoder is a universally usable DCC switch decoder with 2 ampere output power for up to 8 points or up to 16 consumers like LEDs and incandescent lamps.Simple connectionTo avoid unnecessary load on the outputs of the central unit or booster, a separate DC supply can be connected. If wiring is as simple as possible, the track signal can also be used as a supply. For this purpose, the outputs are also protected against overload and short-circuit.Adjustable outputsEach of the 8 output pairs can be set independantly to different modes. These are already pre-configured and can be easily selected. Each output pair can also be dimmed individually, in order to be able to adjust lighting exactly.Ideal for:Adjustable modesDouble coil drivesSimple light signalsLightingControlling relaysStandard operation – with configurable duty cycle for double coil drivesMomentary operation – switch on the manual controller for points and uncouplers depending on the duration of actuation (like 10775)Bistable continuous operation – switch on or switch over for lighting and signalsBistable continuous operation – switch on or switch over with light bulb simulationAlternating flasherAlternating flasher with light bulb simulationPoint numbers 1–2040

This text is machine translated.
