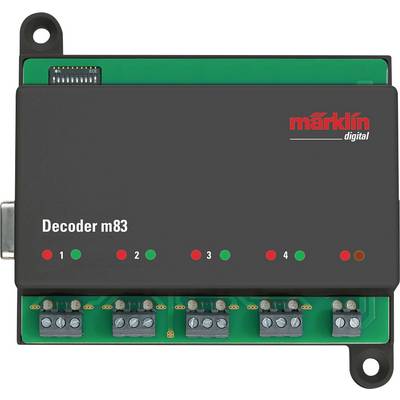

Märklin 60832 m83 Switch decoder Module

Receiver for switching points, signals and decoupling tracks. The m83 supports the digital formats Motorola, DCC and mfx. Setting the digital address via code switch or via the programming track in 4 steps. It is the address range in the Motorola format up to address 320 and in the DCC format up to address 2040. The M83 has 8 outputs, each of which can be controlled separately or in pairs. Default is in the switching of up to 4 points. Other functions are, for example, the switching of up to 8 lighting (dimmable) with a defined switching (e.g. street lighting, houses lighting). It is possible to realize a foreign feed, e.g. via 66360, only in connection with 60822. The decoder m83 and M84 are can be placed next to each other. For motor drives is a Zurustset 60821 per output pair is required. The connection is made by means of lift terminals. Maximum current capacity is 3A.
