LGB L55029 Sounddecoder Locomotive decoder incl. cable, incl. connector
EAN:
Part number:
Item no:
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Features
+ loudspeaker
- Decoder manufacturer
Märklin
- Digital format
DCC
mfx
- Motor
DC motor
- Decoder type
incl. cable
incl. connector
- Interfaces
28-pin
- Type
Accessories
- Selectable effects
Driving noises
- Address range
1 - 10239
- Speed levels
14/28 (128)
- Max. total current
10000 mA
- Max. motor current
4000 mA
- Load control
Yes
- Length
65 mm
- Width
40 mm
- Dim
(L x W) 65 mm x 40 mm
- Manufacturer part #
L55029
- Product type
Locomotive decoder
Description

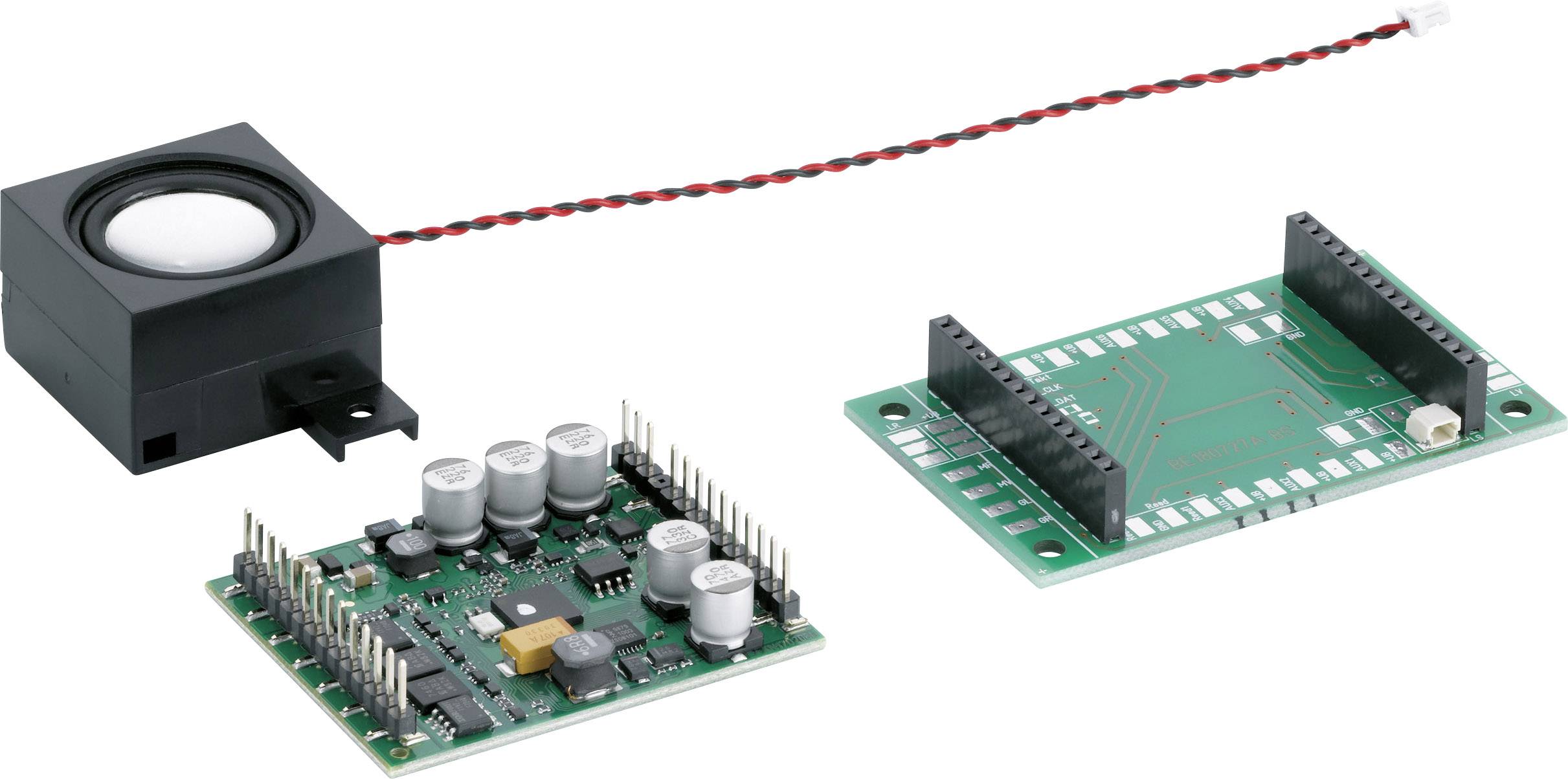

This decoder is suitable for use in digital mode (DCC, mfx) as well as in analogueue mode (DC). All LGB power units from 2014 onwards can be converted with the 28-pin interface. Many vehicles with the old 10-pin interface can be converted using the 55529 interface adapter. Vehicles without an interface can be converted using the enclosed interface board, the size of the interface board approx. 65 mm x 40 mm. In addition, a loudspeaker box is included, but other loudspeakers suitable for the electrical values can also be connected. Compared to the previous decoder, the performance data has been significantly increased, and it also offers considerably more functions and programming options. With the Märklin decoder tool, the decoder can be comfortably programd and adapted to individual needs. Via the Internet there is the possibility to access the extensive sound library, which has been extended especially for this by a number of the well-known LGB models and is constantly supplemented.
