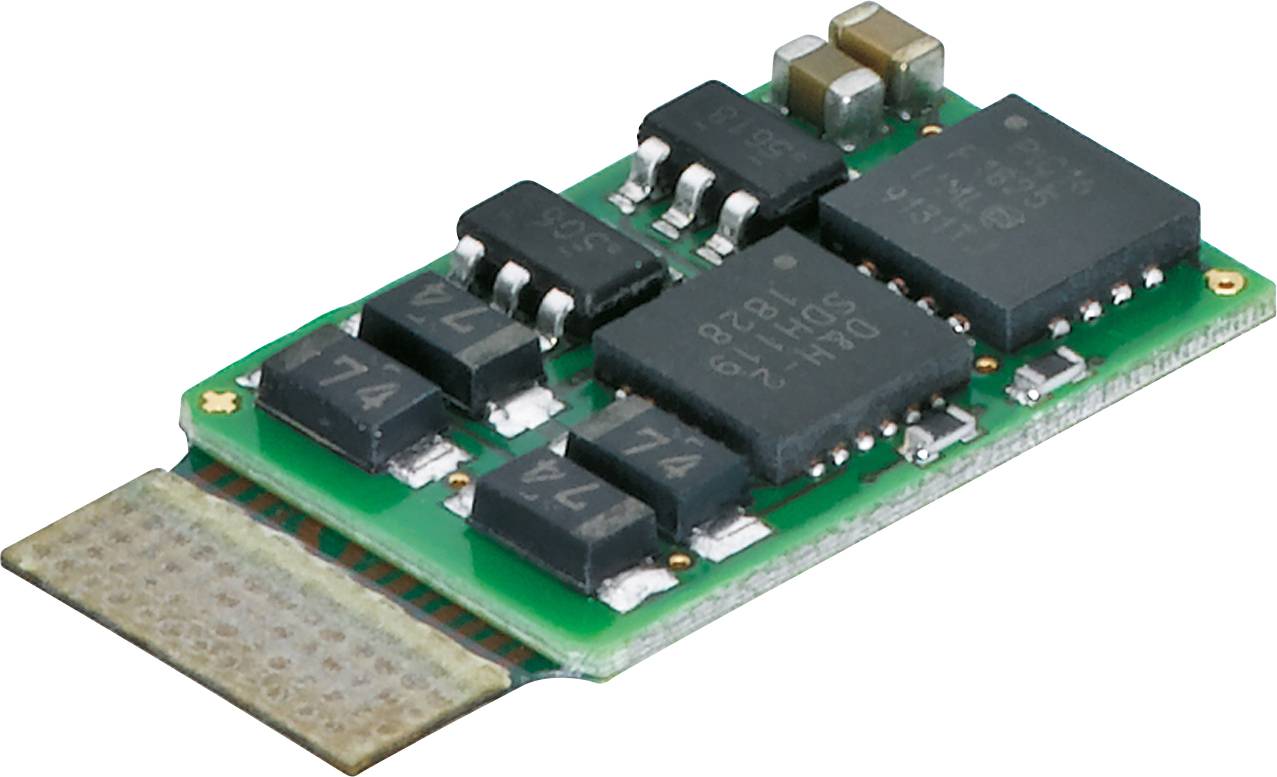

MiniTrix 66857 Locomotive decoder w/o cable, w/o connector
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Technical specifications
- Decoder manufacturer
Trix
- Digital format
DCC
SX
SX2
- Motor
DC motor
- Decoder type
w/o cable
w/o connector
- Interfaces
mTc14
- Selectable effects
Lighting
- No. of outputs
3 x
- No. of switch modes
3
- Address range
1 - 10239
- Acceleration & braking characteristics
In short: 127 | Long: 10239
- Speed levels
14/28/126
- Current at outputs (max.)
200 mA
- Max. total current
1000 mA
- Max. motor current
1000 mA
- Suitable for analogue operation
Automatic analog detection
- System auto-recognition
Yes
- Load control
Yes
- SUSI interface
No
- Length
14 mm
- Width
9 mm
- Height
2 mm
- Age category
15 years and over
- Dim
(L x W x H) 14 x 9 x 2 mm
- Manufacturer part #
66857
- Product type
Locomotive decoder
Description
Receiver for all DC locomotives with a total power consumption up to 1000 mA (motor 1000 mA, each light 200mA). Suitable for digital locomotives with an mtc 14 - digital interface. Universally in Selectrix 1, Selectrix 2 and DCC-format can be used. Automatic detection of analogue. Automatic load control. Connection for the light function. Connection for additional functions (AUX1 and AUX2). Short-circuit protection of the motor output. Advanced Selectrix 1-programming of additional settings by selecting the address "00", for example, a fine grading of the pulse width (control variant), the direction reversal. In Selectrix Operation: 31 speed levels. 111 addresses. DCC operation: Gear 14/28/126 drive settings. Addresses Optionally brief up to 127 and long-up to 10239. Brake operation in the DCC and SX-Format: DC DC / against pin, brake diodes, asymmetric track signal, brake generators. Dimensions approx. 14 x 9 x 2 mm.
Robust multi-protocol retrofit decoder, short-circuit proof between the motor and the track; safety shutdown in the event of excess current, overheating and short-circuit; newly developed motor control for extremely smooth operation of all the common DC-motors to drive further at the same speed after power interruption until 1 s; SUSI-controlled start-up delay (SUSI-WAIT); one- or two-piece brake lines; special properties in analogue mode: very low adjustable starting voltage, Vmax limitation, dynamic driving voltage-dependent dimming of light and AUX, programmable functions, typical analogue driving behavior.
