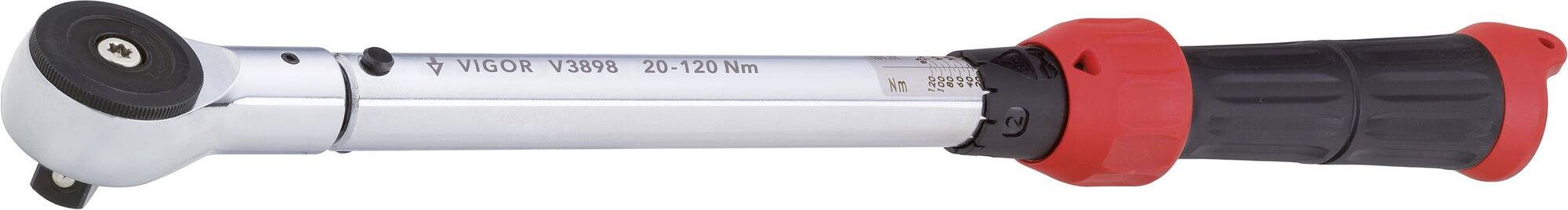

Vigor V3898 V3898 Torque wrench Forward/reverse ratchet 1/2" (12.5 mm) 20 - 120 Nm
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Technical specifications
- Product type
Torque wrench
- Features
Forward/reverse ratchet
- Downforce
1/2" (12.5 mm)
- Torque (min.)
20 Nm
- Torque (max.)
120 Nm
- Trigger accuracy
4 %
- Length
445 mm
- DIN standard
DIN EN ISO 6789
- Weight
1.1 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1289315 Vigor V3898 V3898 Torque wrench Forward/reverse ratchet 1/2" (12.5 mm) 20 - 120 Nm
Description
· ±4% accuracy of scale value (in operating direction). · Double scale: Nm and Ibf. ft. · Scale division: 1 Nm. · Torque triggered: haptic and acoustic. · Fine-toothed ratchet handle. · 72 teeth, Rotation angle 5°. · Handle with hook. · With serial number and certificate. · DIN EN ISO 6789:2003 (D), square according to DIN 3120 A, ISO 1174-1 A. · Torque technology: "Made in Germany". · Torque range: 20 - 120 Nm. · Length: 445 mm · Weighs 1.10 kg. .
