Visaton DL 10 - 100 V In-ceiling speaker 6 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14 days return policy included
Visaton DL 10, 100 V LOUDSPEAKER
Highlights & Details
- Suitable for mounting in ceiling materials of all kinds.
- Functional at low temperatures in accordance with EN 60068-2-1
Technical specifications
- Product type
In-ceiling speaker
- Type
Round
- RMS capacity
6 W
- Max. load
6 W
- Power levels
6 W
3 W
- Max. sound pressure
94 dB
- Features
sprayproof
IP54
- Frequency range
78 - 20 000 Hz Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Metal
- Weight
545 g

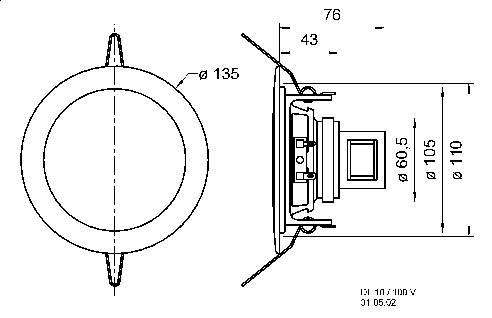

- (Ø)
13.5 cm
- Length
10 cm
- Dim
(Ø x L) 13.5 cm x 10 cm
- Depth
76 mm
- Recess diameter
11 cm
- Mounting depth
76 mm
- Impedance
100 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 311691 Visaton DL 10 - 100 V In-ceiling speaker 6 W 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 311691 Visaton DL 10 - 100 V In-ceiling speaker 6 W 100 V White 1 pc(s)
Description

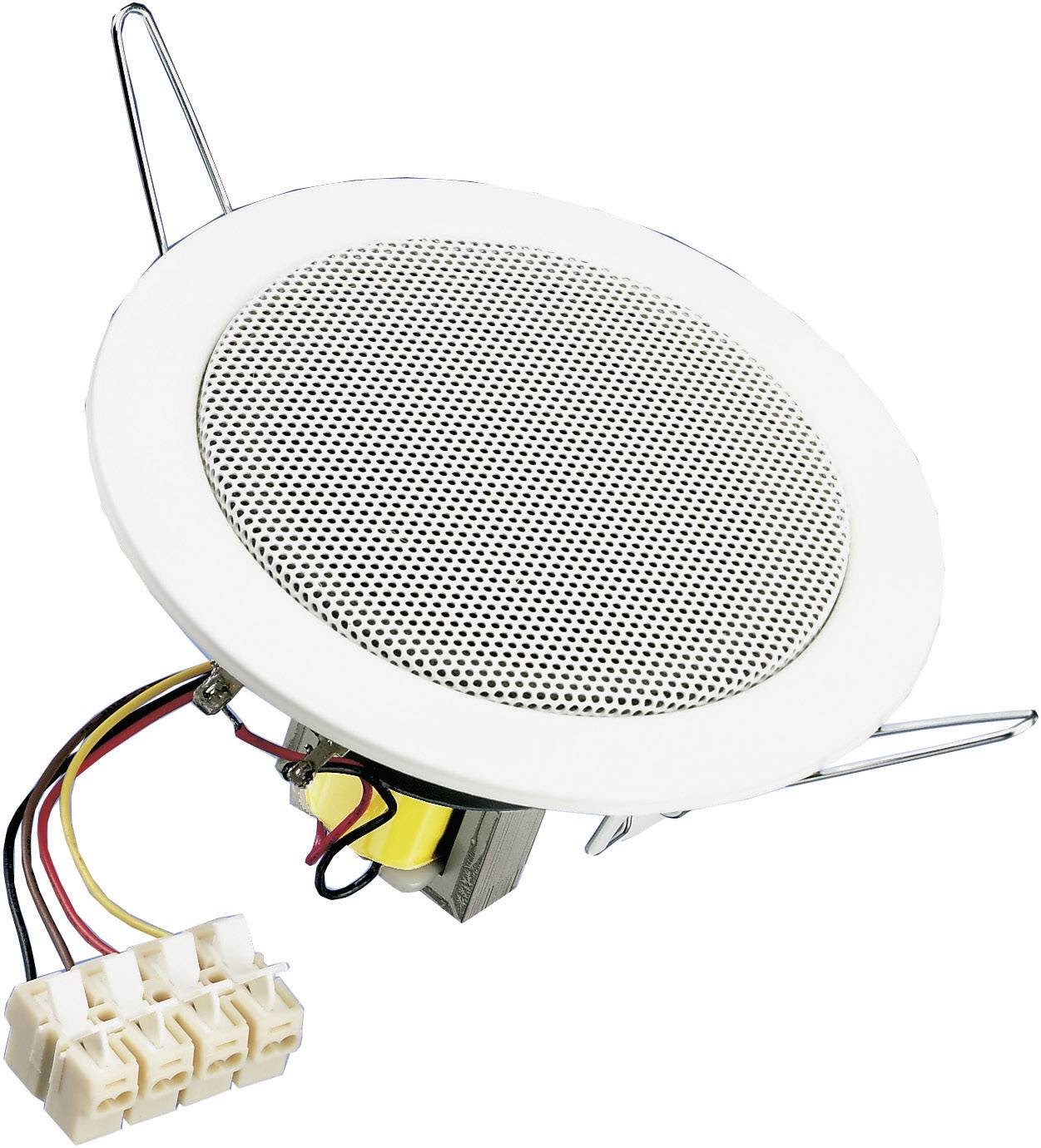

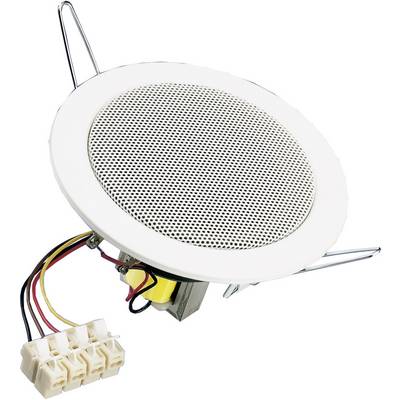

10 cm (4")-ceiling speaker. White painted metal cover.
