Visaton DL 18/1 - 100 V (RAL 9010) In-ceiling speaker 6 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included

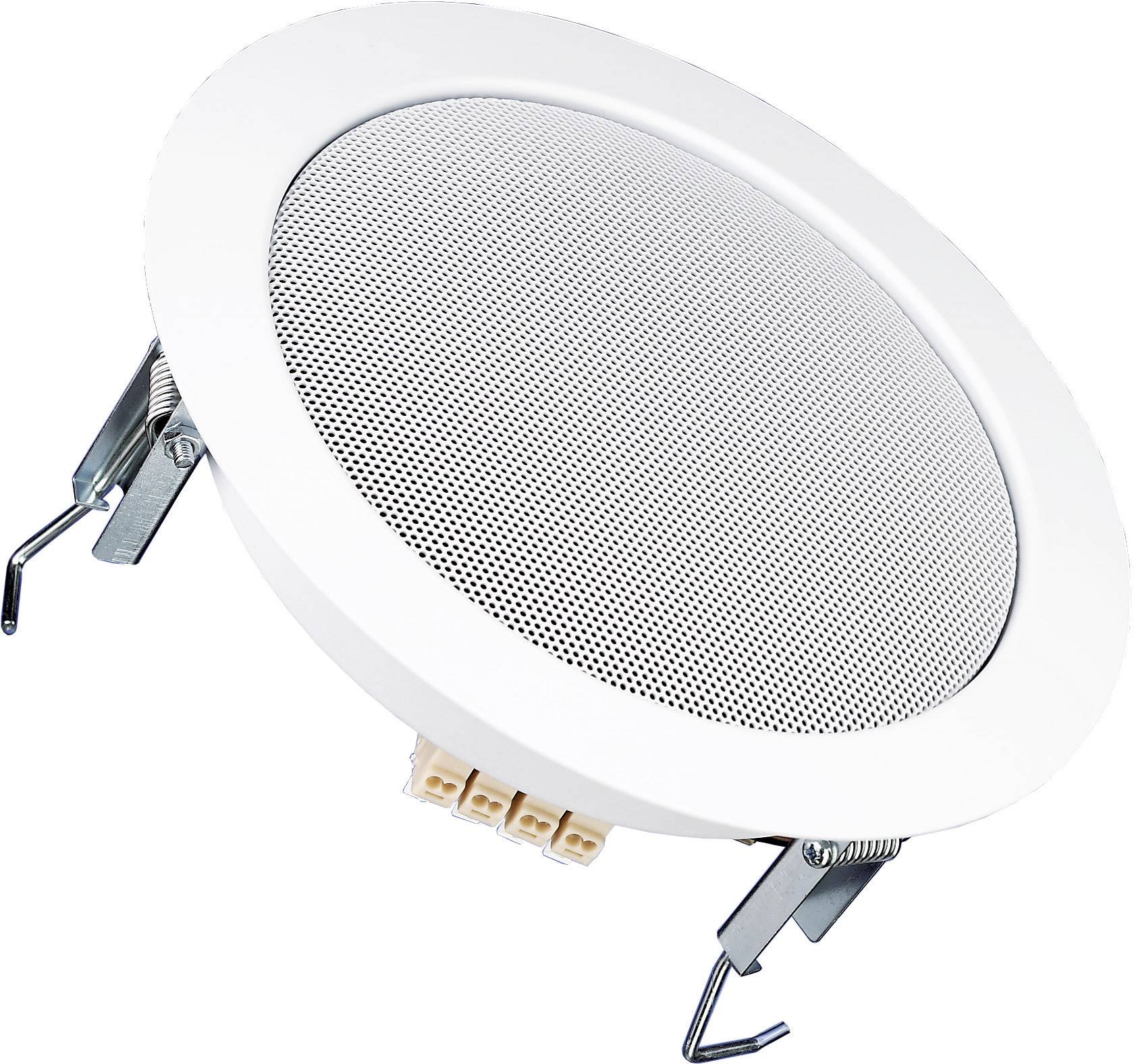

Visaton DL 18/1, RAL 9010 speaker
Highlights & Details
- Suitable for mounting in ceiling materials of all kinds.
- Functional at low temperatures in accordance with EN 60068-2-1
Technical specifications
- Product type
In-ceiling speaker
- Type
Round
- RMS capacity
3 W
- Max. load
6 W
- Power levels
6 W
3 W
- Max. sound pressure
101 dB
- Features
UV-resistant
sprayproof
IPX3
- Frequency range
70 - 20 000 Hz Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Metal
- Weight
1.15 kg

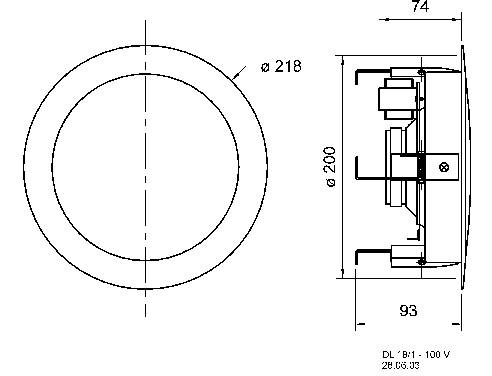

- (Ø)
21.8 cm
- Dim
(Ø x D) 21.8 cm x 74 mm
- Depth
74 mm
- Recess diameter
20 cm
- Mounting depth
93 mm
- Impedance
100 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 311688 Visaton DL 18/1 - 100 V (RAL 9010) In-ceiling speaker 6 W 100 V White 1 pc(s)
Description
17 cm (6.5") Ceiling Speaker. Corrosion-resistant grating.
