Visaton DL 18/2 - 100 V In-ceiling speaker 70 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Only 2 Piece(s) available

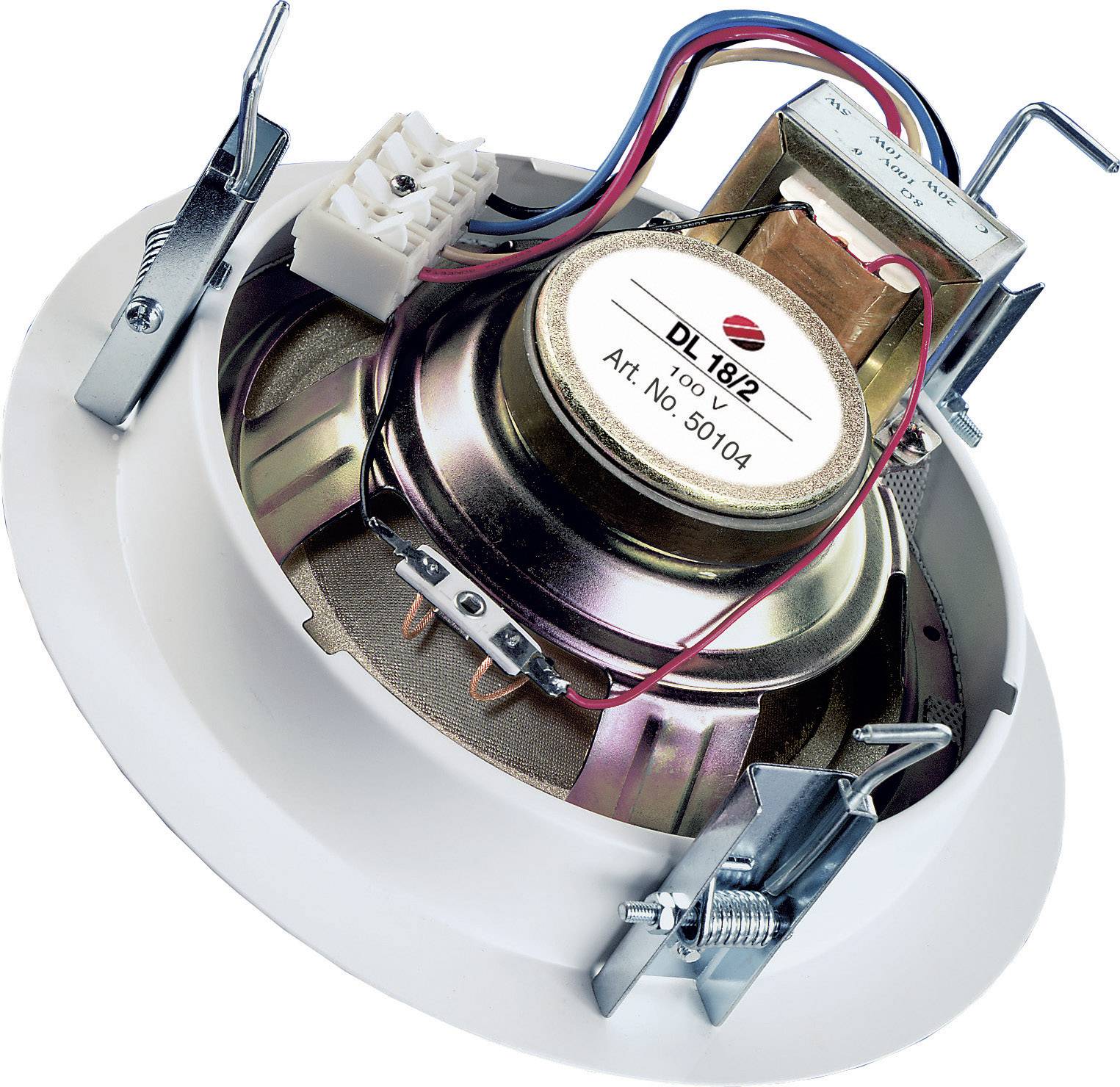

Visaton DL 18/2 100 V Ceiling Loudspeaker
Highlights & Details
- 100 V
- Moisture-impregnated diaphragm
- UV-constant
Technical specifications
- Product type
In-ceiling speaker
- Max. load
70 W
- Impedance
8 Ω
- Max. sound pressure
103 dB
- Features
UV-resistant
IP6K9K
- Frequency range
50 - 20 000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Metal
- Weight
1.5
- (Ø)
21.8 mm
- Dim
(Ø x D) 21.8 mm x 93 mm
- Depth
93 mm
- Recess diameter
20 mm
- Outside Ø
218 mm
- Max. RMS power
70 W
- Mounting depth
93 mm
- SPL
94 dB
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 303411 Visaton DL 18/2 - 100 V In-ceiling speaker 70 W 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 303411 Visaton DL 18/2 - 100 V In-ceiling speaker 70 W 100 V White 1 pc(s)
Description
Features
- Grating
- Metallic design
- Covered installation possible
- Pressure spring clamp
- Bayonet connection.
