Visaton DL 8 - 100 V In-ceiling speaker 3 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14 days return policy included
Visaton DL 8, 100 V LOUDSPEAKER
Highlights & Details
- Functional at low temperatures in accordance with EN 60068-2-1< br> Ball throwing-proof< br >
Technical specifications
- Product type
In-ceiling speaker
- RMS capacity
3 W
- Max. load
3 W
- Power levels
3 W
1.5 W
0.75 W
- Max. sound pressure
91 dB
- Features
Ceiling speaker
IP54
- Frequency range
90 - 18 000 Hz Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Metal
- Weight
515 g

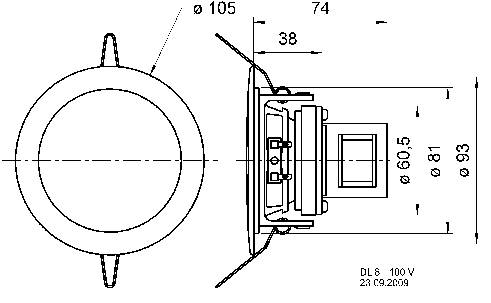

- (Ø)
10.5 mm
- Dim
(Ø) 10.5 mm
- Recess diameter
93 mm
- Mounting depth
74 mm
- Impedance
100 V
Documents & Downloads
Datasheet
Datasheet 311694 Visaton DL 8 - 100 V In-ceiling speaker 3 W 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 311694 Visaton DL 8 - 100 V In-ceiling speaker 3 W 100 V White 1 pc(s)
Description
8 cm (3.3") Ceiling Speaker. White painted metal cover.
