Visaton DL 25 - 100 V/8 Ohm In-ceiling speaker 30 W 100 V Pure white (RAL 9010) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Highlights & Details
Visaton DL 25 Ceiling Loudspeaker
- Installation in suspended ceilings for voice and music sound in shops, living rooms, hotels, etc.
Technical specifications
- Product type
In-ceiling speaker
- Type
Round
- RMS capacity
20 W
- Max. load
30 W
- Power levels
20 W
10 W
5 W
2.5 W
- Impedance
8 Ω
- Max. sound pressure
104.7 dB
- Frequency range
90 - 20000 Hz
- Operating voltage
100 V
- Factory colour
Pure white (RAL 9010)
- Weight
2 kg
- (Ø)
24.5 cm
- Length
13.7 cm
- Dim
(Ø x L) 24.5 cm x 13.7 cm
Documents & Downloads
Datasheet
Datasheet 2344799 Visaton DL 25 - 100 V/8 Ohm In-ceiling speaker 30 W 100 V Pure white (RAL 9010) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344799 Visaton DL 25 - 100 V/8 Ohm In-ceiling speaker 30 W 100 V Pure white (RAL 9010) 1 pc(s)
Warranty Terms
Warranty Terms 2344799 Visaton DL 25 - 100 V/8 Ohm In-ceiling speaker 30 W 100 V Pure white (RAL 9010) 1 pc(s)
Description

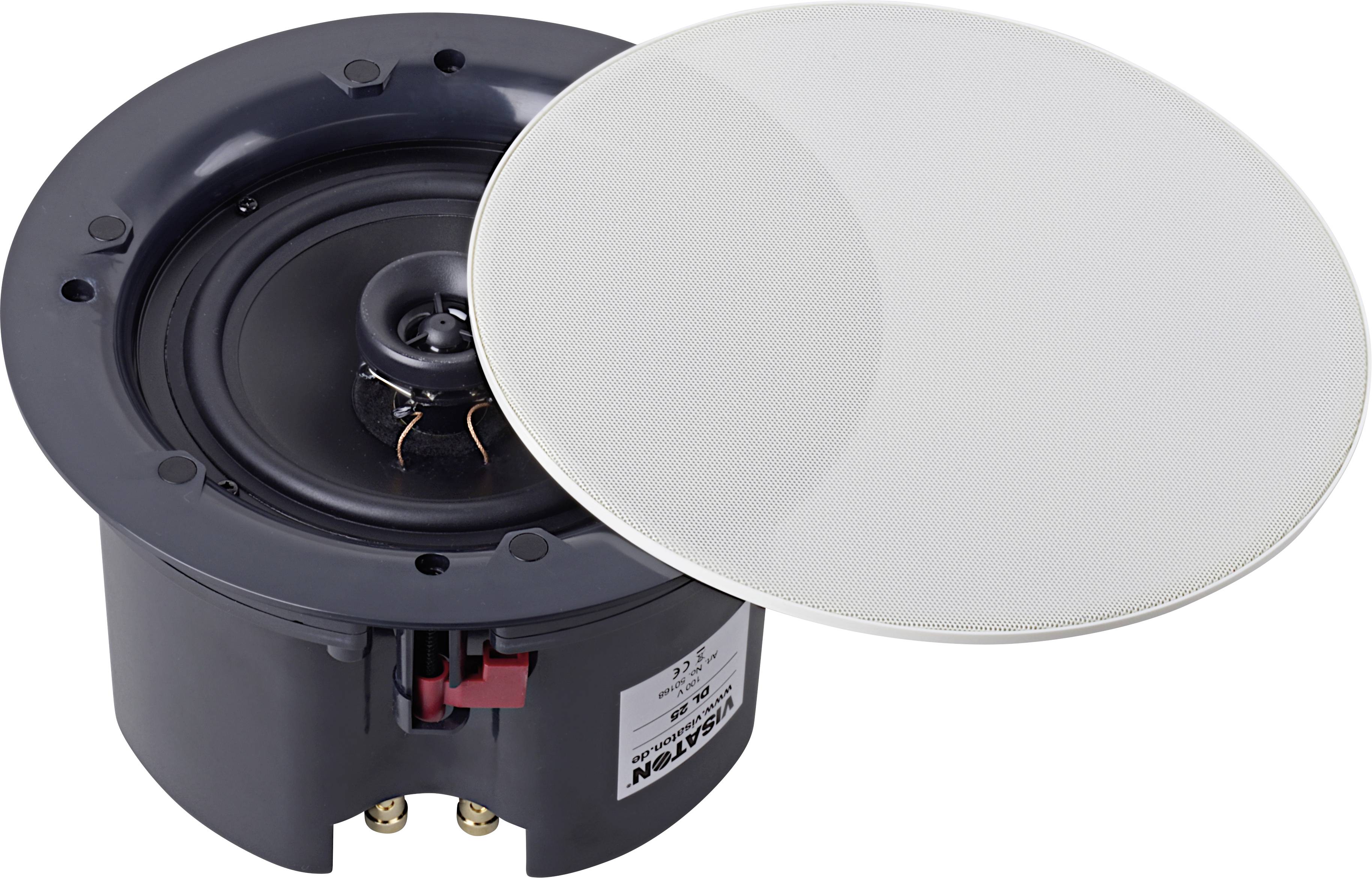

25 cm (10") ceiling loudspeaker equipped with a 13 cm coaxial loudspeaker. Through the four mounting clamps the loudspeaker can be installed quickly and easily. The magnetic grid completely encloses the loudspeaker and can be removed with a few simple steps. This ceiling loudspeaker can be used in a variety of ways thanks to the connection via 8 Ohm and 100 V taps.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Visaton DL 25 Ceiling Loudspeaker
