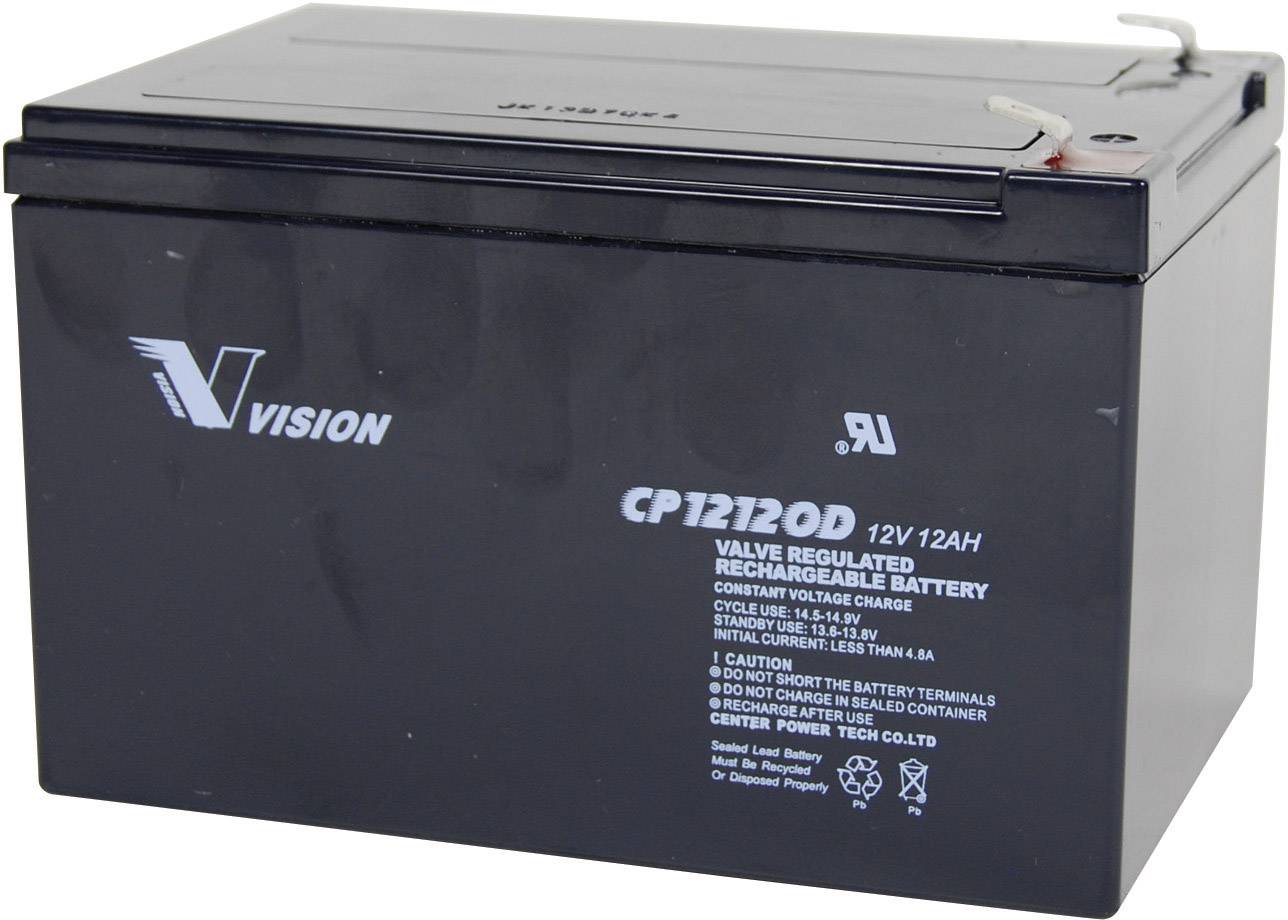

Vision Akkus CP12120D CP12120D VRLA 12 V 12 Ah AGM (W x H x D) 151 x 101 x 98 mm 6.35 mm blade terminal Maintenance-free
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Fixed cycles lead battery
Highlights & Details
- Maintenance-free and leak-proof
- Low self-discharge
- 5 years autonomy
Technical specifications
- Temperature range -20 to +60 ºC
- Dim
(W x H x D) 151 x 101 x 98 mm
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
12 Ah
- Height
101 mm
- Weight
4.4 kg
- Content
1 pc(s)
- Type
CP12120D
- Rechargeable
Yes
- Connector
6.35 mm blade terminal
- Depth
98 mm
- Width
151 mm
- Features
Maintenance-free
High number of charge cycles
- VDS certification
No
Documents & Downloads
Datasheet
Datasheet 377145 Vision Akkus CP12120D CP12120D VRLA 12 V 12 Ah AGM (W x H x D) 151 x 101 x 98 mm 6.35 mm blade terminal Maintenance-free
Security datasheet
Security datasheet 377145 Vision Akkus CP12120D CP12120D VRLA 12 V 12 Ah AGM (W x H x D) 151 x 101 x 98 mm 6.35 mm blade terminal Maintenance-free
Description
Vision CP series in AGM technology (Absorbent Glass Mat). With excessive pressure build-up the special valve controls the pressure. The battery is still completely sealed, and therefore maintenance-free, leak-proof and can be used in any position. Typical applications include alarm systems, communications equipment, instrumentation, wheelchairs, lawnmowers, emergency lighting, geophysical equipment, vending machines, etc. The Deep-cycle battery is designed for a service life of 5 years. The housing is made of flame retardant ABS plastic.
Features
- Maintenance free
- Leakproof
- Low self-discharge
- Can be used in any position
- For buffer and cyclical operation suitable
- Flame retardant ABS plastic
- Complies with JIS, DIN, IEC60896-21 / 22 & BS6290-4
- UL approval (MH25860)
Hints
