Vogt Verbindungstechnik 3773a05.68 Blade connector 2.8 x 0.5 mm Not insulated 100 pc(s)

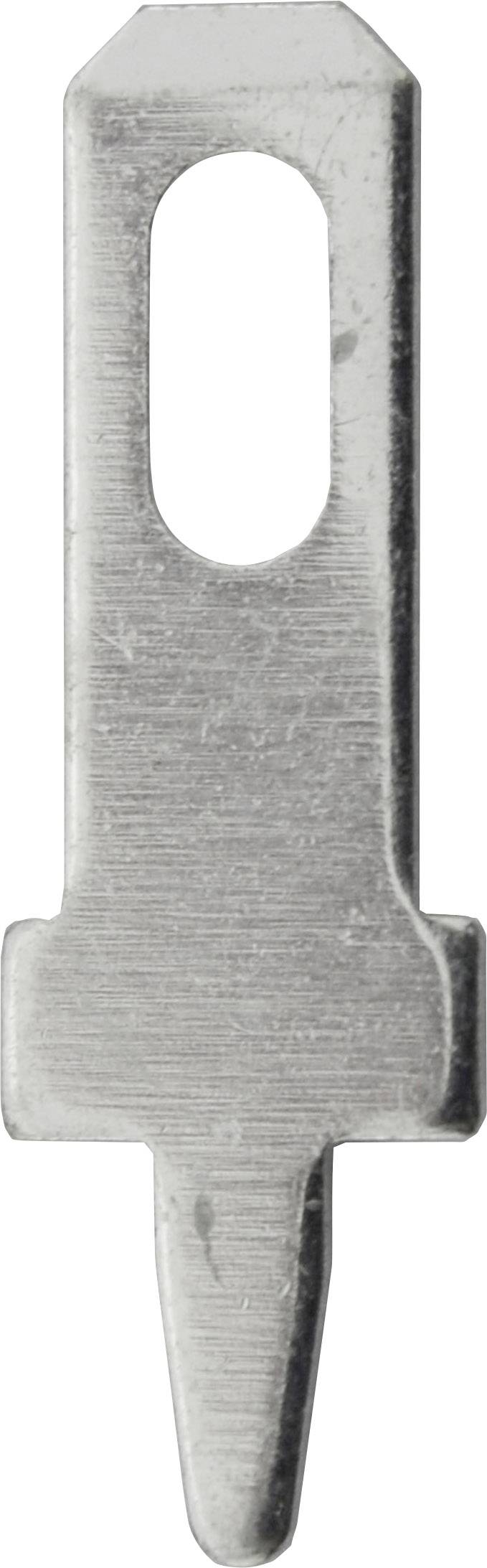

A silver, metallic object in the shape of a slender, flat key with an oval hole in its upper half.

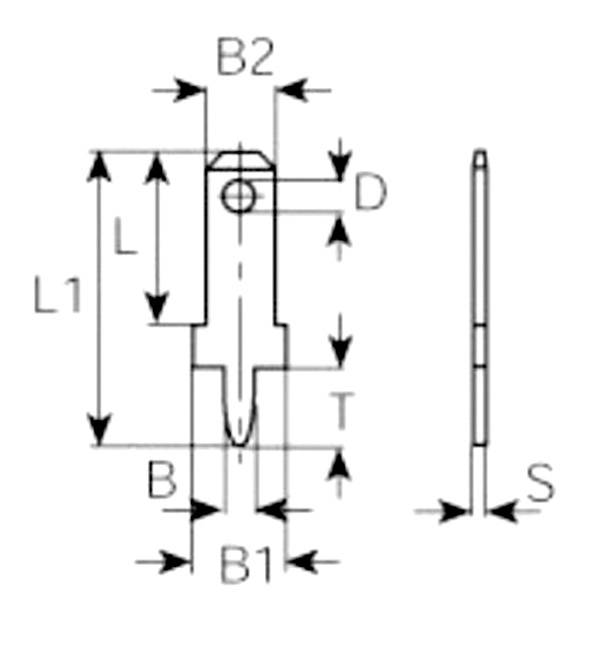

Technical drawing of a bolt with dimensions and markings showing diameters 'D', widths 'B1', 'B2', lengths 'L', 'L1', depth 'T' and side 'S'.
1/2
Image similar
Product type
Blade connector
Connector width
2.8 mm
Connector thickness
0.5 mm
Insulation type
Not insulated
Connection angle
180 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
19 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 100 pc(s))
Total (€ 0.06 / piece)
€ 5.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Blade Terminals

  • Brass tin-plated
  • Not insulated
  • 2.8 mm x 0.5 mm

Our service for you

Technical specifications

Product type

Blade connector

Factory colour

Metal

Connector width

2.8 mm

Connector thickness

0.5 mm

Insulation type

Not insulated

Hole Ø

1.2 x 3 mm

Connection angle

180°

Contact material

Brass tin plated

Content

100 pc(s)

Manufacturer part #

3773a05.68

Type

3773a05.68

Pins

1

RoHS-compliant

Yes

Size

2.8 x 0.5 mm

Connection length

7.1 mm

Documents & Downloads

Datasheet

Datasheet 1226238 Vogt Verbindungstechnik 3773a05.68 Blade connector 2.8 x 0.5 mm Not insulated 100 pc(s)

User & Safety Instructions

User & Safety Instructions 1226238 Vogt Verbindungstechnik 3773a05.68 Blade connector 2.8 x 0.5 mm Not insulated 100 pc(s)

Description

Scope of delivery

  • 100 pieces
