Name: VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, progr
Brand: VOLTCRAFT
SKU: 3734642
Availability: InStock

Front view of a VOLTCRAFT VSPP-2030 DC power supply showing set output of 80.000 V and 15.000 A, with 1200.00 W displayed.

Front view of a Triplett VSP-2030 DC power supply with digital display, output controls, and red/black terminals in a rack-style metal case.

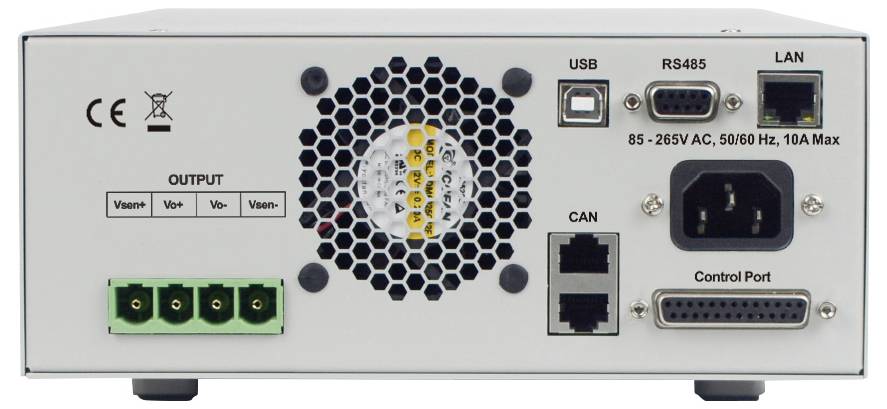

Rear panel of an electronic power unit showing output terminals, cooling fan, USB, RS485, LAN, CAN, control port, and AC input connector.

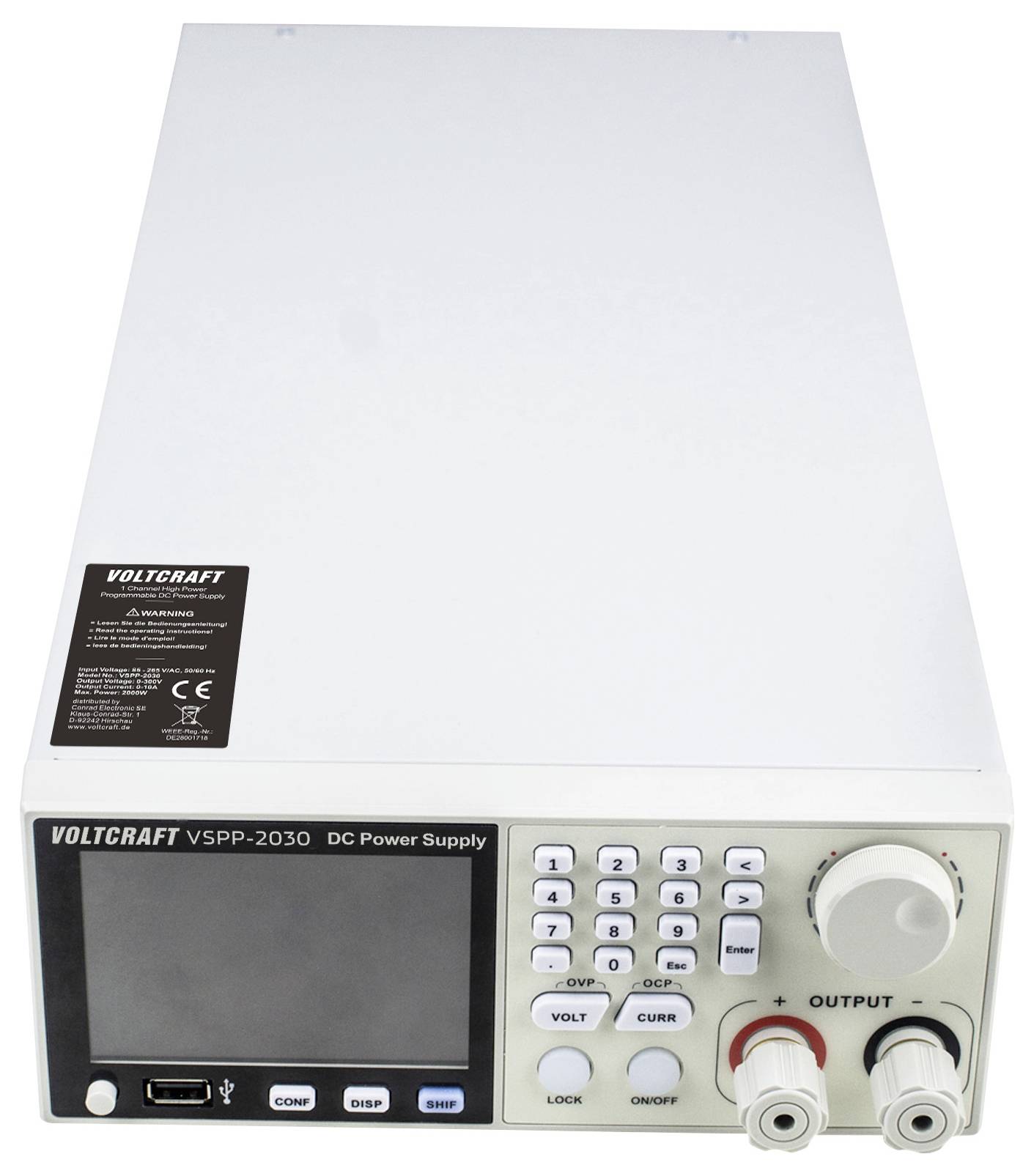

Front view of a VOLTCRAFT VSPP-2030 DC power supply with blank display, keypad, control knob, and output terminals.

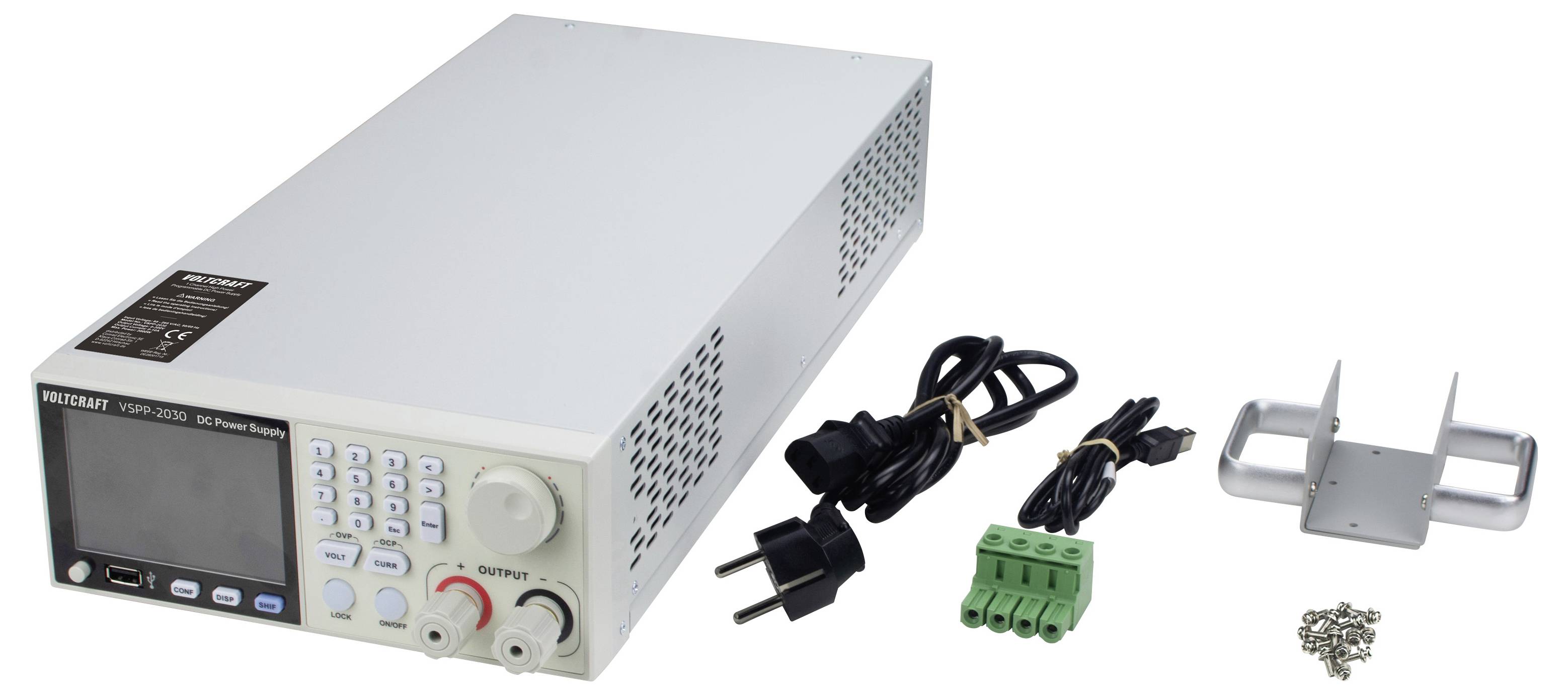

Bench power supply with display, keypad, knobs, power cords, terminal connector, mounting bracket, and screws.

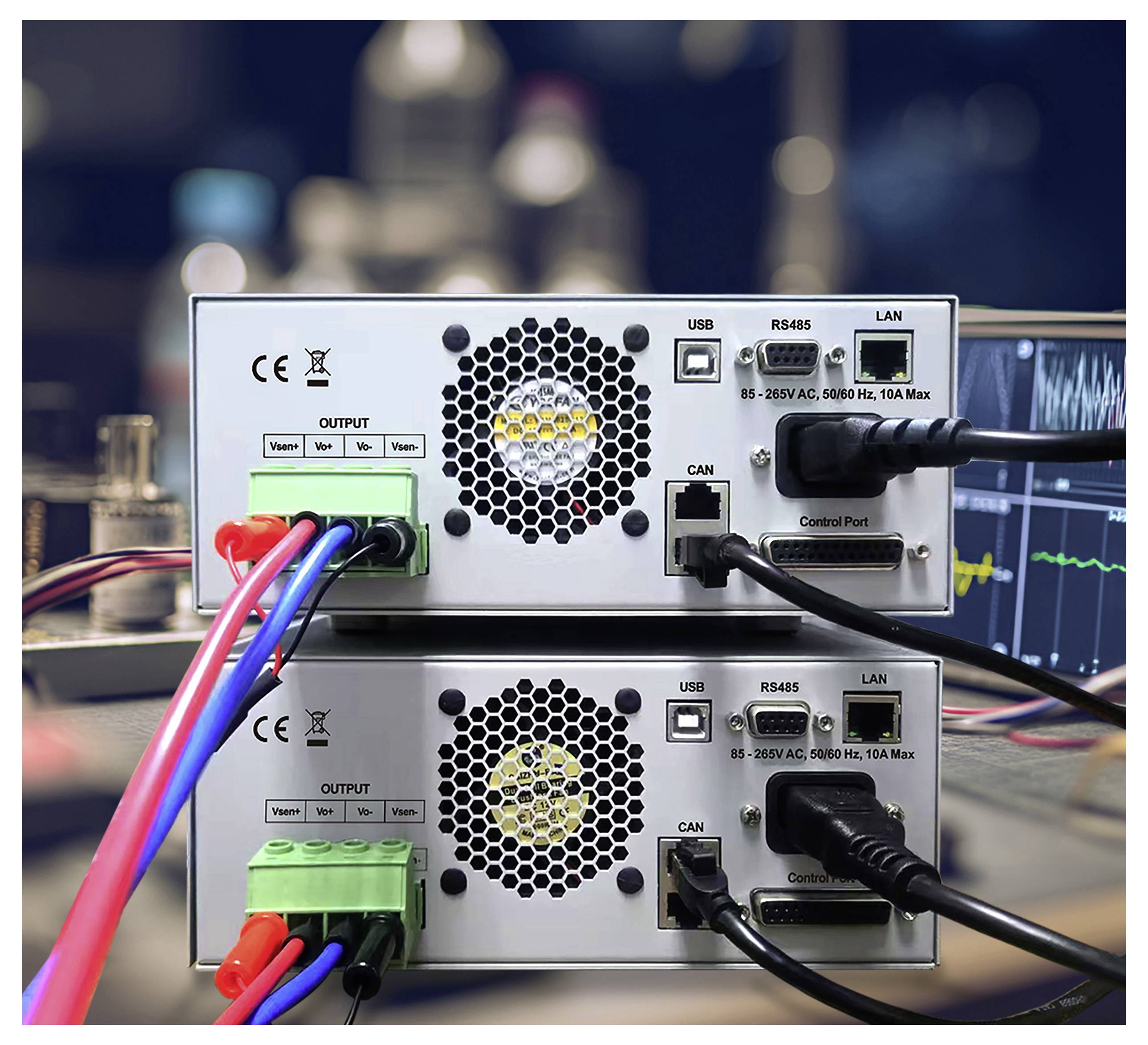

Two stacked silver electronic control units with cooling fans, output terminals, and USB, RS485, LAN, CAN, and control ports connected by cables.

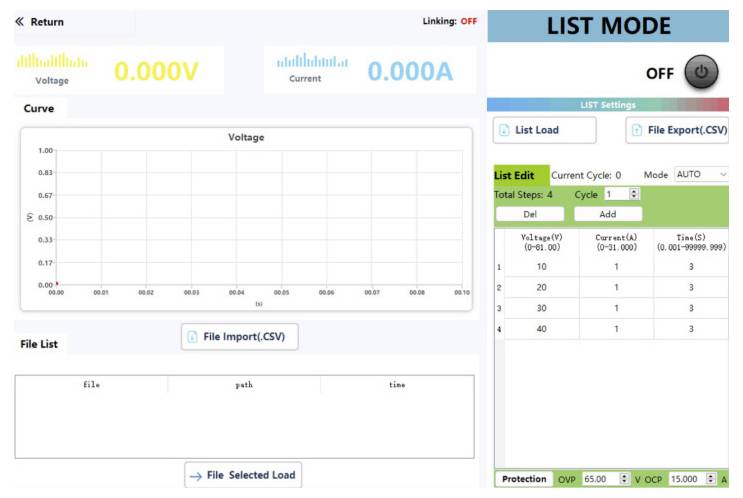

A list mode control screen for a programmable load shows 0.000V and 0.000A, a voltage curve graph, file import/export options, and a step list with voltage, current, and time entries.

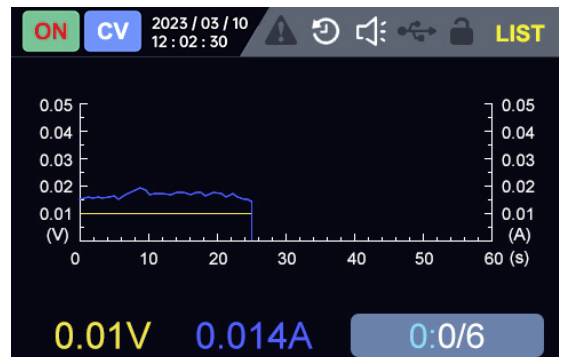

Digital measurement screen showing voltage and current over time; live plot stays near 0.015 V until dropping to 0 at about 25 seconds, with 'ON', 'CV', and 'LIST' indicators.

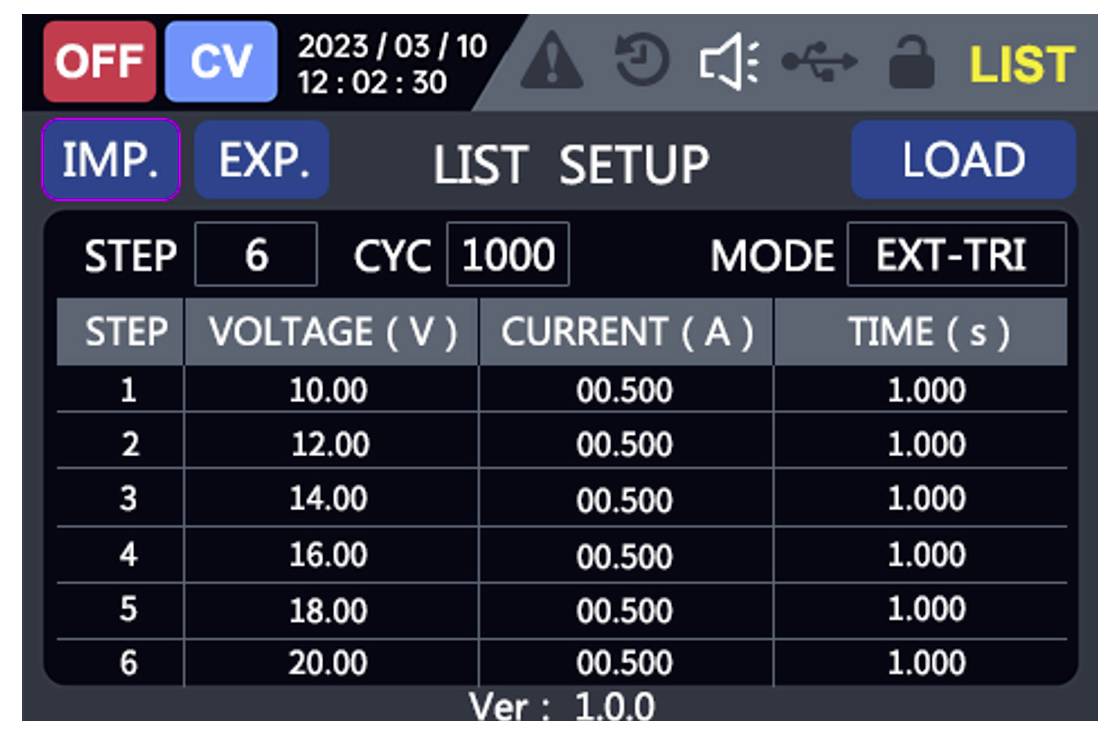

Touchscreen controller showing list setup for a 6-step program: cycle 1000, mode EXT-TRI, with voltage steps 10.00 to 20.00 V at 0.500 A for 1.000 s each.<br>

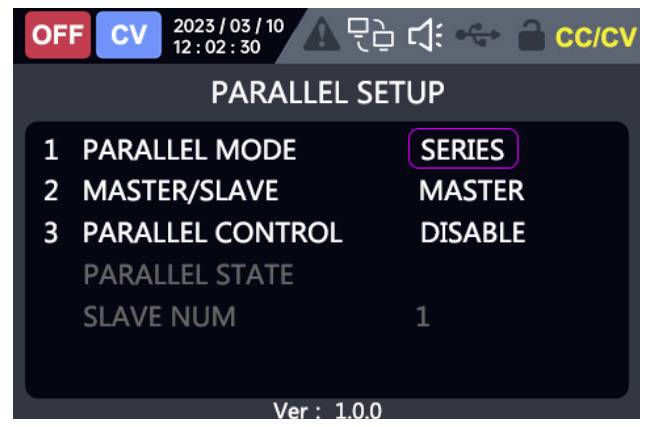

Device settings screen titled 'PARALLEL SETUP' showing parallel mode set to 'SERIES', master/slave 'MASTER', and parallel control 'DISABLE'.

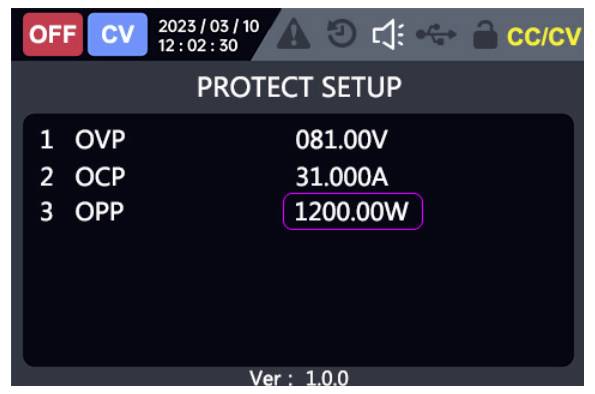

Power supply 'PROTECT SETUP' screen showing OVP 081.00V, OCP 31.000A, and OPP 1200.00W with OFF and CV status.

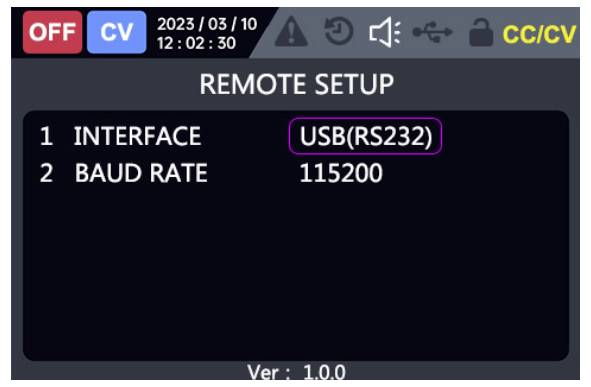

Camera remote setup menu showing interface set to USB(RS232) and baud rate 115200, with status OFF and CC/CV mode indicated.

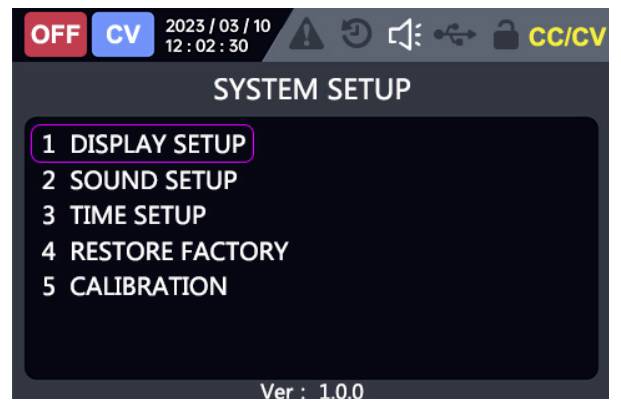

Camera system setup menu with 'Display Setup' selected; other options are 'Sound Setup,' 'Time Setup,' 'Restore Factory,' and 'Calibration.'

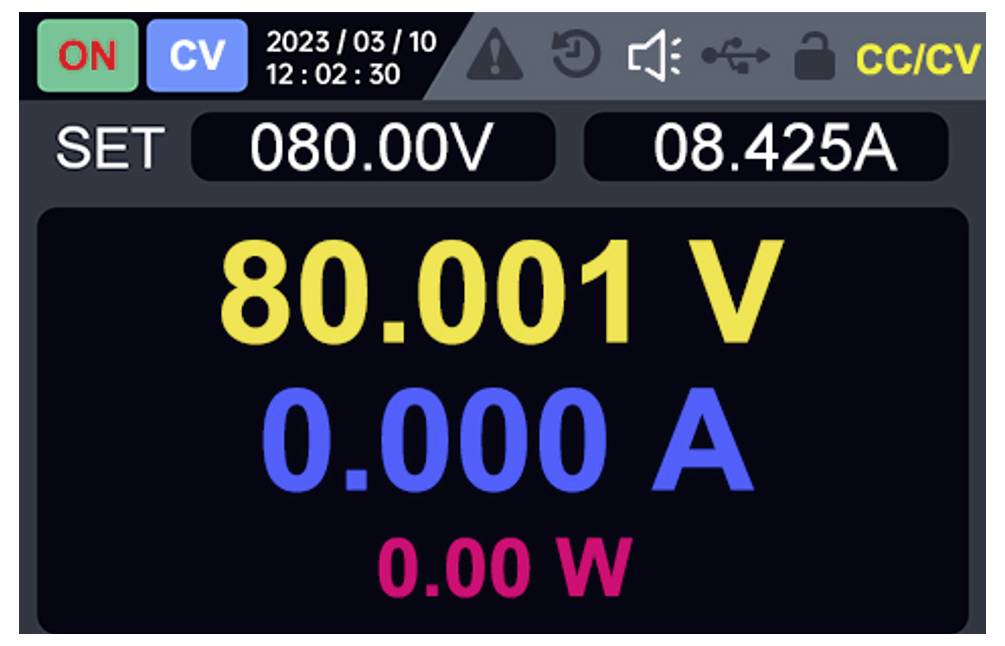

Digital power supply display showing ON, CC/CV mode, set to 080.00V and 08.425A, with output reading 80.001 V, 0.000 A, 0.00 W.<br>

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,089.00 / piece)

€ 2,089.00

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-2030 Power Supply 300 V 10 A 2000 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 300 V
Rated output current: 0 - 10 A
Max. output power: 2000 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Input: 85 - 265 VAC; 50 - 60 Hz, 10A max.
Resolution || Accuracy:
Voltage: 10 mV || ≤0.05% ±150mV
Current: 1 mA || ≤0.05% ±20mA

Type: VSPP-2030

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 2000 W

Technology: SMPSU

Interfaces: USB
RS485
LAN

Features: remote controlled
programmable

Dim: (L x W x H) 215.2 x 519.1 x 99.8 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output: USB

Output voltage (max.): 300 V DC

Output voltage (min.): 0 V DC

Max. output current: 10 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Width: 519.1 mm

Height: 99.8 mm

Length: 215.2 mm

Residual ripple: Voltage: ≤250 mVp-p
Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

Fast track dispatch on Wed 21 Oct

10 Piece(s)Conrad Electronic

This article

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,089.00^*

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

Fast track dispatch on Wed 21 Oct

21 Piece(s)Conrad Electronic

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,359.00^*

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

Fast track dispatch on Wed 21 Oct

44 Piece(s)Conrad Electronic

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,315.00^*

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

Fast track dispatch on Wed 21 Oct

15 Piece(s)Conrad Electronic

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,269.00^*

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

Fast track dispatch on Wed 21 Oct

10 Piece(s)Conrad Electronic

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,089.00^*

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

Fast track dispatch on Wed 21 Oct

10 Piece(s)Conrad Electronic

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,089.00^*

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

Fast track dispatch on Wed 21 Oct

10 Piece(s)Conrad Electronic

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,609.00^*

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

Fast track dispatch on Wed 21 Oct

14 Piece(s)Conrad Electronic

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,609.00^*

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

Fast track dispatch on Wed 21 Oct

5 Piece(s)Conrad Electronic

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,615.00^*

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

Fast track dispatch on Wed 21 Oct

17 Piece(s)Conrad Electronic

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,609.00^*

Documents & Downloads

Datasheet

Datasheet 3734642 VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, progr

User & Safety Instructions

User & Safety Instructions 3734642 VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, progr

Warranty Terms

Warranty Terms 3734642 VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, progr

Download

Download 3734642 VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, progr

Description

The VSPP-2030 specializes in higher voltage ranges and provides up to 300 V/DC with a total power of 2000 W. It is perfectly suited for testing processes that require a stable high voltage supply with simultaneous precise control.

Extended voltage range
With an output voltage of up to 300 V/DC, the device covers applications that go beyond the standard range of conventional laboratory power supplies, and thereby provides a current of up to 10 A.

Automated test procedures
Complex profiles can be run automatically via the programmable LIST-function with 100 steps. This saves time for recurring test cycles and increases reproducibility.

Rugged design
Despite the high output, the device can be handled at 6.8 kg. The switched-mode power supply technology ensures a high degree of efficiency and reliable power output in continuous operation.

Safe parallel operation
In case of increased power requirement parallel operation with an identical model is permissible. This enables a scalable solution for growing requirements in the commercial environment.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 2000 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
