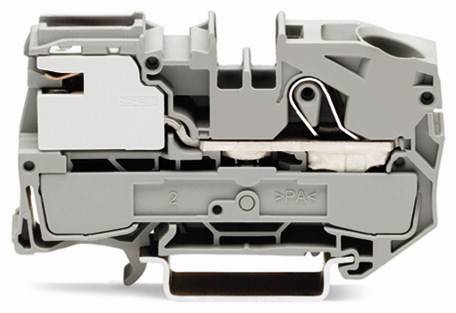

WAGO 2016-7111 PD terminal 12 mm Pull spring Grey 25 pc(s) Piece
Packaging type
Piece
Product type
PD terminal
Connection
Pull spring
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
1-conductor equipotential bonding terminal
- 2016 7111
- Industrial packaging, pack of 25
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
PD terminal
- Features
+ push-in spring bracket
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
4
- Clamp width
12 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
250 V
- Min. stripping length
18 mm
- Stripping length (max.)
18 mm
- Manufacturer part #
2016-7111
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
2016-7111
- Dim

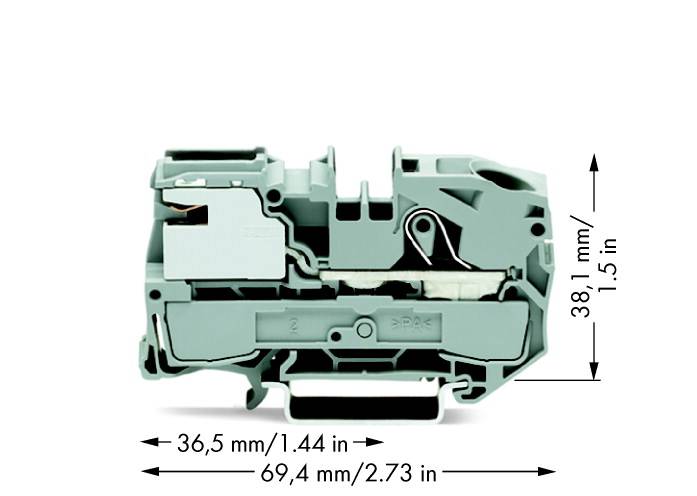

(L x W x H) 12 x 12 x 38.10 mm
- Width
12 mm
- Height
38.10 mm
- Length
12 mm
- Contamination level
3
- Weight
24.932 g
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 655717 WAGO 2016-7111 PD terminal 12 mm Pull spring Grey 25 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 655717 WAGO 2016-7111 PD terminal 12 mm Pull spring Grey 25 pc(s) Piece
