Name: WAGO 2060-1401/998-404 Spring-loaded terminal 0.75 mm² Number of pins 1 Light grey 1 pc(s)
Brand: WAGO
SKU: 1208164
Availability: InStock

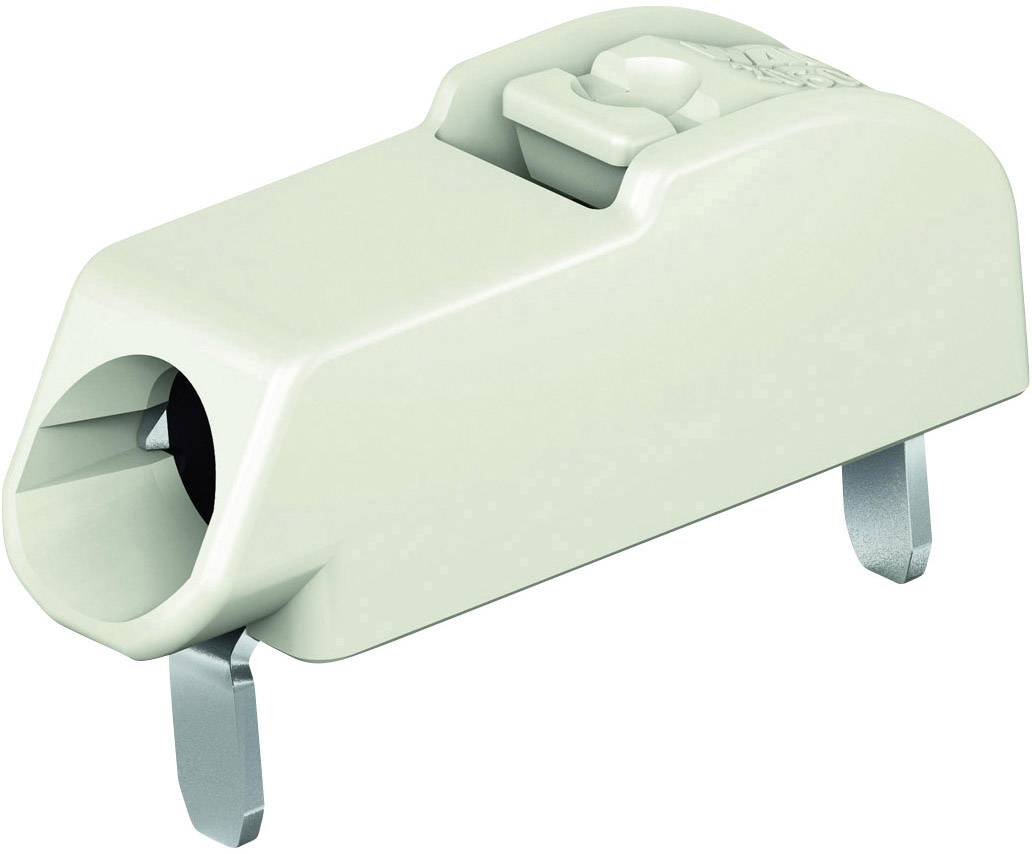

A white plastic adapter with two plugs and a round end is lying on its side.

Product type

Spring-loaded terminal

4 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

1125 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.50 / piece)

€ 3.50

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: 2060-1401/998-404

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®
+ actuator

CS: 4 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: 2060

Min. stripping length: 6 mm

Stripping length (max.): 7 mm

Connection: Spring-loaded terminal
Print

Nominal current: 9 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 9 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 0.75 mm²

Cross section (inflexible) (max.): 0.75 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 18

Contact material: Cu-alloy, tin plated

Factory colour: Light grey

Wire protection: Yes

Manufacturer part #: 2060-1401/998-404

Industrial packaging: Yes

Content: 1 pc(s)

Nominal voltage: 160 V

Width: 11.70 mm

Height: 6.90 mm

Length: 3.90 mm

Type: 2060 series

Material (details): PPA-GF enclosure · Tin-plated copper contacts

Documents & Downloads

Datasheet

Datasheet 1208164 WAGO 2060-1401/998-404 Spring-loaded terminal 0.75 mm² Number of pins 1 Light grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1208164 WAGO 2060-1401/998-404 Spring-loaded terminal 0.75 mm² Number of pins 1 Light grey 1 pc(s)

Description

THR PCB terminals with CAGE CLAMP®S S-connectivity and lever. Push-in connector for single and fine multi-strand wires with ferrules. Enables easy connecting/disconnecting of fine multi-strand cables via operating the built-in lever. Small (height: 5.6 mm).
