Name: WAGO 745-212 Spring-loaded terminal 4.00 mm² Number of pins 12 Grey 20 pc(s)
Brand: WAGO
SKU: 545459
Availability: BackOrder

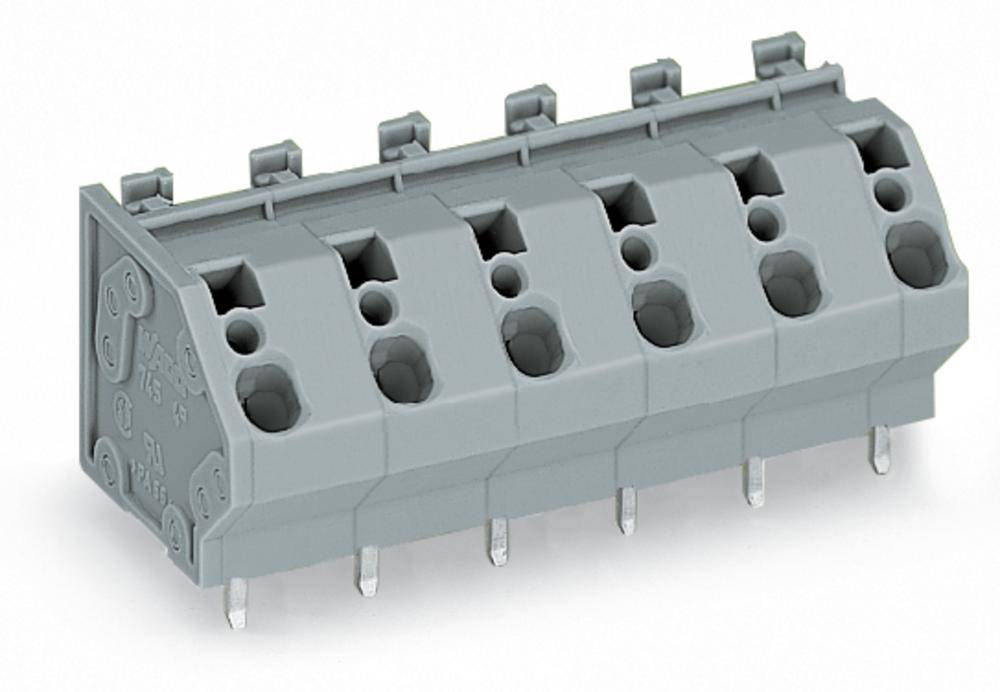

A grey electrical connector with six contact points, suitable for mounting on printed circuit boards.

'Current-carrying capacity curves for 2-, 4-, 6-, 12-pole conductors at ambient temperatures from 0 to 105°C. No reduction factors.'

Technical drawing of an electrical connector with detailed dimensional specifications in millimetres, showing both front and side views.

1/3

Product type

Spring-loaded terminal

10 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 20 pc(s))

Set(s)

Total (€ 9.00 / piece)

€ 179.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal strip

Content 20 pc(s)

Technical specifications

GDS-HOCHSTROMKL. 4 QMM RM 10 12-P.

Type: 745-212

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 10 mm

No. of rows: 1

Pins per row: 12

Number of pins: 12

Series: 745

Min. stripping length: 8 mm

Stripping length (max.): 9 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.08 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 4.00 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Factory colour: Grey

Wire protection: Yes

Manufacturer part #: 745-212

Industrial packaging: Yes

Content: 20 pc(s)

Nominal voltage: 1000 V

Width: 116.50 mm

Height: 23.00 mm

Length: 22.90 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Pins per row

Connection

Number of pins

Connector orientation

Product type

No. of rows

WAGO 745-102 Spring-loaded terminal 4.00 mm² Number of pins 2 Grey 230 pc(s)

Item no:545343

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

WAGO 745-102/005-000 Spring-loaded terminal 4.00 mm² Number of pins 2 Grey 100 pc(s)

Item no:545346

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

WAGO 745-103 Spring-loaded terminal 4.00 mm² Number of pins 3 Grey 160 pc(s)

Item no:545347

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

WAGO 745-104 Spring-loaded terminal 4.00 mm² Number of pins 4 Grey 120 pc(s)

Item no:545348

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 355.00^*

WAGO 745-104/005-000 Spring-loaded terminal 4.00 mm² Number of pins 4 Grey 80 pc(s)

Item no:545349

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

WAGO 745-105 Spring-loaded terminal 4.00 mm² Number of pins 5 Grey 100 pc(s)

Item no:545350

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 359.00^*

WAGO 745-105/005-000 Spring-loaded terminal 4.00 mm² Number of pins 5 Grey 60 pc(s)

Item no:545351

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 239.99^*

WAGO 745-106 Spring-loaded terminal 4.00 mm² Number of pins 6 Grey 80 pc(s)

Item no:545353

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 339.00^*

WAGO 745-107 Spring-loaded terminal 4.00 mm² Number of pins 7 Grey 70 pc(s)

Item no:545354

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 345.00^*

WAGO 745-108 Spring-loaded terminal 4.00 mm² Number of pins 8 Grey 60 pc(s)

Item no:545356

Dispatches on Fri 20 Nov

Conrad Electronic

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Documents & Downloads

Datasheet

Datasheet 545459 WAGO 745-212 Spring-loaded terminal 4.00 mm² Number of pins 12 Grey 20 pc(s)

User & Safety Instructions

User & Safety Instructions 545459 WAGO 745-212 Spring-loaded terminal 4.00 mm² Number of pins 12 Grey 20 pc(s)

Frequently Bought Together

(^*All information is plus legal VAT)

This article

WAGO 745-212 Spring-loaded terminal 4.00 mm² Number of pins 12 Grey 20 pc(s)

Conrad Electronic

€ 179.99^*

WAGO 210-720 1 pc(s)

Conrad Electronic

€ 8.99^*

Total price:

€ 188.98^*

Frequently Bought Together

(^*All information is plus legal VAT)

This article

WAGO 745-212 Spring-loaded terminal 4.00 mm² Number of pins 12 Grey 20 pc(s)

Conrad Electronic

€ 179.99^*

WAGO 210-720 1 pc(s)

Conrad Electronic

€ 8.99^*

Total price:

€ 188.98^*

What kind of PCB Terminals are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

WAGO 210-657 1 pc(s)

Conrad Electronic

€ 7.99^*

WAGO 793-5501 WMB-identification Cards

Conrad Electronic

€ 4.79^*

-75%

WAGO 248-501 264-series Terminal Block Accessory

Conrad Electronic

€ 14.99

€ 3.79^*

WAGO 210-720 1 pc(s)

Conrad Electronic

€ 8.99^*

WAGO 248-501/000-024 Violet 5 pc(s)

Conrad Electronic

€ 21.99^*

WAGO 248-501/000-023 Green 5 pc(s)

Conrad Electronic

€ 21.99^*

WAGO 248-501/000-017 Light green 5 pc(s)

Conrad Electronic

€ 21.99^*

WAGO 248-501/000-012 Orange 5 pc(s)

Conrad Electronic

€ 21.99^*

-24%

WAGO 248-501/000-007 Grey 5 pc(s)

Conrad Electronic

€ 28.99

€ 21.99^*

WAGO 248-501/000-006 Blue 5 pc(s)

Conrad Electronic

€ 21.99^*

WAGO 248-501/000-005 Red 5 pc(s)

Conrad Electronic

€ 21.99^*

WAGO 248-501/000-002 Yellow 5 pc(s)

Conrad Electronic

€ 21.99^*

WAGO 210-136 Red 50 pc(s)

Conrad Electronic

€ 385.00^*

WAGO 745-285 Comb connector Copper 200 pc(s)

Conrad Electronic

€ 194.99^*

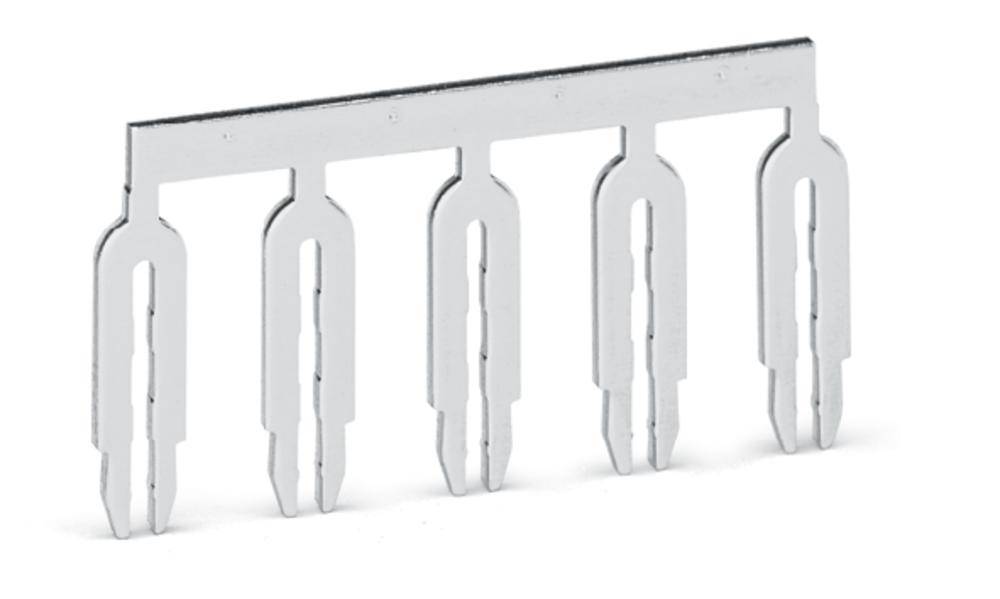

WAGO 745-284 Comb connector Copper 200 pc(s)
