WAGO 753-614 PLC supply module 753-614 1 pc(s)

Illustration of a modular connector system with multiple ports. Upper section shows a connector strip, lower section shows a base strip.

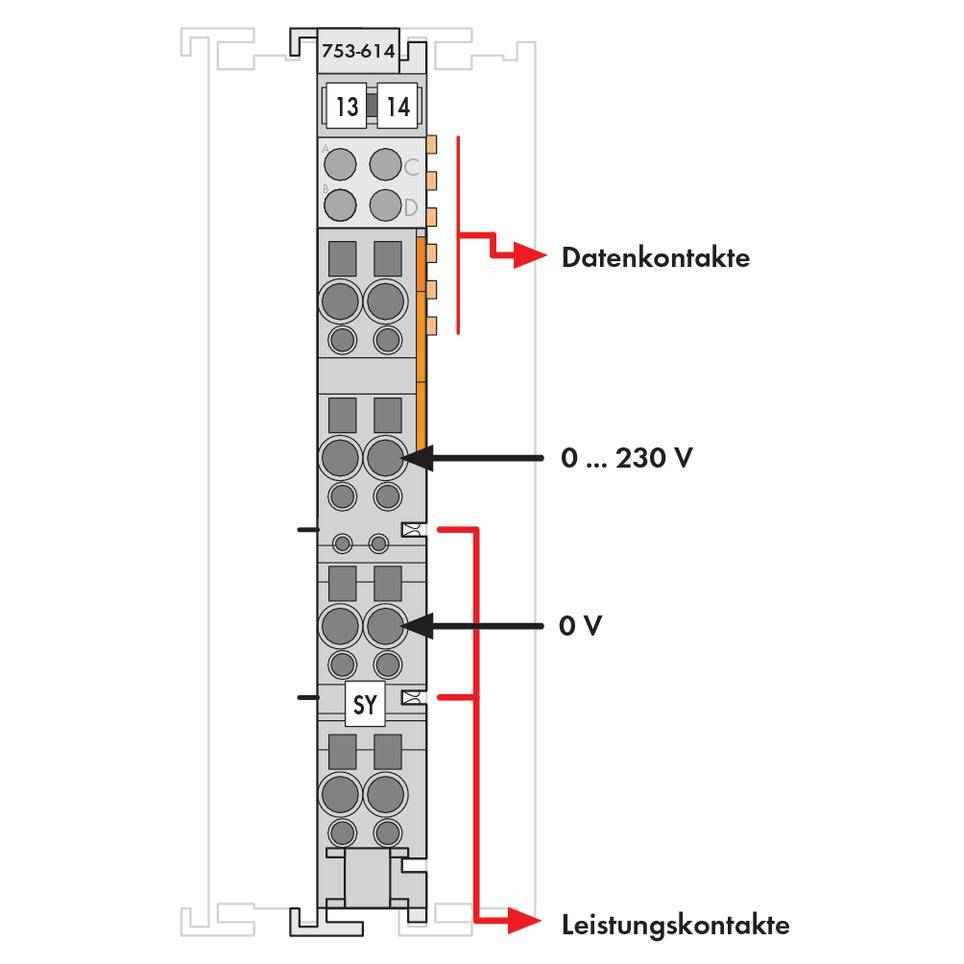

'Module 753-614' shows data contacts above, performance contacts below. Voltage 0-230 V, 0 V marked.

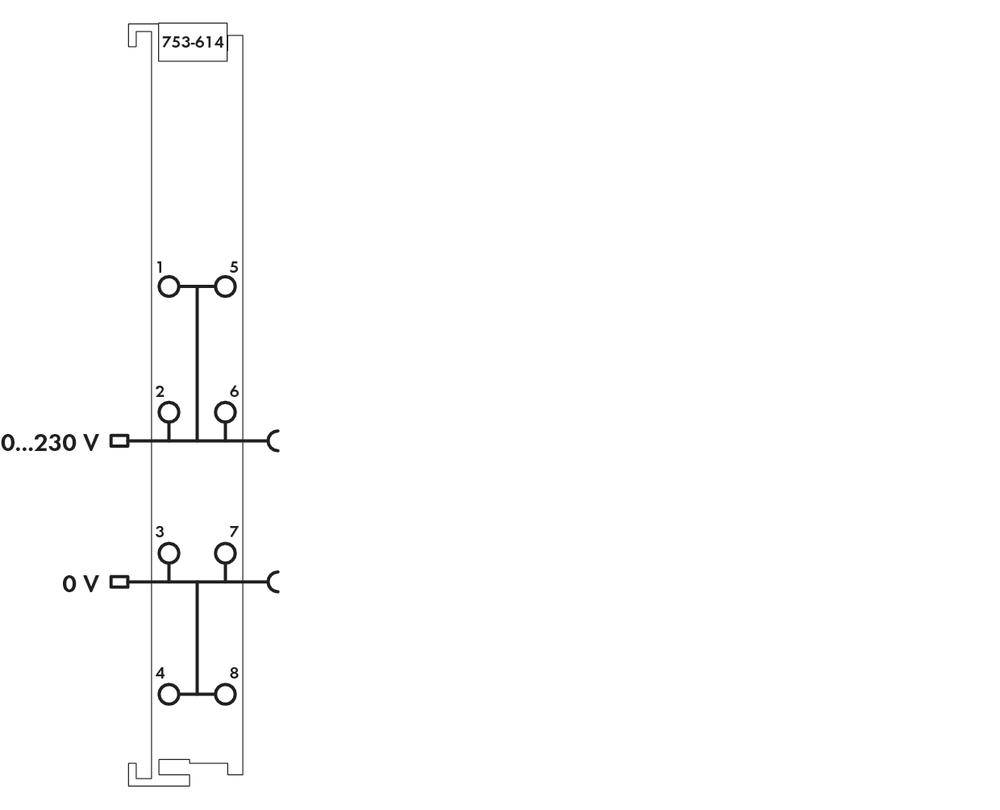

Circuit diagram of an electrical switch with two circuits. On the left, '0...230 V' and '0 V' are shown. Upper and lower connection points are numbered.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 27 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Potential Multiplication Module
Product type

PLC supply module

Type

753-614

Operating voltage

230 V DC

230 V AC

Height

64 mm

Width

12 mm

Max. ambient temperature

+55 °C

Min. ambient temperature

0 °C

IP20

Dim

(W x H x D) 12 x 64 x 100 mm

Manufacturer part #

753-614

Weight

35.8 g

Depth

100 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 192224 WAGO 753-614 PLC supply module 753-614 1 pc(s)

User & Safety Instructions

User & Safety Instructions 192224 WAGO 753-614 PLC supply module 753-614 1 pc(s)

Description

AC/DC 0-230 V, light gray.

This text is machine translated.

Hints

Accessories plug 753-110 is not included. Please order separately.
