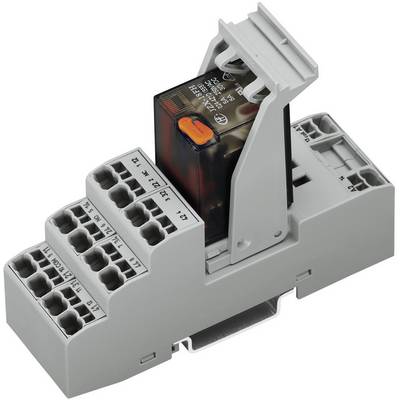

WAGO 858-518 Relay component Nominal voltage: 230 V AC Switching current (max.): 5 A 4 change-overs 1 pc(s)
Product type
Relay component
Contact type
4 change-overs
Nominal voltage
230 V AC
Switching voltage (max.)
30 V DC
Switching current (max.)
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
Only 1 Piece(s) available
Technical specifications
- Product type
Relay component
- Type
858-518
- Connection
Screw terminal
- Contact type
4 change-overs
- Contact material
AgCe + Au
- Nominal voltage
230 V AC
- Switching voltage (max.)
30 V DC
- Switching current (max.)
5 A
- Max. switching capacity
1250 VA
- Durability
20 x 106 switching cycles
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Length
97 mm
- Width
31 mm
- Height
73 mm
- Dim
(L x W x H) 97 x 31 x 73 mm
- Content
1 pc(s)
- Type
Plug base with industrial relay
- Nominal voltage (details)
230 V AC
- Nominal current (details)
50 mA
- Switching voltage
30 V DC
- Dielectric strength
(Contact/coil) 4 kV/(open contact) 1 kV
- Type
858-518
- Ambient temperature
-25 - +70 °C
Documents & Downloads
Datasheet
Datasheet 506588 WAGO 858-518 Relay component Nominal voltage: 230 V AC Switching current (max.): 5 A 4 change-overs 1 pc(s)
User & Safety Instructions
User & Safety Instructions 506588 WAGO 858-518 Relay component Nominal voltage: 230 V AC Switching current (max.): 5 A 4 change-overs 1 pc(s)
Description
For TS 35 rail mounting, connection via spring terminals.
Hints
For versions with gold contacts, the specified nominal current and switching voltage values should not be exceeded to avoid damaging the gold coating.
