WAGO Optocoupler relay 857-1494 0.1 A Switching voltage (max.): 60 V DC 1 pc(s)

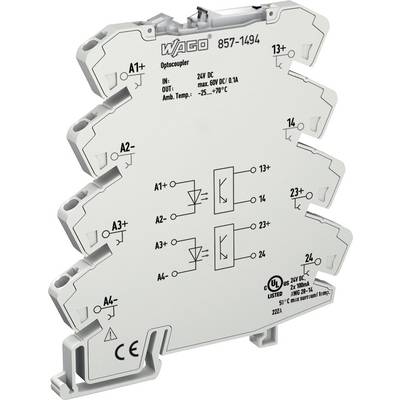

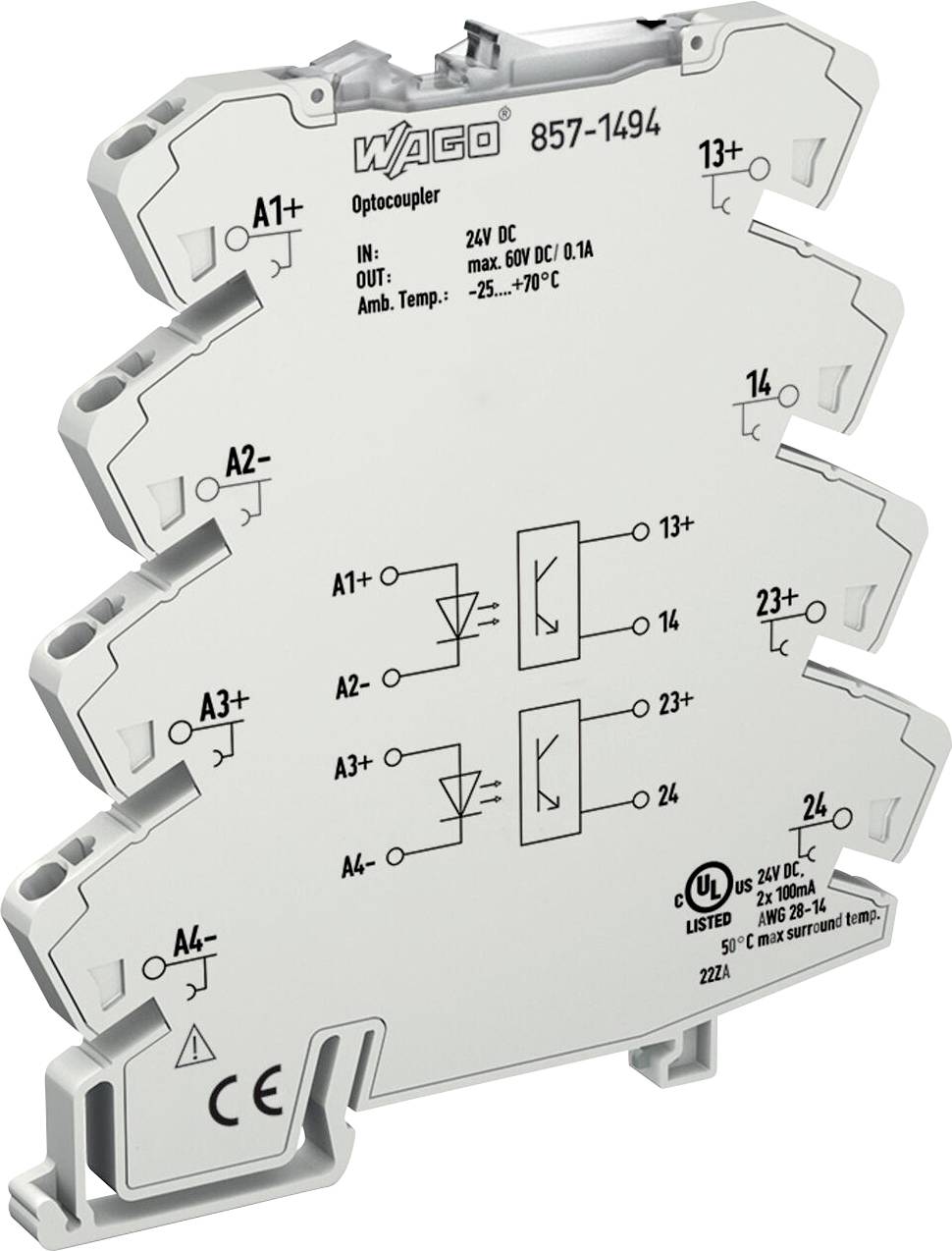

A white WAGO optocoupler module with input/output connection points labeled A1+, A2-, 13+, and 23-. Includes circuit diagrams and certification marks.

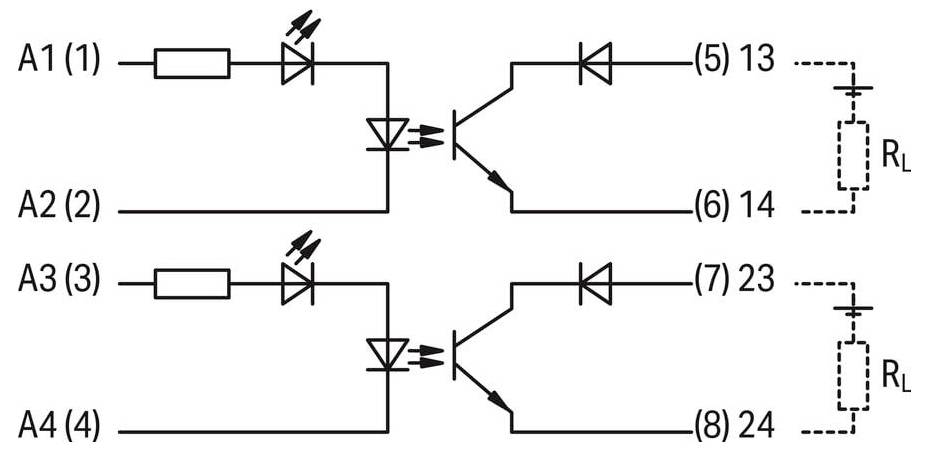

'Circuit diagram showing A1 and A2 inputs leading to LED, diode, connected to points (5) to 13. A3 and A4 inputs lead to similar setup to (7) then 23, both connected to load RL.'

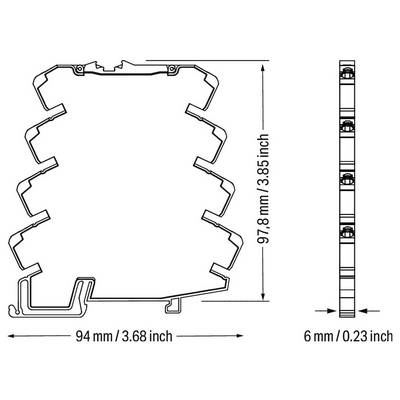

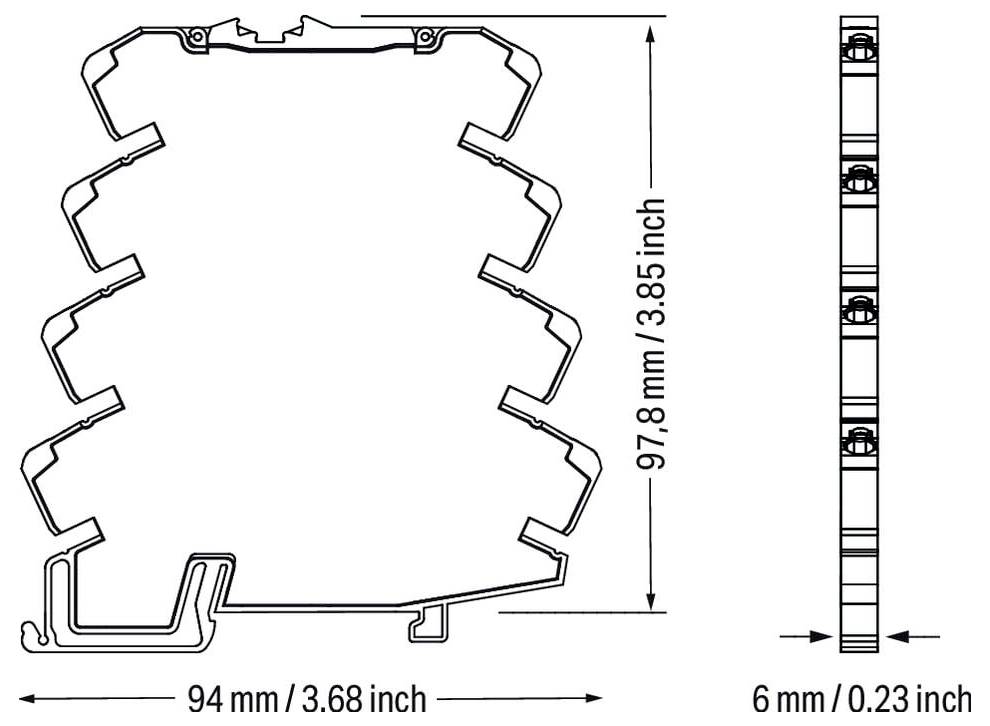

Technical drawing of a cross-sectional profile of an object with dimensions. Width: 94 mm (3.68 inches), height: 97.8 mm (3.85 inches), depth: 6 mm (0.23 inches).

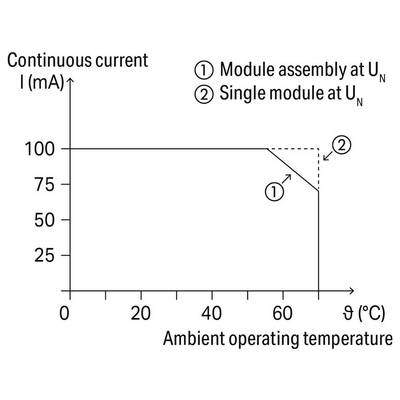

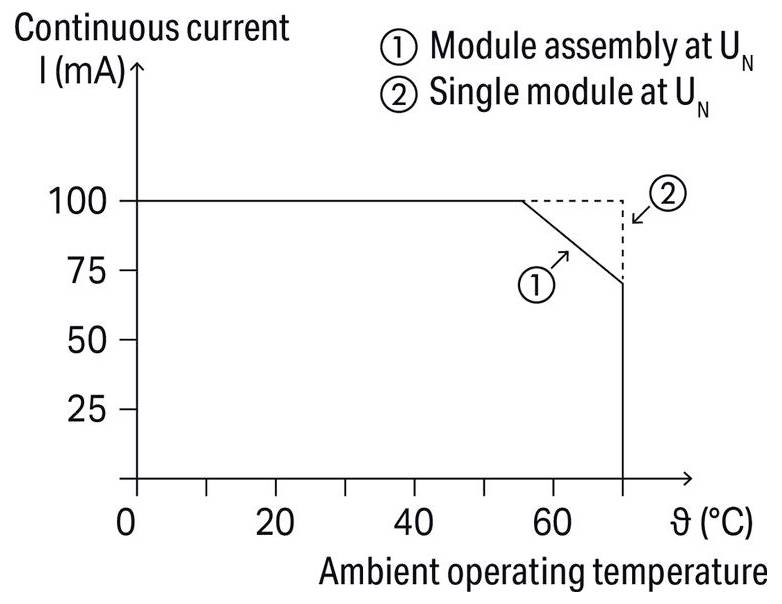

Line graph of continuous current versus ambient operating temperature. Two lines: 'Module assembly' declines starting at 60°C; 'Single module' steady at 100 mA.
1/4
Packaging type
Piece
Product type
Optocoupler relay
Switching voltage (max.)
60 V DC
Current load (max.)
0.1 A
Output voltage (max.)
60 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
23 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 44.99 / piece)
€ 44.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Optocoupler relay

Type

857-1494

Connection

Pull spring

Switching voltage (min.)

9 V DC

Switching voltage (max.)

60 V DC

Current load (max.)

0.1 A

Output voltage (min.)

9 V DC

Output voltage (max.)

60 V DC

Max. output current

0.1 A

Contact type

2 makers

Min. temperature

-25 °C

Max. temperature

+70 °C

Width

6 mm

Height

96 mm

Length

94 mm

Permanent current (max.)

0.1 A

Content

1 pc(s)

Durability

5 x 106 switching cycles

Nominal control voltage

24 V DC

Type

JUMPFLEX® optocoupler

Nominal voltage

24 V DC

Switching current (max.)

100 mA

Nominal voltage (details)

24 V DC

Nominal current (details)

0.1 A

Switching voltage

9 - 60 V DC

Dielectric strength

(Control/control circuit) 2.5 kV/(channel/channel) 4 kV

Type

857-1494

Ambient temperature

-25 - +70 °C

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 506546 WAGO Optocoupler relay 857-1494 0.1 A Switching voltage (max.): 60 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 506546 WAGO Optocoupler relay 857-1494 0.1 A Switching voltage (max.): 60 V DC 1 pc(s)

Description

For TS 35 rail mounting, connection via spring terminals.
