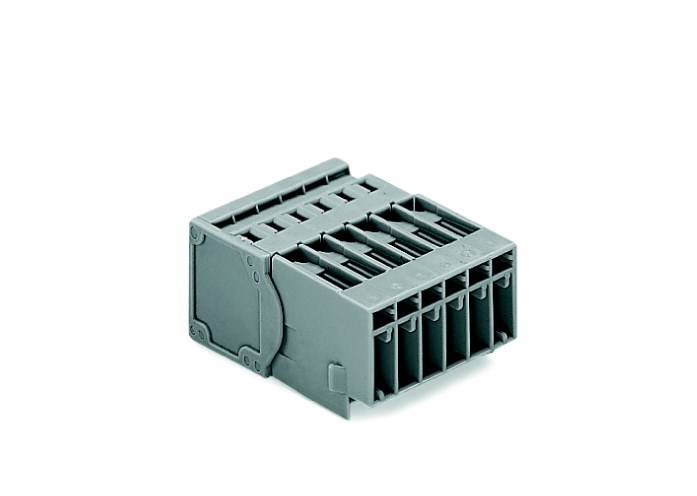

WAGO Socket housing cable 769 Total number of pins 6 Contact spacing: 5 mm 769-606 50 pc(s)
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
769
CS
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
X-COM ® SYSTEM pin strip
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 6
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
769
- Features
+ snap-in nibs
- CS
5 mm
- Pins per row
6
- Total number of pins
6
- Width
40.20 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
50 pc(s)
- AWG max.
12
- AWG (min.)
28
- Stripping length (max.)
9.00 mm

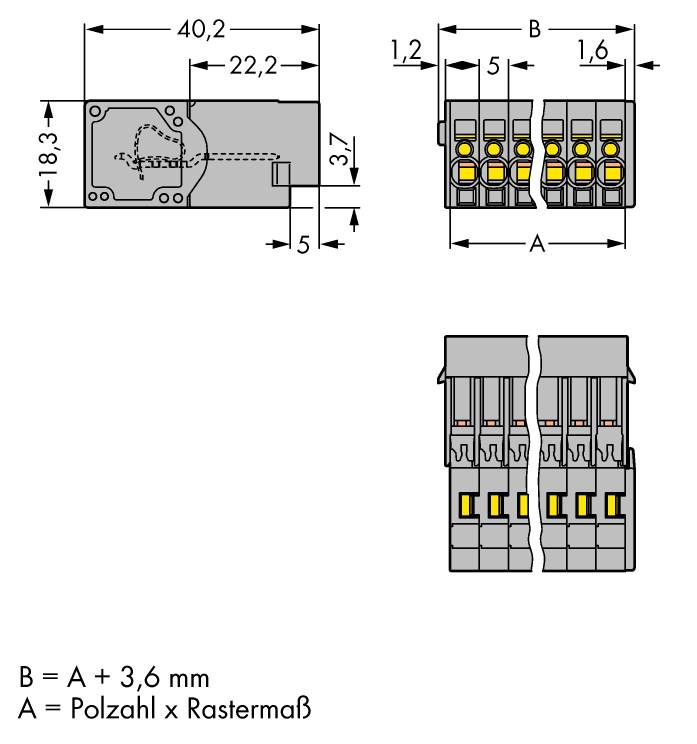

- Dim
(L x W x H) 18.30 x 40.20 x 33.60 mm
- Connection
Spring-loaded terminal
- Case material
PA 66
- Manufacturer part #
769-606
- Factory colour
Grey
- Industrial packaging
Yes
- Contact material
Copper alloy
- Connector contact surface
Tin plated
- Nominal voltage
500 V
- Height
33.60 mm
- Length
18.30 mm
- max. cross section
4 mm²
- Min. cross section
0.08 mm²
- Type
769-606
- UKCA
yes
