Name: WAGO Socket housing PCB 722 Total number of pins 12 Contact spacing: 7.50 mm 722-842/031-000 10 pc(s)
Brand: WAGO
SKU: 541122
Price: 87.99 EUR
Availability: BackOrder

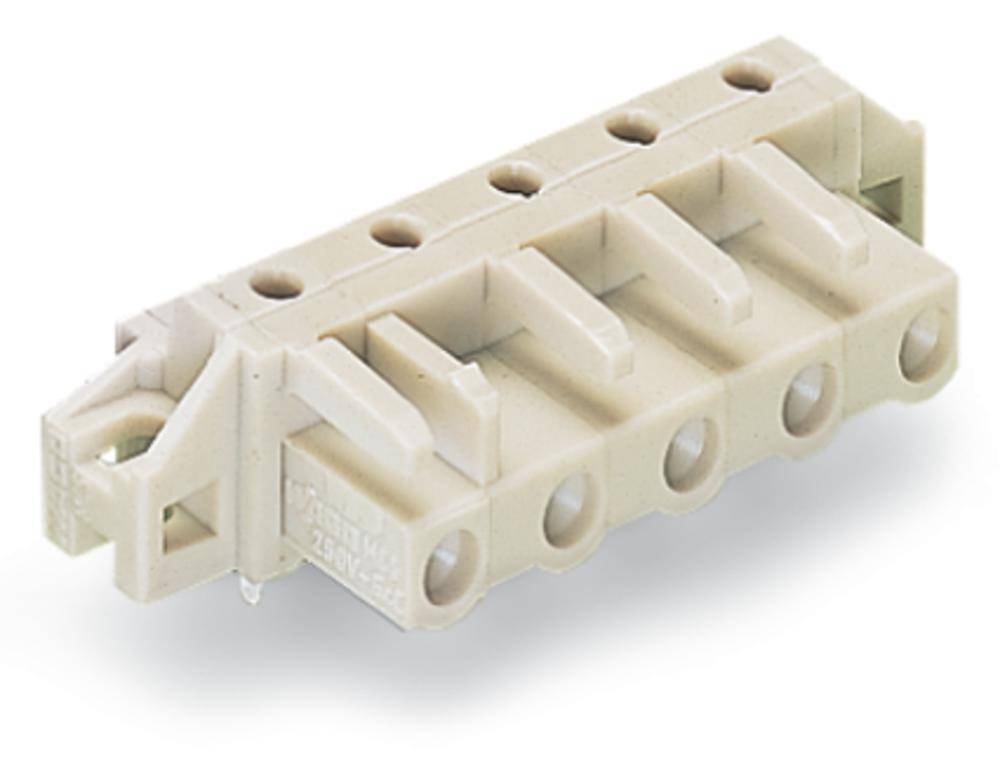

Beige terminal block with five holes, used for electrical connections.

'Derating Curve Diagram': Shows the current carrying capacity in amperes depending on the ambient temperature in degrees Celsius.

'Technical drawing of an electronic component with dimensions in millimetres. Top: 18.25 long, 9.8 high; Bottom: 7.5 wide, 4.9 high.'

1/3

Product type

Socket housing PCB

Connector type

Socket, horizontal mount

No. of rows

Series

722

7.50 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 8.80 / piece)

€ 87.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Female connector

Content: 10 pc(s)
No. of rows: 1
Total number of pins: 12

Technical specifications

FEDERL.ABGEW.EINLÖT. FS 7,50MM 12POL

Product type: Socket housing PCB

Connector type: Socket, horizontal mount

No. of rows: 1

Connector system: wire-to-board

Series: 722

Features: + sleeve

CS: 7.50 mm

Pins per row: 12

Total number of pins: 12

Width: 102.30 mm

Nominal current: 15 A

Nominal current - rounded value: 15 A

Content: 10 pc(s)

Dim: (L x W x H) 16.60 x 102.30 x 18.25 mm

Connection: Print

Case material: PA 66

Manufacturer part #: 722-842/031-000

Factory colour: Light grey

Industrial packaging: Yes

Contact material: Copper alloy

Board contact surface: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 630 V

Height: 18.25 mm

Length: 16.60 mm

Connector orientation: Parallel (to the PCB)

Type: 722-842/031-000

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 541122 WAGO Socket housing PCB 722 Total number of pins 12 Contact spacing: 7.50 mm 722-842/031-000 10 pc(s)

User & Safety Instructions

User & Safety Instructions 541122 WAGO Socket housing PCB 722 Total number of pins 12 Contact spacing: 7.50 mm 722-842/031-000 10 pc(s)

Description

Detailed flanges, 12-pin pitch 7.5 mm, connection error proof, with angled soldering pins, solder pin 0.6x1 mm, coding, with 2 tabs, for mounting.

This text is machine translated.

Description

Detailed flanges, 12-pin pitch 7.5 mm, connection error proof, with angled soldering pins, solder pin 0.6x1 mm, coding, with 2 tabs, for mounting.

This text is machine translated.
