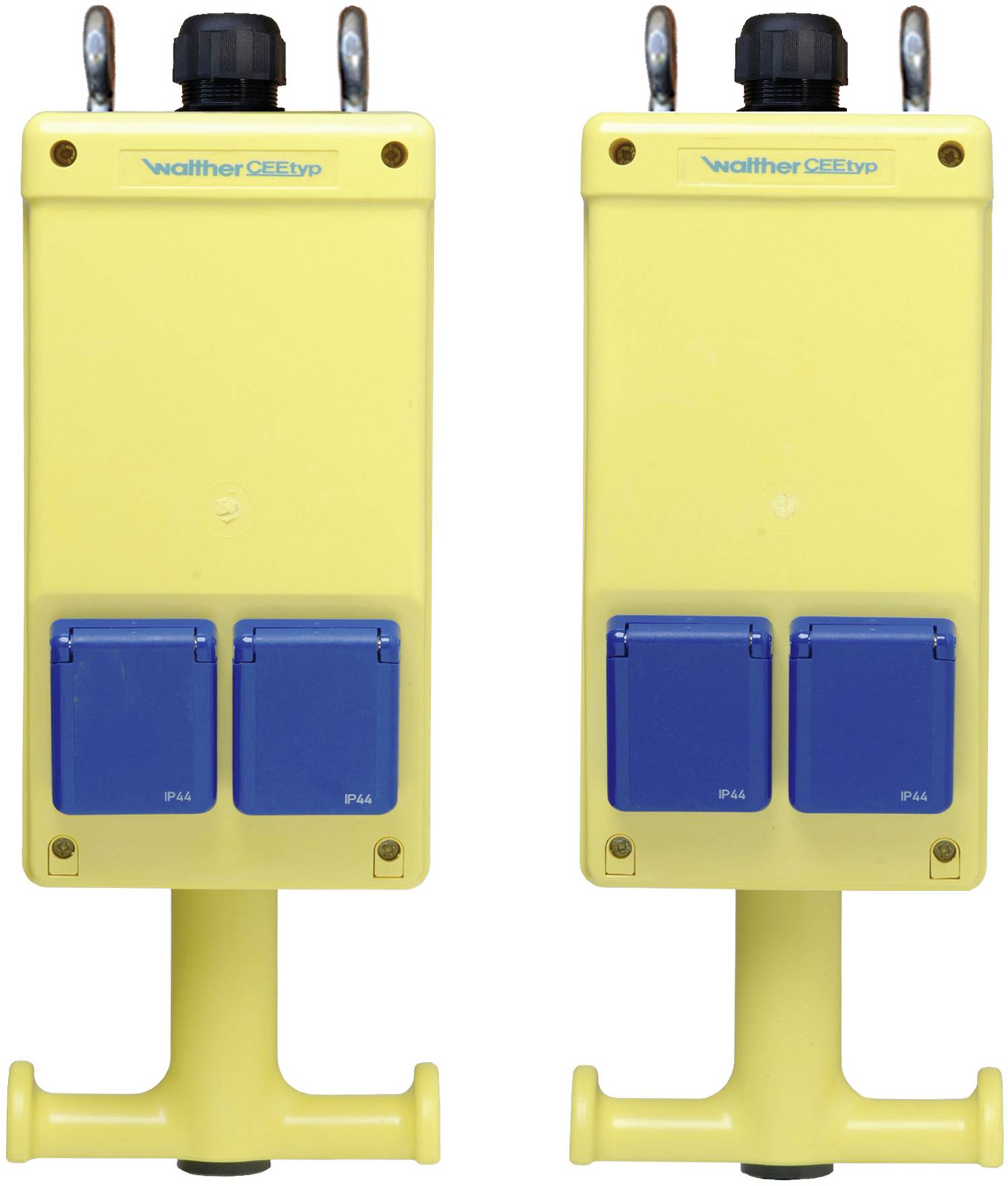

Walther Werke CEE suspended distributor 6H00002 6H00002
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Highlights & Details
Hanging box combination in: 16A
- Housing (6H0) made of silicon and halogen-free PC/ABS
- Color: RAL 1016/9005 -sulfur yellow/deep black-
- With 2 suspension eyes
- With grip hooks below
- II protection rating
Technical specifications
- Product type
CEE suspended distributor
- No. of CEE connectors
0
- No. of PG sockets
4
- Inputs
2
- Outputs
4
- Nominal output voltage
230 V
IP44
- Factory colour
Sulphur (semi-gloss)
Jet black (RAL 9005)
- Dim
(W x H x D) 136 x 374 x 195 mm
- Width
136 mm
- Height
374 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Number of pins
3
- Depth
195 mm
Documents & Downloads
Datasheet
Datasheet 2305614 Walther Werke CEE suspended distributor 6H00002 6H00002
Description
Hanging box combination in: 16A with 4 Schuko and connection up to 6qmm 3P
This text is machine translated.
This text is machine translated.
Features
- Connection:
- 1 cable gland M25 above
- 1 connection up to 6qmm 3P
- outputs/ protection:
- 4 earthing contact socket outlets 16A 3P 230V
