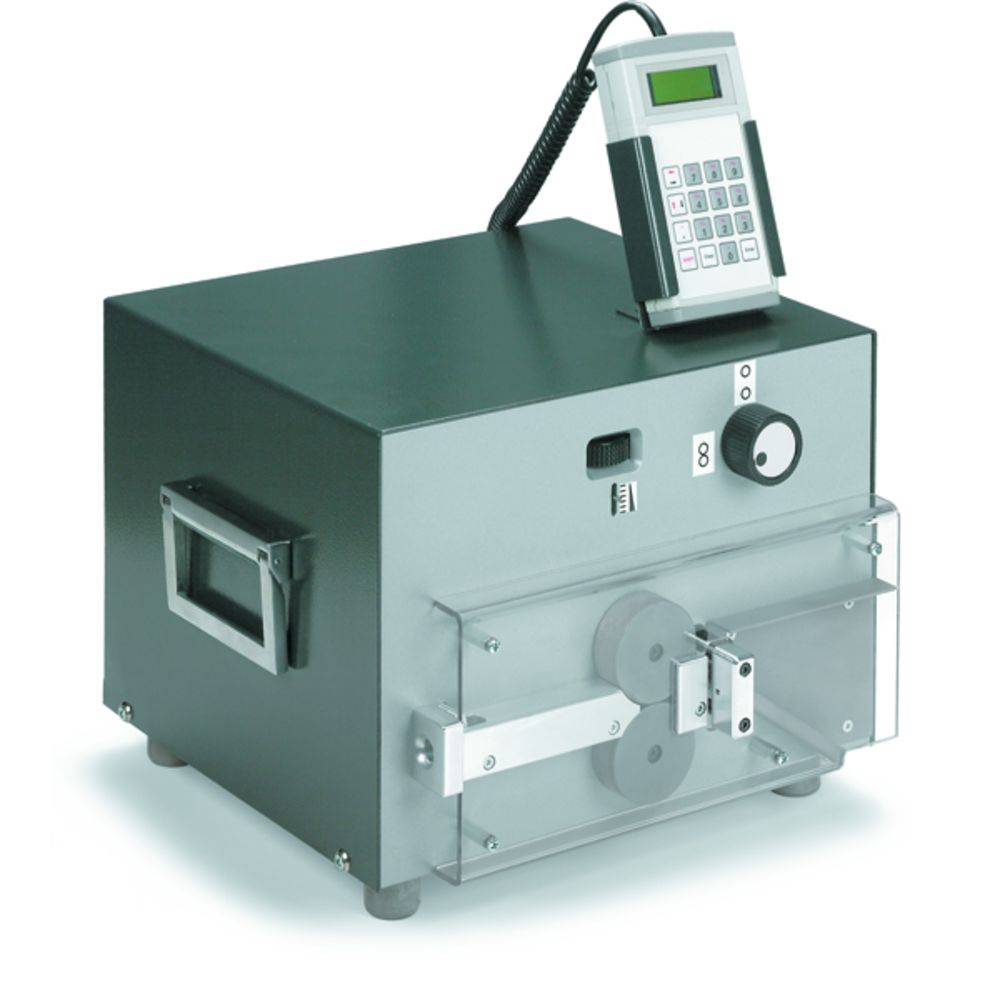

Weidmüller CUTFIX 8 9023100000 Automatic stripper 10 mm² (max)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 9,999.00 / piece)
€ 9,999.00
incl. VAT
14-day return policy included
Highlights & Details
Automatic stripper
- CUTFIX 8
Technical specifications
- Single conductor solid wire max. 2.5 mm²; single conductor stranded max. 10 mm²; Electrical connection: 100 - 240 V/50/65 Hz; connection power: 0.12kW; LCD display; slip correction in mm article specifically programmable; length prefix 1 - 999 999 mm; subset of pre-adjustable; USB interface
- Product type
Automatic stripper
- Suitable for
Single wires
- Working area (cross section)
10 mm² (max)
- Operating range (cross section) (max.)
10 mm²
- Length
360 mm
- Width
385 mm
- Weight
26.5 kg
Documents & Downloads
Datasheet
Datasheet 259311 Weidmüller CUTFIX 8 9023100000 Automatic stripper 10 mm² (max)
User & Safety Instructions
User & Safety Instructions 259311 Weidmüller CUTFIX 8 9023100000 Automatic stripper 10 mm² (max)
Description
Automatic stripper. Length code: 999999 - 1 mm, 230 V/50 Hz. For automatic cutting of single-wire conductors. High accuracy through precise servo DC drive. RS232 interface to control the ablangautomaten by IBM-compatible PC. Accompanying program allows management, documentation and transfer of the cutting jobs from the PC.
Hints
This text is machine translated.
What kind of Cable Strippers are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
€ 55.99*
