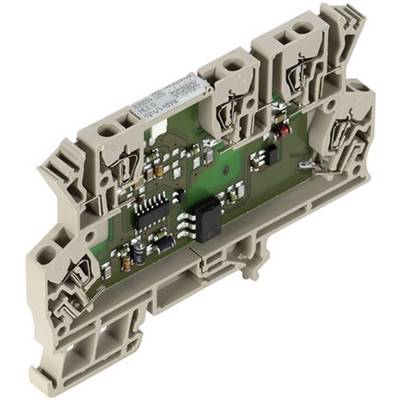

Weidmüller Optocoupler relay 8324610000-1 Switching voltage (max.): 5 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Optocoupler relay
Control voltage (min.)
24 V DC
Control voltage (max.)
24 V DC
Switching voltage (max.)
5 V DC
Type
MCZ O 24VDC
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Storage temperature, max. 60 °C.
- Storage temperature, min.: -40 °C
- Status indicator: Green LED
- Switch-on delay: 1 µs (at 20 V DC)
- Switch-off delay 2.5 µs (at 28 V DC)
- Short-circuit proof: No.
- Color: beige
- Rated voltage: 300 V
- Over voltage category III
- Creepage and air distance control side - load side: ≥ 5.5 mm
- Surge voltage 6 kV (1.2/50 µs)
- Humidity: 40 °C / 93 % rel. humidity, no condensation
- MTTF: 3,036 Years
- On/off voltage: 16.8 V / 16.5 V DC
- Protection circuit: Reverse polarity protection
- Protection circuit, load side: Diode
- Mounting rail TS 35
- Flammability class according to UL 94: V-0
- Pollution level: 2
- Electrical strength control side - load side: 1 kVeff / 1 s.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 1.5 mm²
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 16
- Conductor cross-section, single-wire, min.: 0.5 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min. 0.5 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Conductor cross-section, fine strand, min. (AWG) AWG 26
- Conductor cross-section, fine strand, max. (AWG): AWG 16
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min.: 0.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.6 x 3.5 mm
- Max. Switching frequency (DC control voltage): 100 kHz
- Product type
Optocoupler relay
- Type
MCZ O 24VDC
- Connection
Pull spring
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Control current (max.)
5 mA
- Switching voltage (min.)
5 V DC
- Switching voltage (max.)
5 V DC
- Max. switching capacity
112 mW
- Contact type
1 maker
- Min. temperature
-25 °C
- Max. temperature
+40 °C
IP20
- Width
6.1 mm
- Height
91 mm
- Depth
63.2 mm
- Weight
23.9 g
- Permanent current (max.)
0.008 A
- Content
1 pc(s)
- Connection
Tension spring 0.5 – 1.5 mm²
Documents & Downloads
Datasheet
Datasheet 506856 Weidmüller Optocoupler relay 8324610000-1 Switching voltage (max.): 5 V DC 1 pc(s)
Description
At 6 mm wide, the MCZ O optocoupler is among the slimmest of its kind. It is equipped with a tension spring connection as well as the integrated input/output cross connection.
