Name: Weipu SP2111 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)
Brand: Weipu
SKU: 738031
Availability: InStock

Weipu SP2111 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)-0

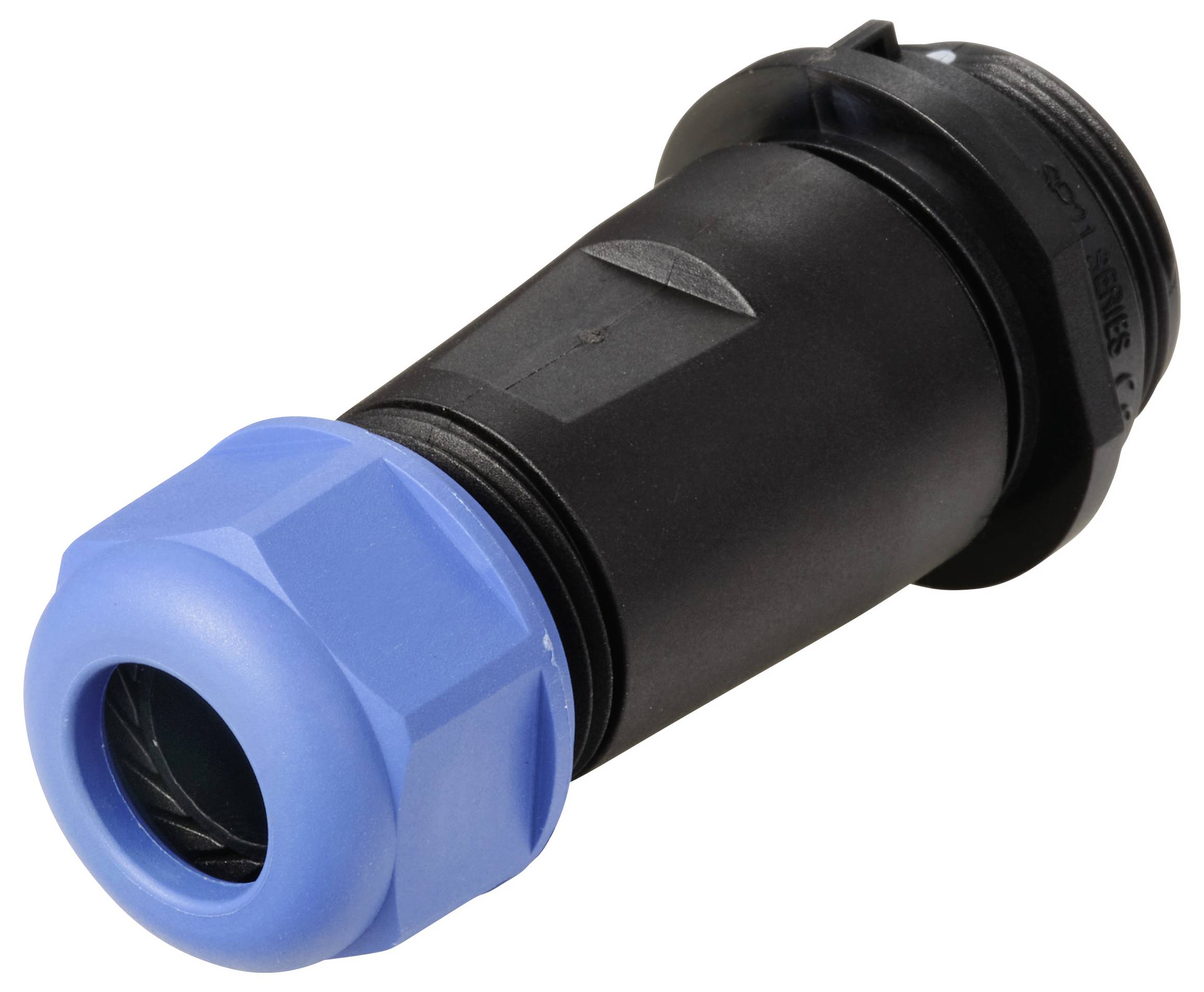

'Black and blue cylindrical connector with multiple metal contacts for electrical connections.'

Weipu SP2111 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)-2

Weipu SP2111 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)-3

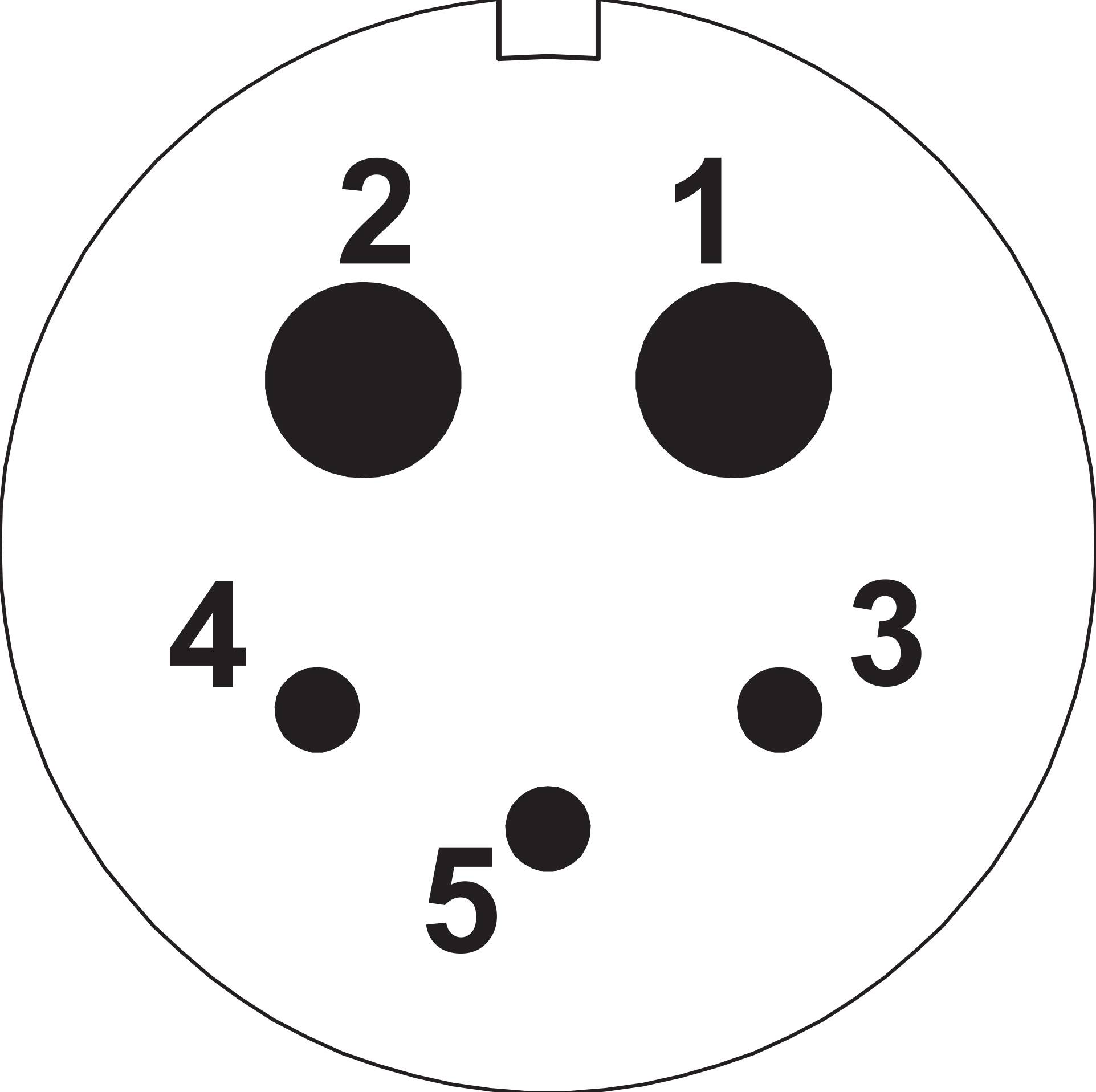

Cable plug diagram with a circular arrangement of five numbered connections.

1/5

Product type

Bullet connector

Connector type

Socket, straight

Connection

Soldering

Content

1 pc(s)

Nominal current - rounded value

13 A

Datasheet (PDF)

Fast track dispatch on Fri 23 Oct

26 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

IP68 plug connector series SP2111/S5 B II

Our service for you

Technical specifications

Type: SP2111 / S 5B II

Product type: Bullet connector

Connector type: Socket, straight

Connection: Soldering

Content: 1 pc(s)

Max. temperature: +125 °C

Nominal current: 13 A

Min. temperature: -55 °C

Nominal current - rounded value: 13 A

Seal: Screw-type locking

Nominal voltage: 200 V

Contact material: Gold plated

Cable Ø (max.): 12 mm

Cable Ø up to: 7 mm

Case material: PPS

: 18/11

Connection angle: 180°

Manufacturer part #: SP2111 / S 5B II

Cable Ø range: 7 - 12 mm

max. cross section: 4.17 mm²

Cross-section range: 4.17 mm² (max)

RoHS-compliant: Yes

: IP68

Series: SP21

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Connector type

Total no. of pins

Nominal voltage

Weipu SP2110 / P 12 II Bullet connector Plug, straight Total number of pins: 12 Series (round connectors): SP21 1 pc(s)

Item no:736847

Fast track dispatch on Fri 23 Oct

256 Piece(s)Conrad Electronic

5 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Weipu SP2110 / P 2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SP21 1 pc(s)

Item no:736559

Fast track dispatch on Fri 23 Oct

1354 Piece(s)Conrad Electronic

30 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 3 I Bullet connector Plug, straight Total number of pins: 3 Series (round connectors): SP21 1 pc(s)

Item no:736592

Fast track dispatch on Fri 23 Oct

250 Piece(s)Conrad Electronic

30 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 4 I Bullet connector Plug, straight Total number of pins: 4 Series (round connectors): SP21 1 pc(s)

Item no:736639

Fast track dispatch on Fri 23 Oct

87 Piece(s)Conrad Electronic

30 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 5 II Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP21 1 pc(s)

Item no:736672

Available soon

Conrad Electronic

30 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 5B II Bullet connector Plug, straight Series (round connectors): SP21 1 pc(s)

Item no:736706

Fast track dispatch on Fri 23 Oct

26 Piece(s)Conrad Electronic

30 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Weipu SP2110 / P 5C II Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP21 1 pc(s)

Item no:736746

Fast track dispatch on Fri 23 Oct

114 Piece(s)Conrad Electronic

15 A

Plug, straight

250 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Weipu SP2110 / P 7 II Bullet connector Plug, straight Total number of pins: 7 Series (round connectors): SP21 1 pc(s)

Item no:736780

Fast track dispatch on Fri 23 Oct

205 Piece(s)Conrad Electronic

15 A

Plug, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Weipu SP2110 / P 9 II Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SP21 1 pc(s)

Item no:736811

Fast track dispatch on Fri 23 Oct

40 Piece(s)Conrad Electronic

5 A

Plug, straight

250 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Weipu SP2110 / S 12 II Bullet connector Socket, straight Total number of pins: 12 Series (round connectors): SP21 1 pc(s)

Item no:737463

Fast track dispatch on Fri 23 Oct

98 Piece(s)Conrad Electronic

5 A

Socket, straight

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Documents & Downloads

Datasheet

Datasheet 738031 Weipu SP2111 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)

User & Safety Instructions

User & Safety Instructions 738031 Weipu SP2111 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)

Description

The round plug-in connector series SP 21 with screw lock provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.

This text is machine translated.
