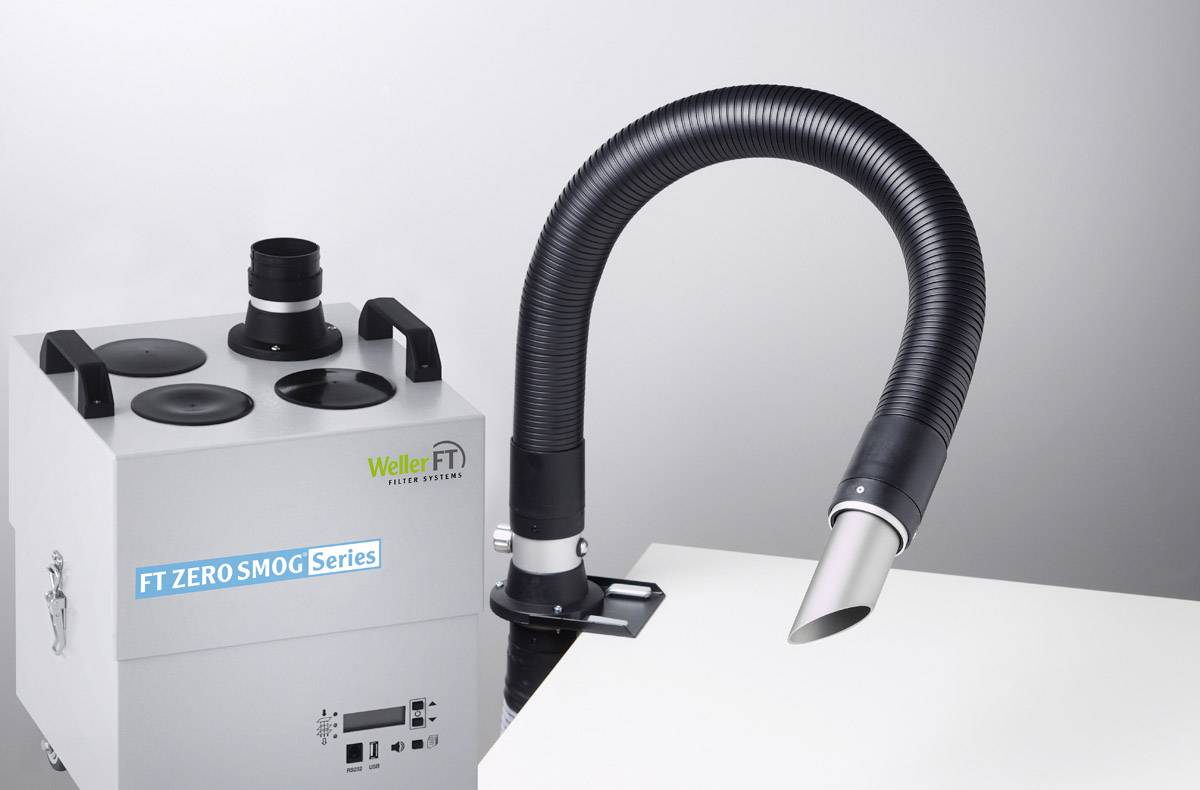

Weller Zero Smog 4V Kit 1 Düse Soldering fume extractor 230 V AC 175 W 230 m³/h
EAN:
Part number:
Item no:
Number
Total (€ 2,057.98 / piece)
€ 2,057.98
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Zero Smog 4 V kit 1 nozzle
- Suction device for use in up to 4 jobs
- electronic filter control with visual and audible alarm function
- efficiency test via the USB port
- roles for wide range of applications can be used with
- remote control via RS232 connection
- low noise level
Technical specifications
- Pre-filter: Fine dust filter class F7
- Compact filter: Particle Filter H13, wide-band gas filter (50% activated carbon/50% Chemisorb)
- Max. Vacuum (Pa): 2,700
- Fuse: T1.0A.
- Product type
Soldering fume extractor
- Max. power
175 W
- Operating voltage
230 V AC
- Air flow rate
230 m³/h
- Dim
(L x W x H) 345 x 325 x 505 mm
- Weight
19 kg
- Features
Antistatic
- Width
325 mm
- Height
505 mm
- Length
345 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1385254 Weller Zero Smog 4V Kit 1 Düse Soldering fume extractor 230 V AC 175 W 230 m³/h
User & Safety Instructions 1385254 Weller Zero Smog 4V Kit 1 Düse Soldering fume extractor 230 V AC 175 W 230 m³/h
Description
The extraction device ZS4V kit 1 nozzle is easy to install and operate. Specially developed as a compact, central system, the Kit complete with a flexible hose, exhaust arm, bevelled nozzle, valve and bracket and is ready for immediate use in the workplace. A high-performance, maintenance-free turbines guarantees a continuous smoke suction with a maximum flow rate of up to 230 m3/h. The CFC function automatically regulates the turbine speed and optimizes the required suction force and reduces energy consumption.
