1/3

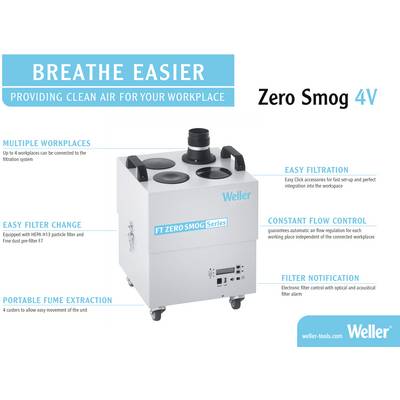

Weller Zero Smog 4V Soldering fume extractor 220 V DC, 240 V DC 275 W 230 m³/h
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3,139.00 / piece)
€ 3,139.00
incl. VAT
14-day return policy included
Highlights & Details
Zero Smog 4 V kit 2 funnel
- Suction device for use in up to 4 jobs
- electronic filter control with visual and audible alarm function
- efficiency test via USB connection
- 4 rollers for wide range of applications can be used with
- remote control via RS232 connection
- low noise level
Technical specifications
- Max. Vacuum (Pa): 2,700
- Pre-filter: Fine dust filter class F7
- Compact filter: Particle Filter H13, wide-band gas filter (50% activated carbon/50% Chemisorb)
- USB interface
- RS232-interface
- Fuse: T1.0A.
- Product type
Soldering fume extractor
- Max. power
275 W
- Operating voltage
220 V DC
240 V DC
- Air flow rate
230 m³/h
- Max. noise generation
48 dB(A)
- Dim
(L x W x H) 345 x 325 x 505 mm
- Weight
19 kg
- Features
Antistatic
- Width
325 mm
- Height
505 mm
- Length
345 mm
Documents & Downloads
Datasheet
Datasheet 1381169 Weller Zero Smog 4V Soldering fume extractor 220 V DC, 240 V DC 275 W 230 m³/h
User & Safety Instructions
User & Safety Instructions 1381169 Weller Zero Smog 4V Soldering fume extractor 220 V DC, 240 V DC 275 W 230 m³/h
User & Safety Instructions 1381169 Weller Zero Smog 4V Soldering fume extractor 220 V DC, 240 V DC 275 W 230 m³/h
Description
The Extraction Unit Zero Smog 4 V kit 2 funnel is easy to install and operate. Specially developed as a compact, central system, the Kit complete with two flexible hoses, hose connections, suction arms, funnel nozzles, valves and holders and is ready for immediate use in the workplace. A high-performance, maintenance-free turbines guarantees a continuous smoke suction with a maximum flow rate of up to 230 m³/h. The CFC function automatically regulates the turbine speed and optimizes the required suction force and reduces energy consumption.
Hints
This text is machine translated.
